Test Description

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2.  This step tests the condition of the Navigation Antenna

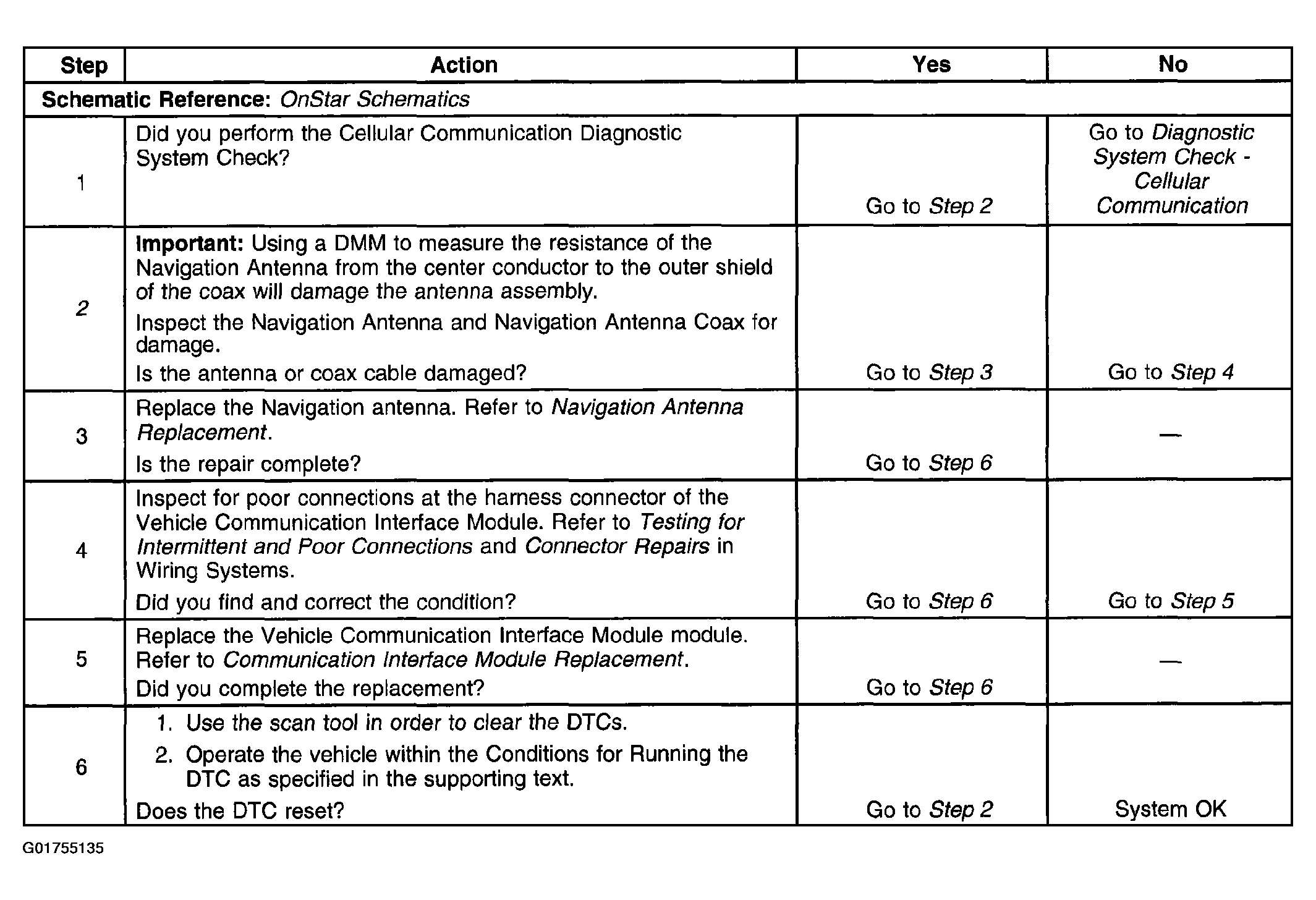

    Fig 1: Identifying DTC B2483 or B2484 Diagnostic Table
    G01755135Courtesy of GENERAL MOTORS CORP.
