Transmission Reassembly: Notes

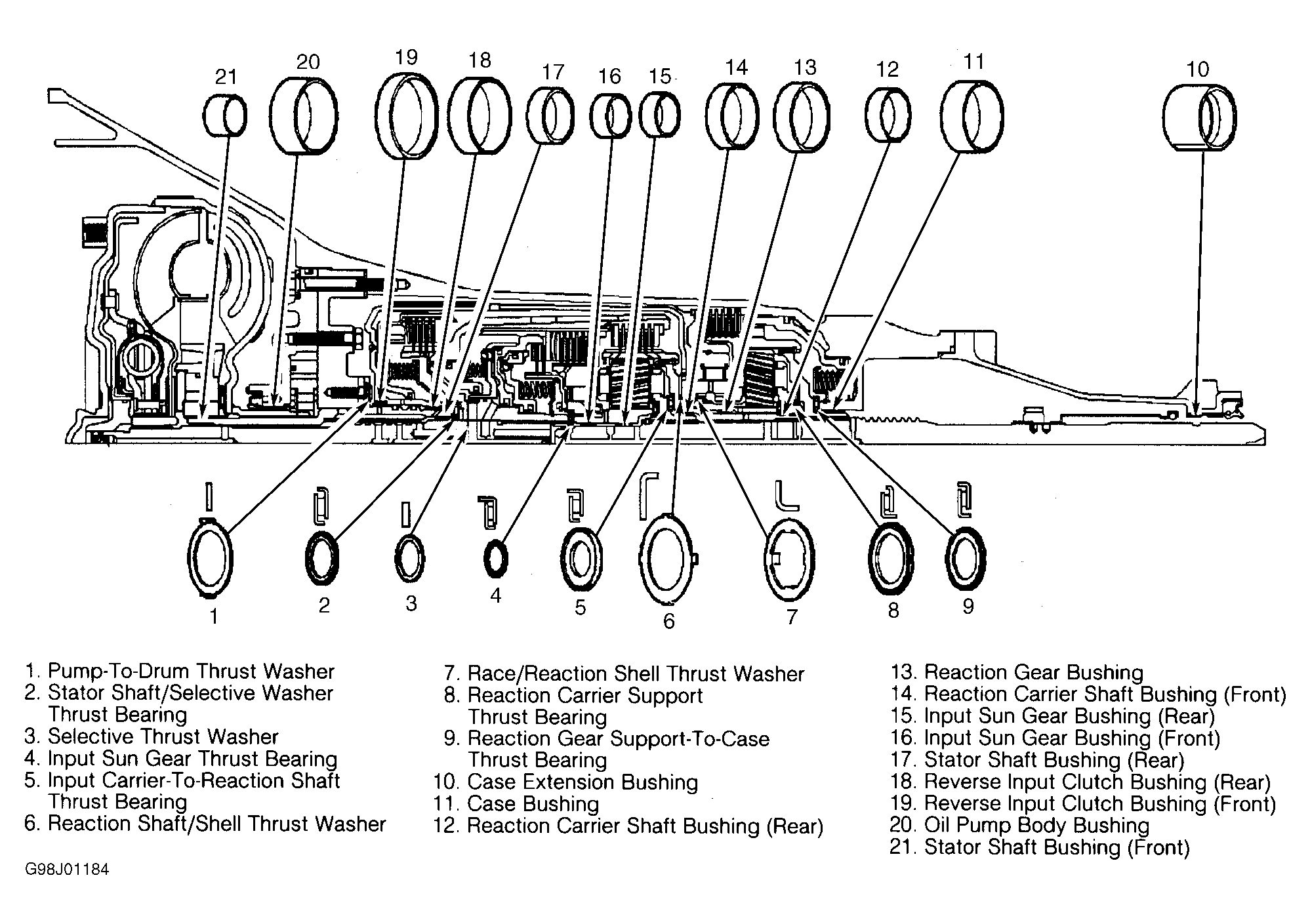

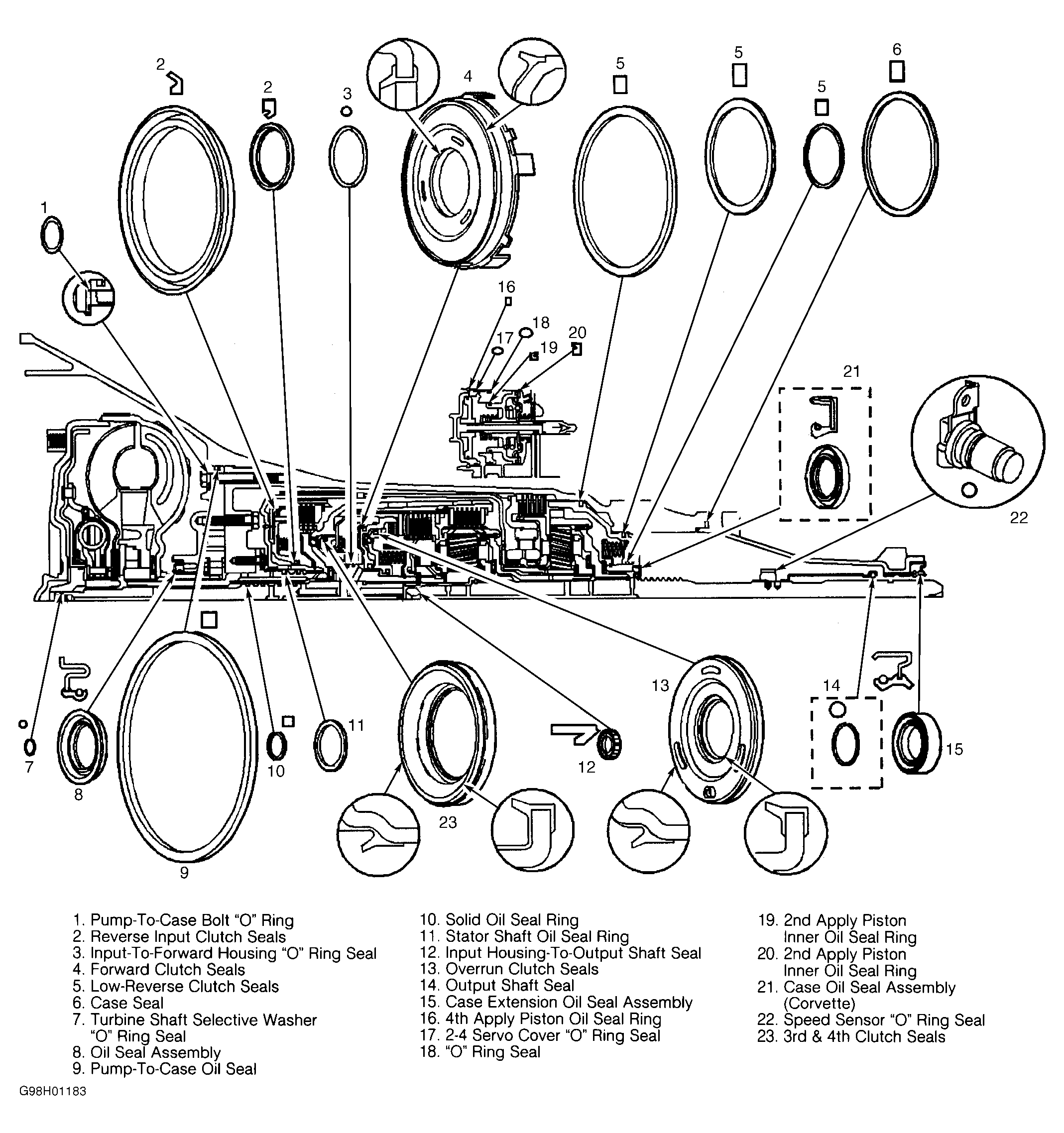

NOTE: To identify bushing, seal, thrust bearing and thrust washer locations and direction, refer to appropriate illustration. See Figure and Figure .
