Magnasteer

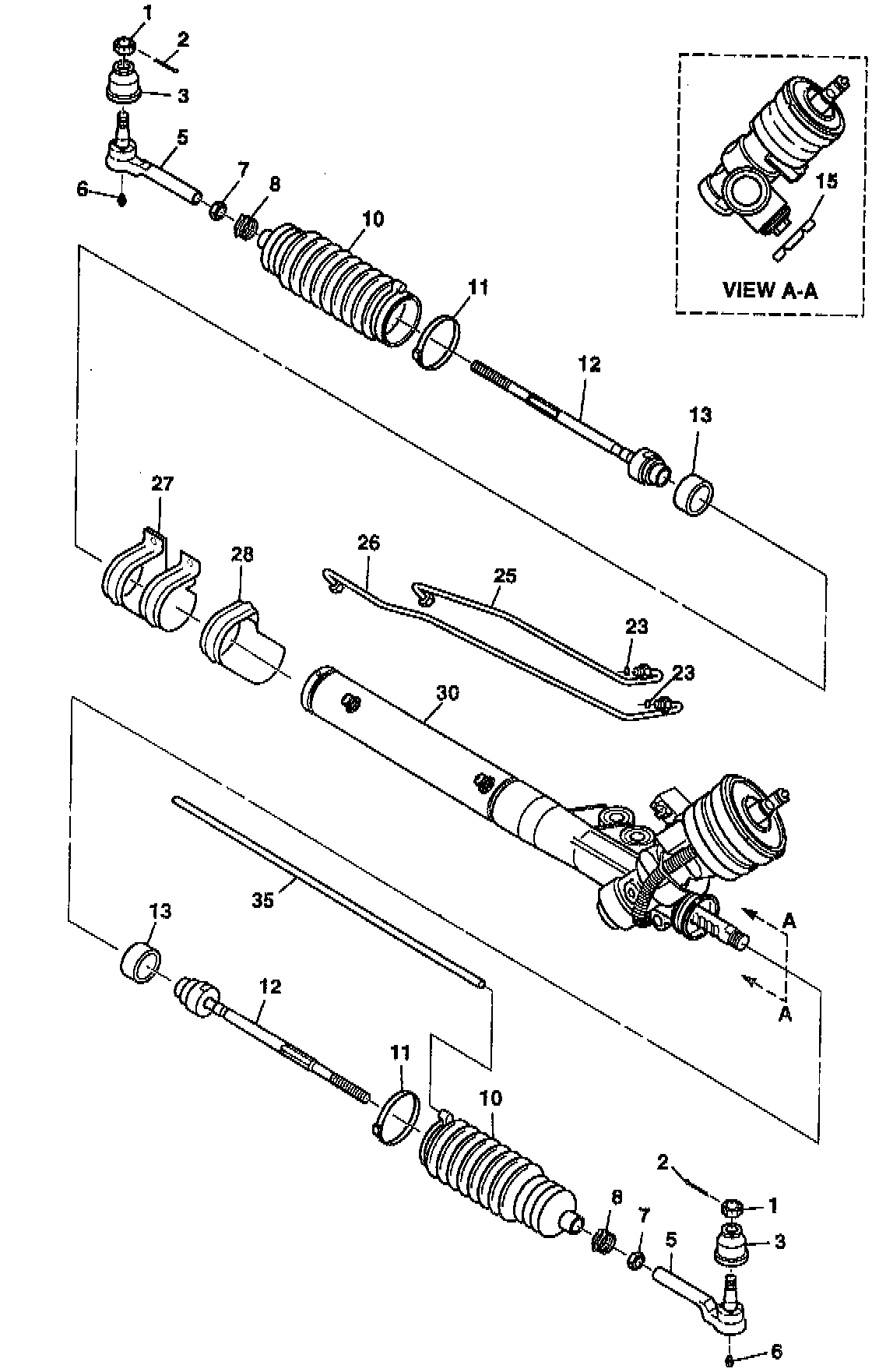

Inner Tie Rod (12): 100 N.m (74 ft. lbs.)
Outer Tie Rod Lock Nut: 70 N.m (52 ft. lbs.)
Power Steering Gear Outlet Hose:
Clamp to Pump and Steering Gear: 1.7 N.m (15 inch lbs.)
Tie Bar Nuts: 37 N.m (27 ft. lbs.)
Tie Rod Lock Nuts (Front): 64 N.m (47 ft. lbs.)
