Throttle Position Sensor: Locations

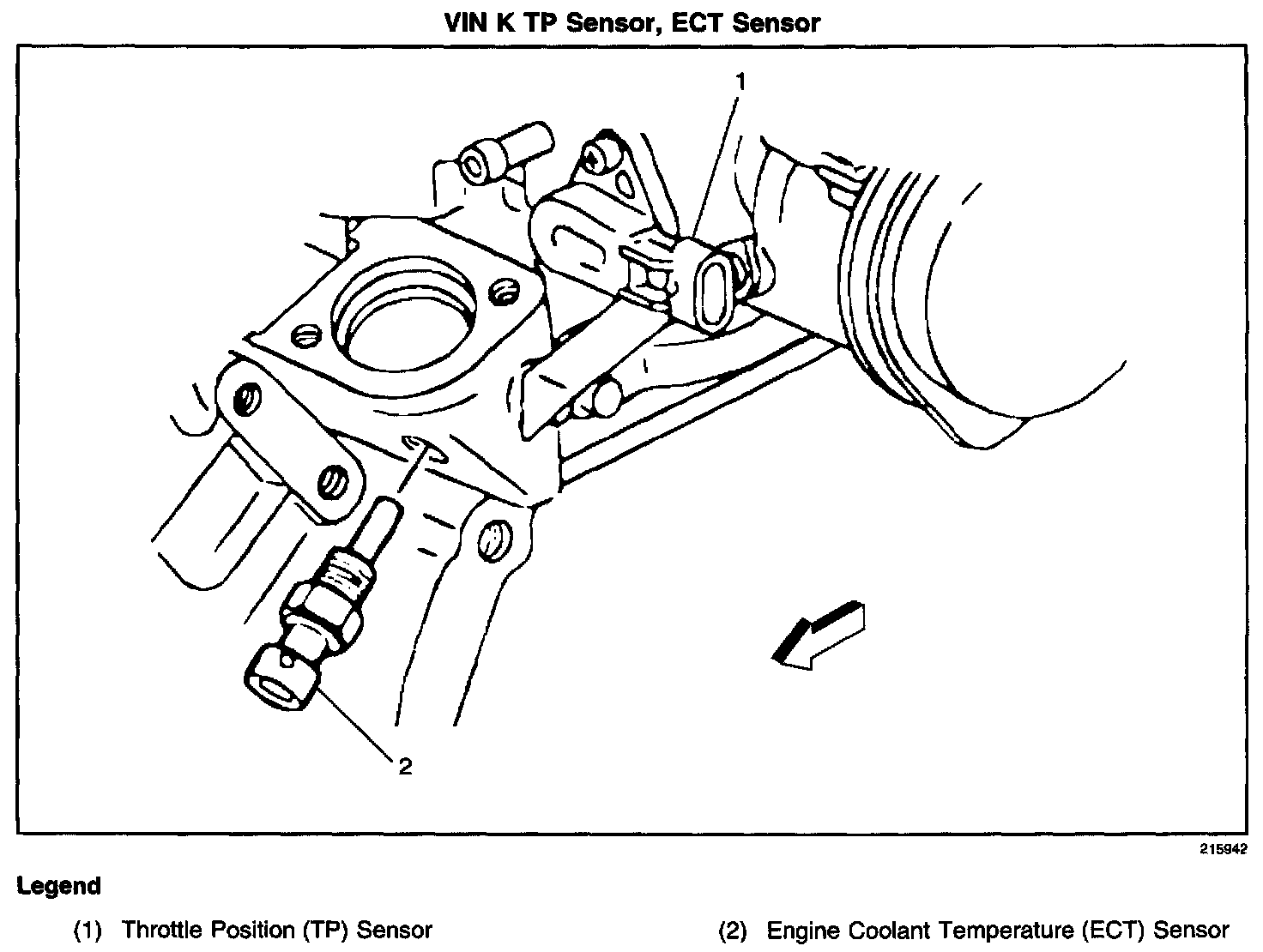

Front View:




Locations View:




Locations View:




Center left hand of the engine, on the front of the throttle body
