Blower Motor Control Module

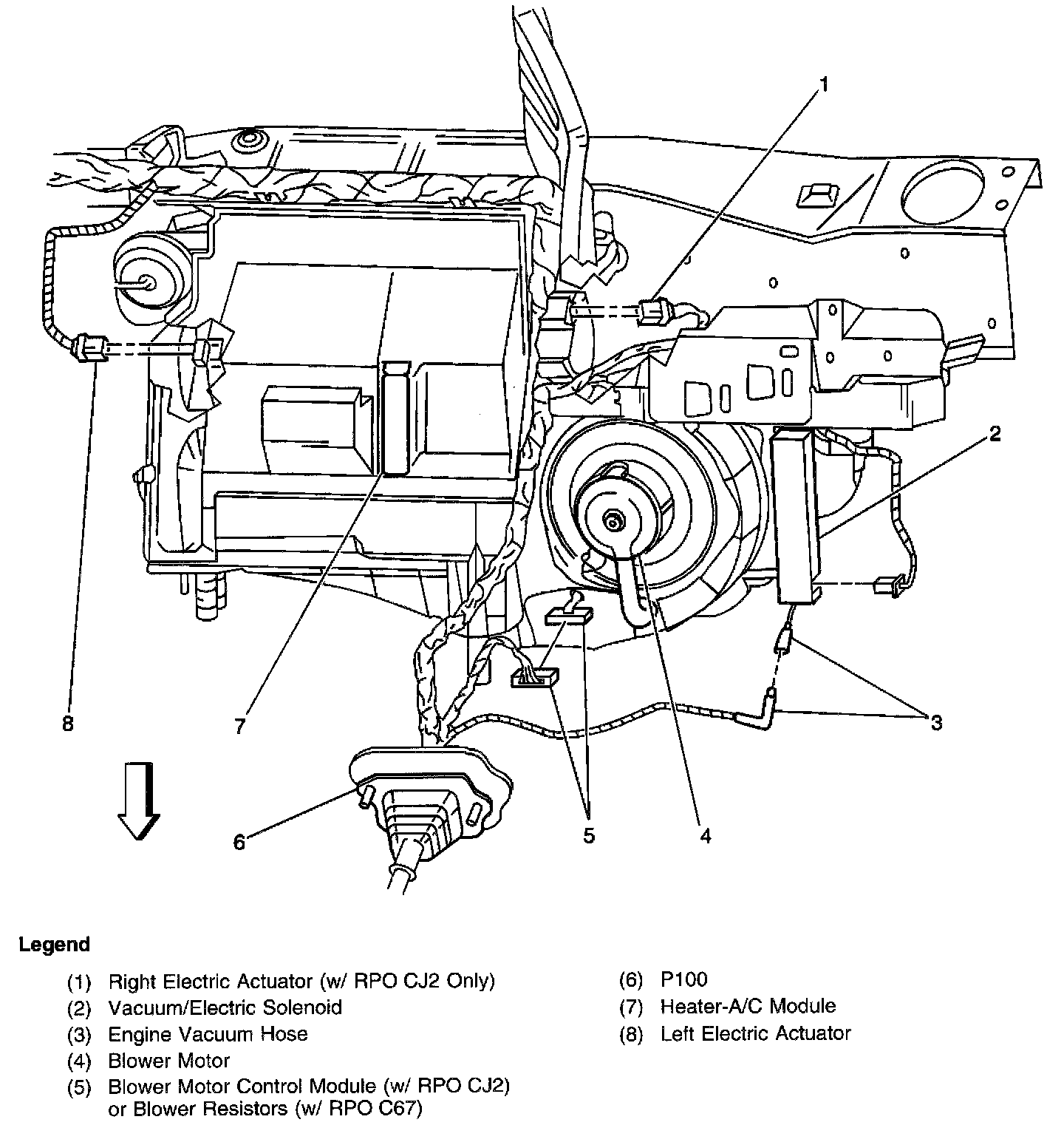

HVAC - Behind Center Of Instrument Panel (CJ2 Shown, C67 Similar):





Behind the right side of the IP, in the right side of the heater-A/C module (W/ RPO CJ2 Only)
