PASSLOCK SEN, Tire Pressure Monitor, TCS

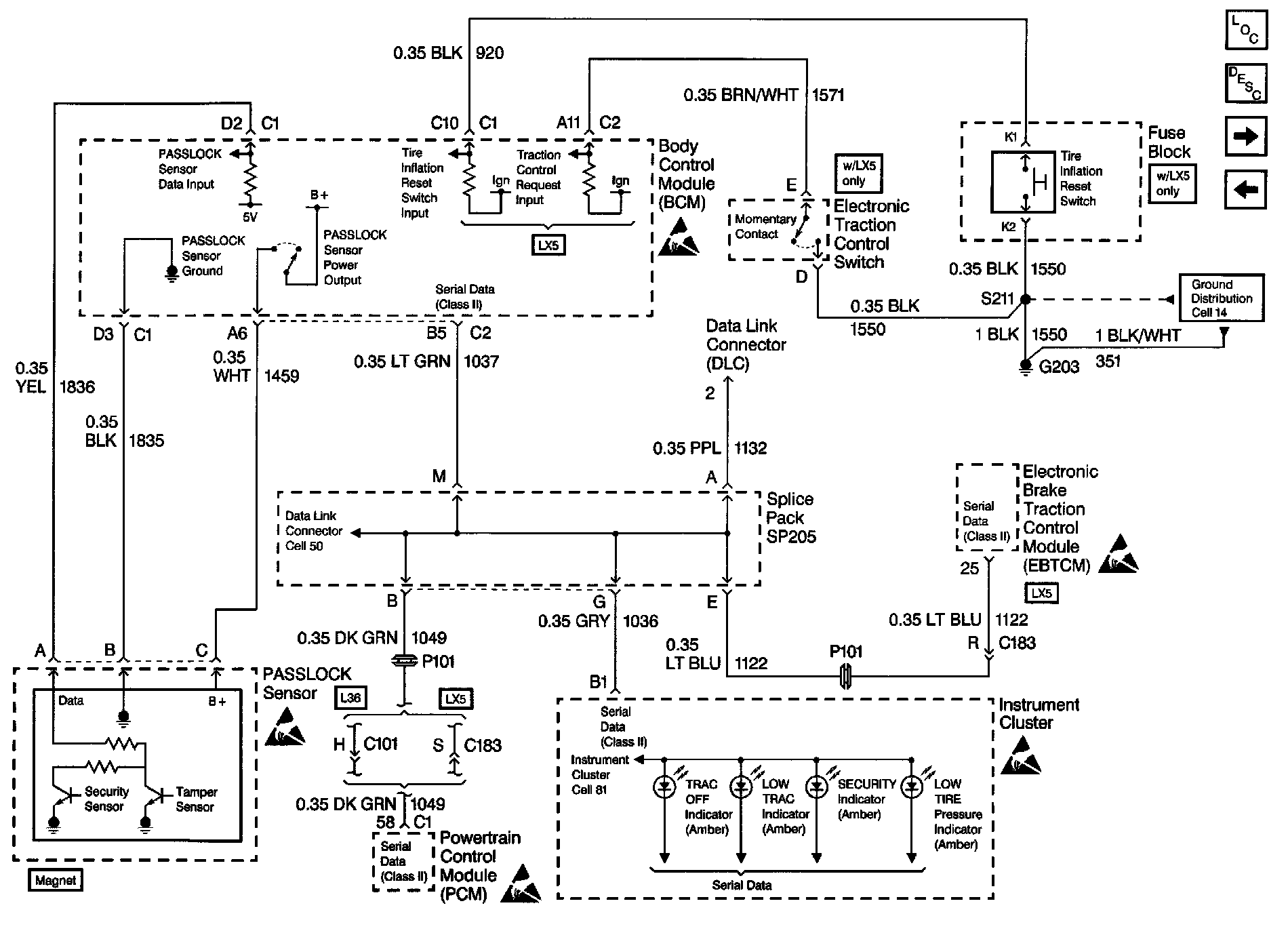

Body Control Schematics: PASSLOCK Sensor, Tire Pressure Monitor, TCS, Serial Data (Class 2) (w/Electronic Traction Control Switch):

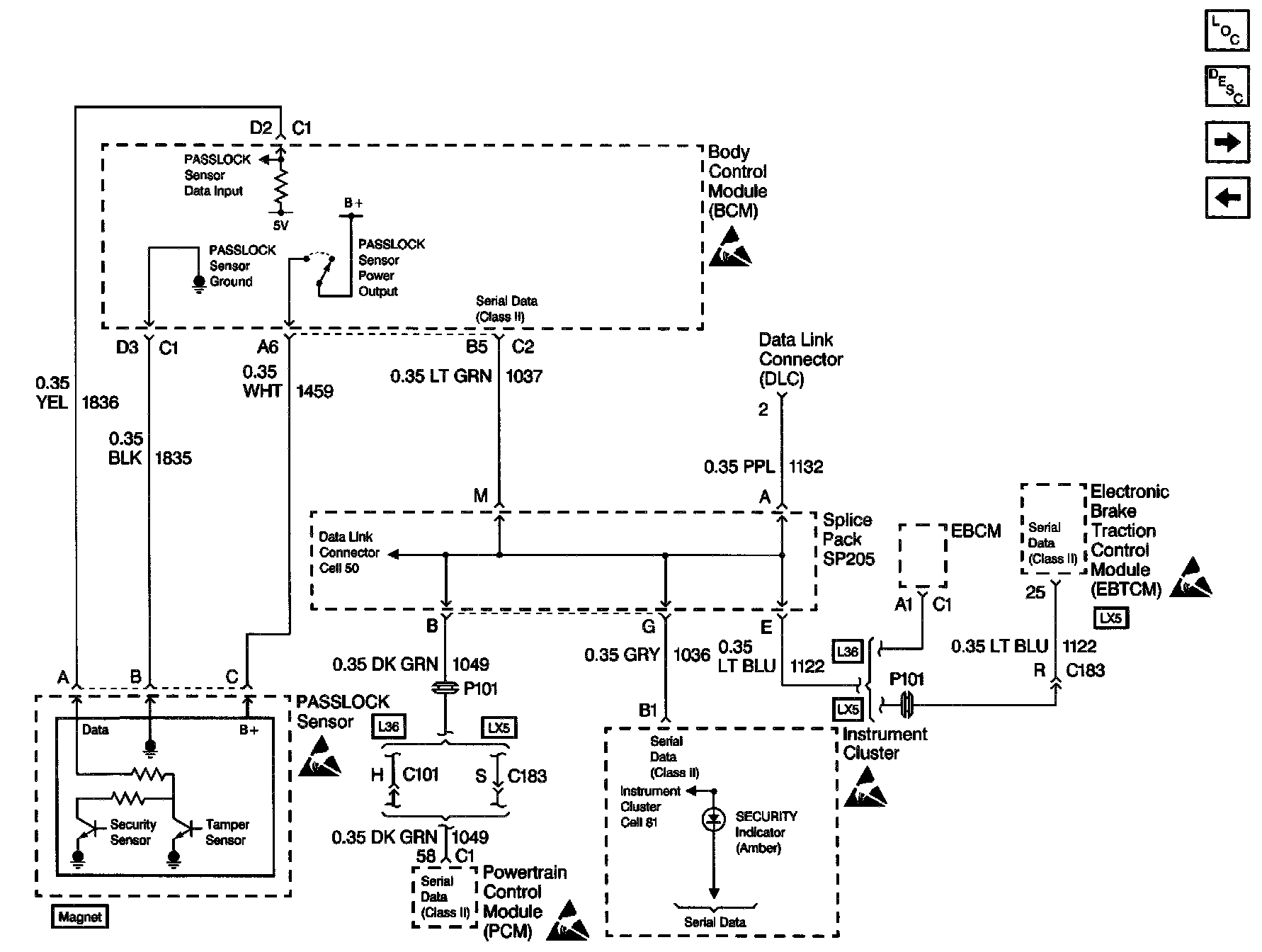

Body Control Schematics: PASSLOCK Sensor, Serial Data (Class 2) (w/o Electronic Traction Control Switch):
