Cruise Control Brake Switch And Powertrain Control Module

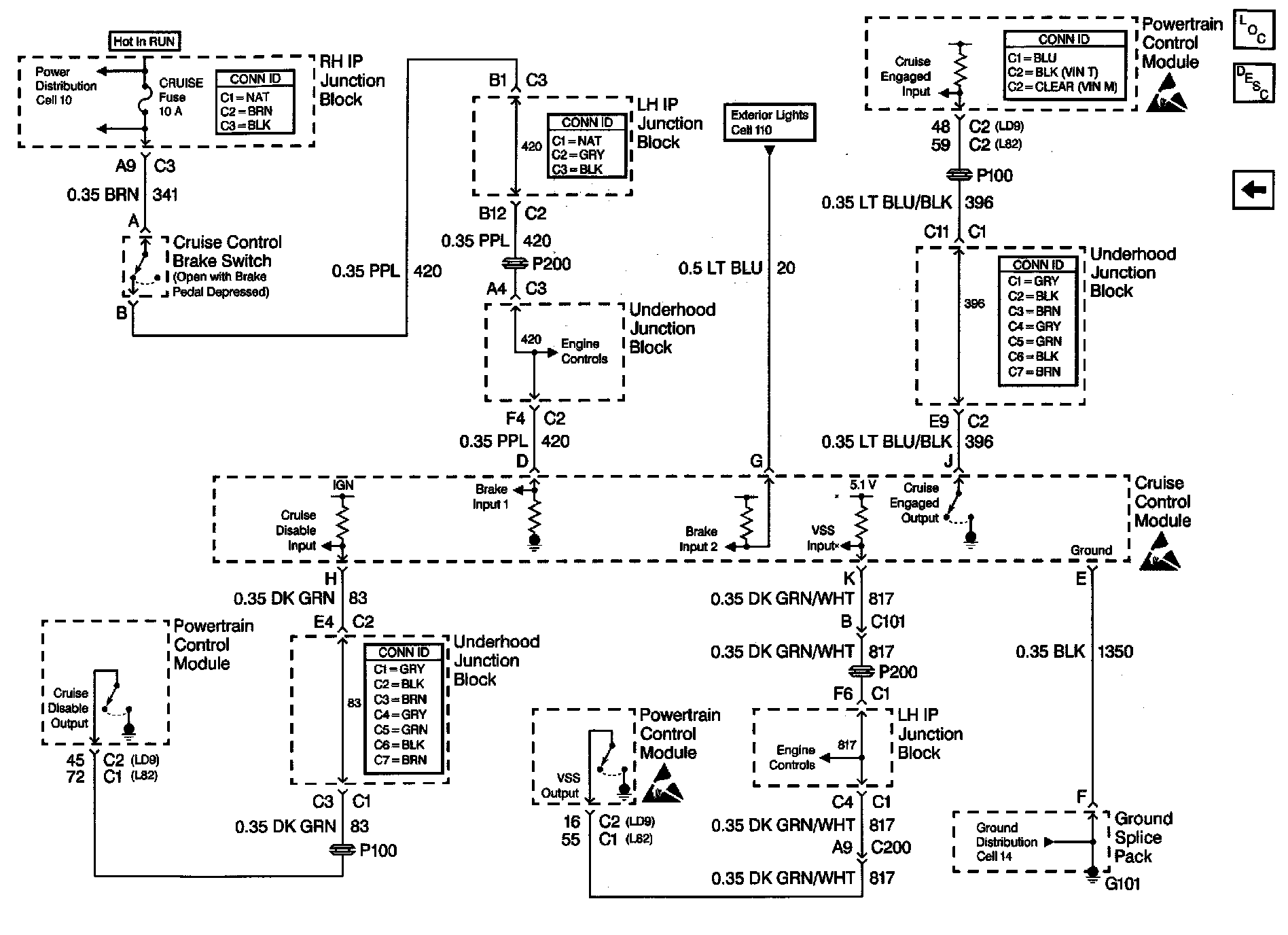

Cruise Control Schematics: Cruise Control Brake Switch And Powertrain Control Module:
