Engine Block Plug Installation

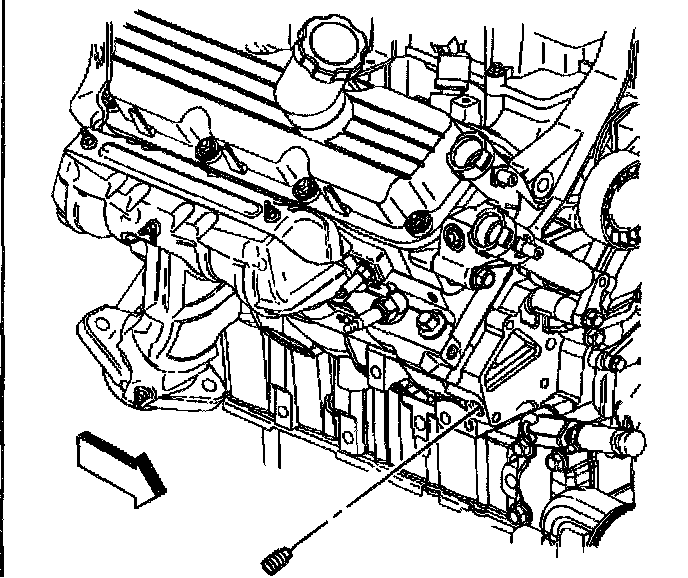

1. Install the threaded oil jacket plugs.
^ Tighten the oil jacket plugs to 30 Nm (22 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.





2. Install the remaining oil gallery plugs using GM P/N 12346004 sealant or equivalent.
