Torque Specifications

Torque Specifications

Torque Sequence:

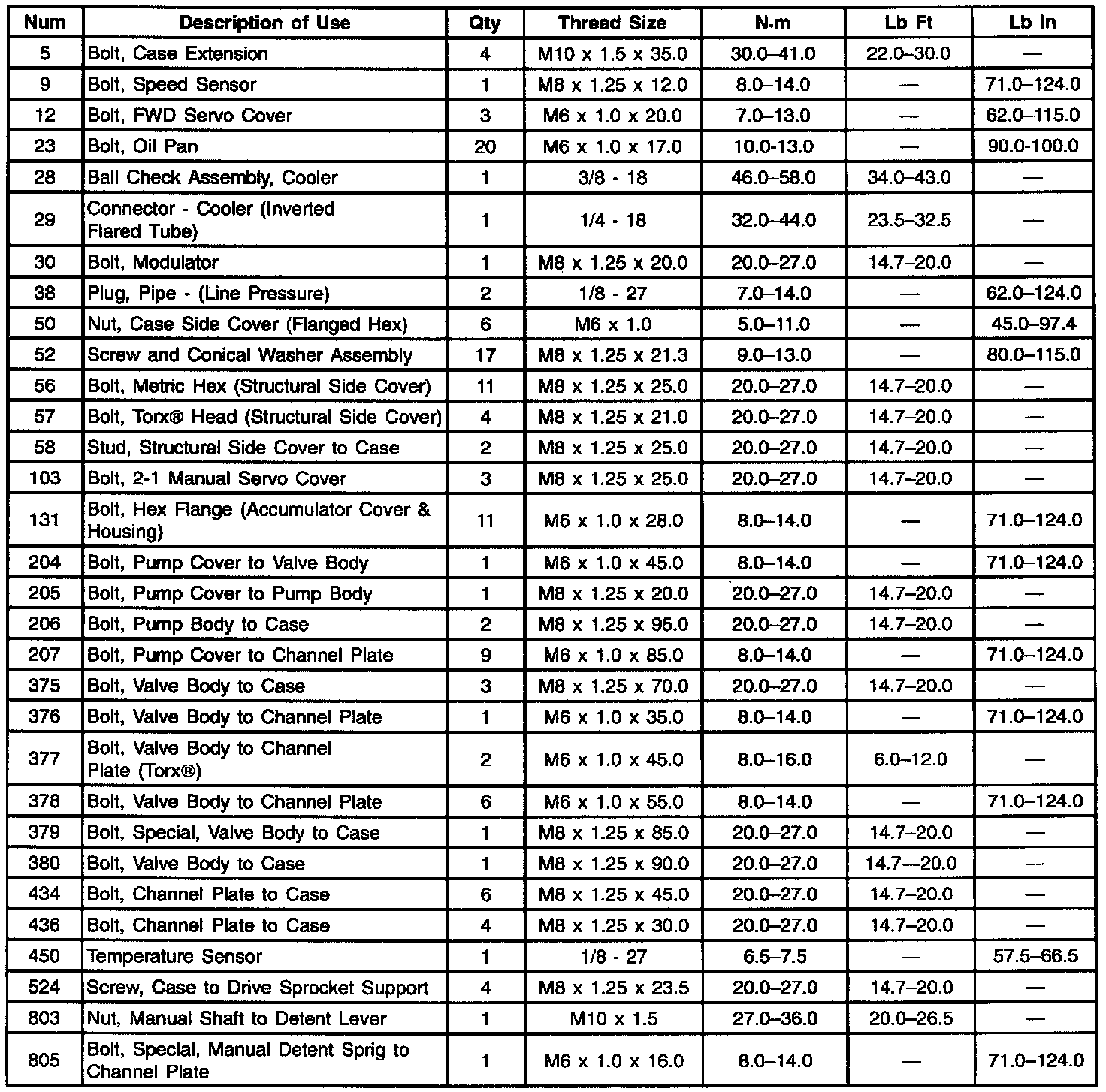

TORQUE SPECIFICATIONS:






For visual identification of the bolt/nut in the chart, match the number in the "NUM" column with the number in the legend of the transmission exploded view under Diagrams/Exploded Views.
