Blower Motor Control Module (WI RPO CJ2)

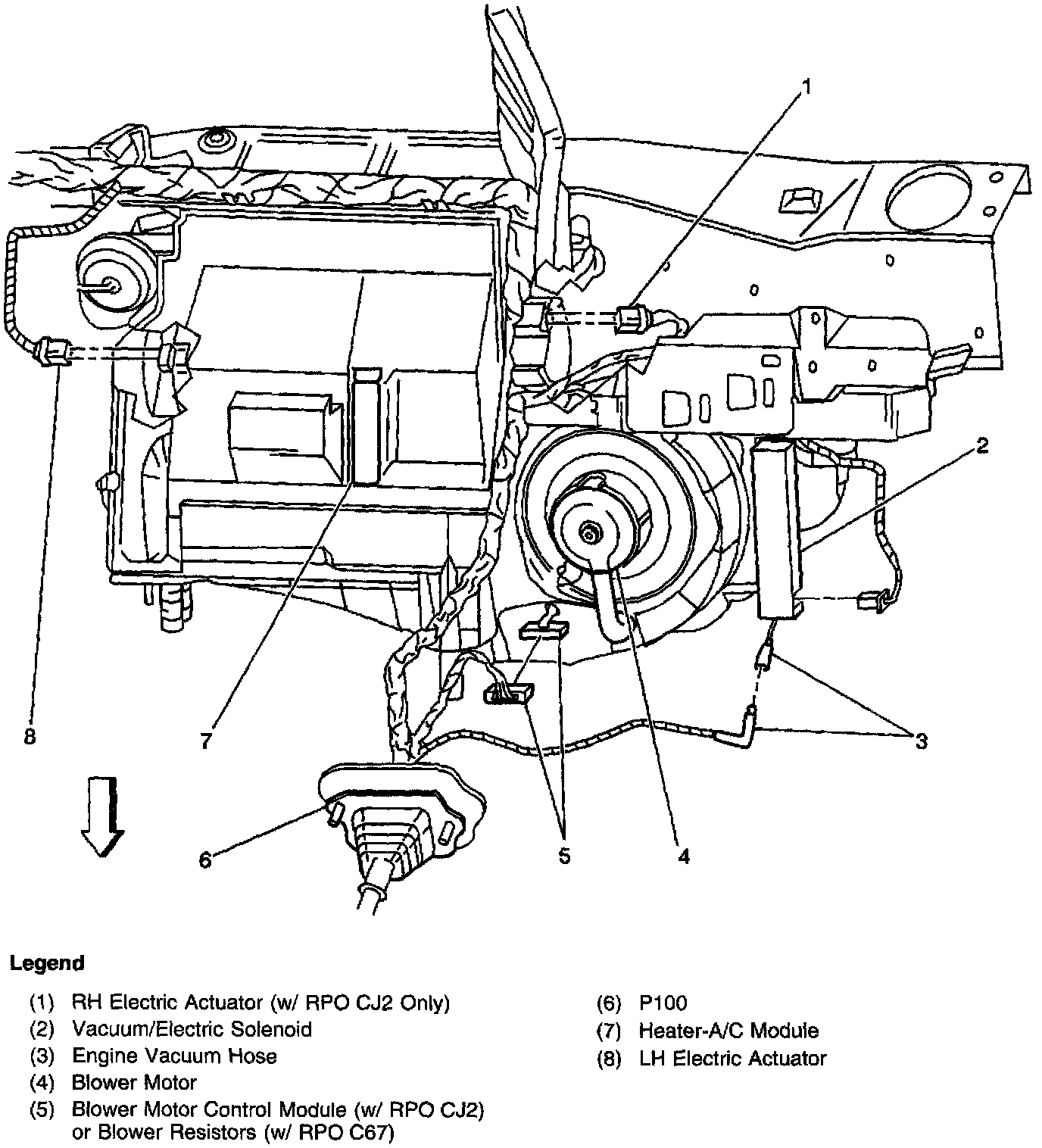

HVAC - Behind Center Of Instrument Panel (CJ2 Shown, C57 Similar):





Behind RH side of I/P, in RH side of heater-A/C module (w/ FIPO CJ2 Only)
