Connector Locations

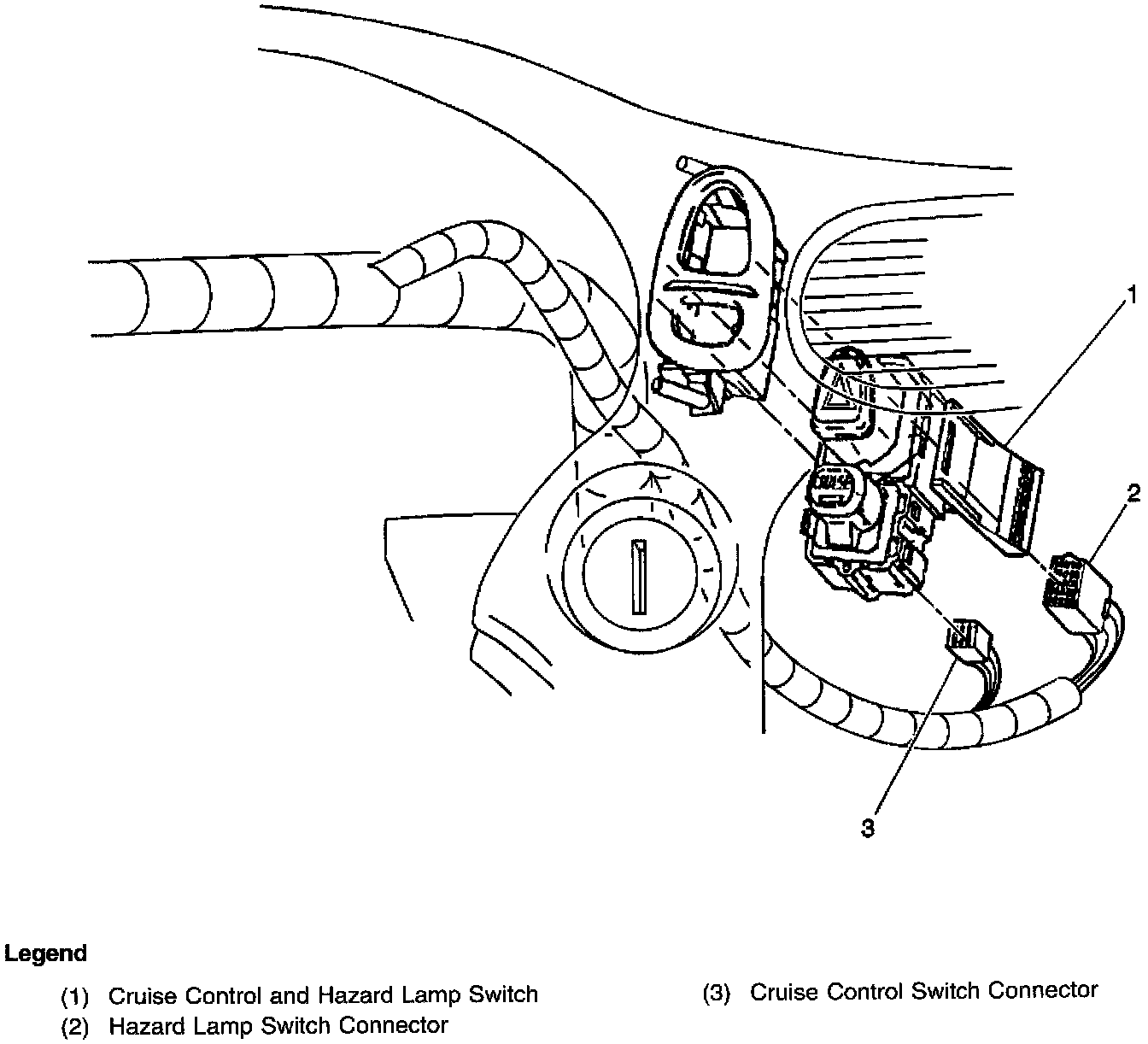

Cruise Control And Hazard Lamp Switch - LH Side Of Instrument Panel:

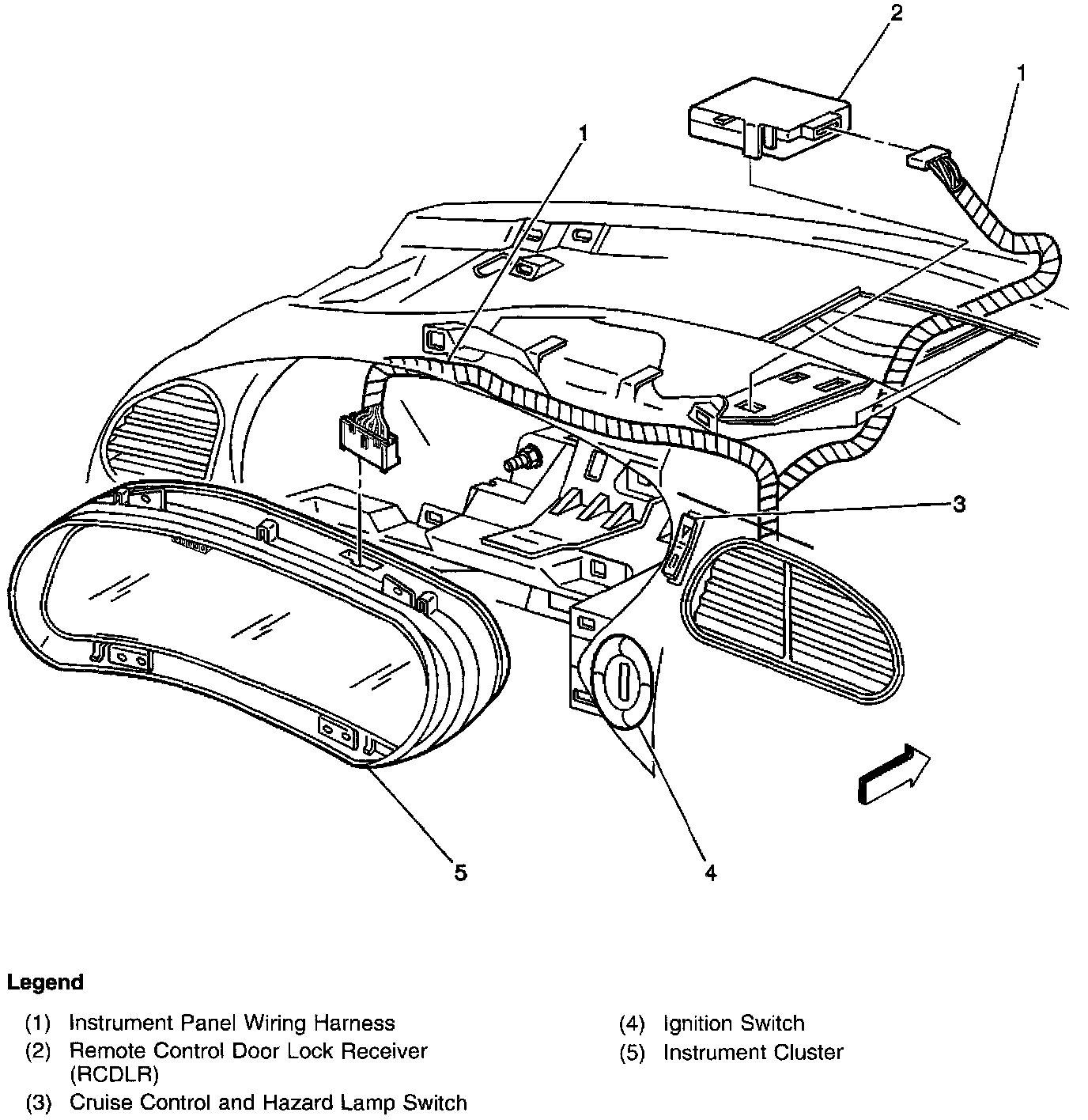

RCDLR, Cruise Control & Hazard Lamp SW, Ignition SW Instrument Cluster - LH Side Of I/P:

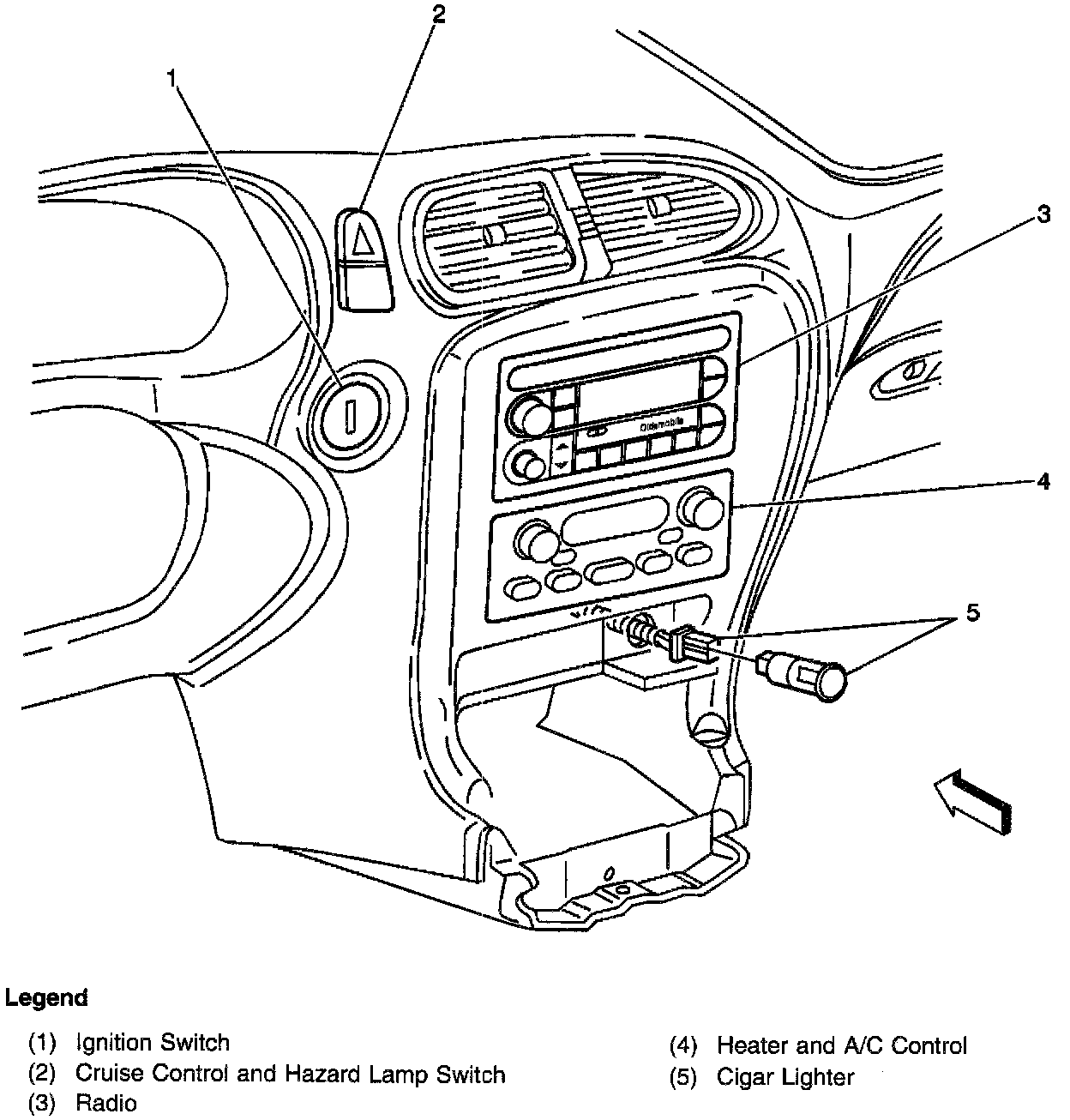

Center Of Instrument Panel:
