Fuse Application Table

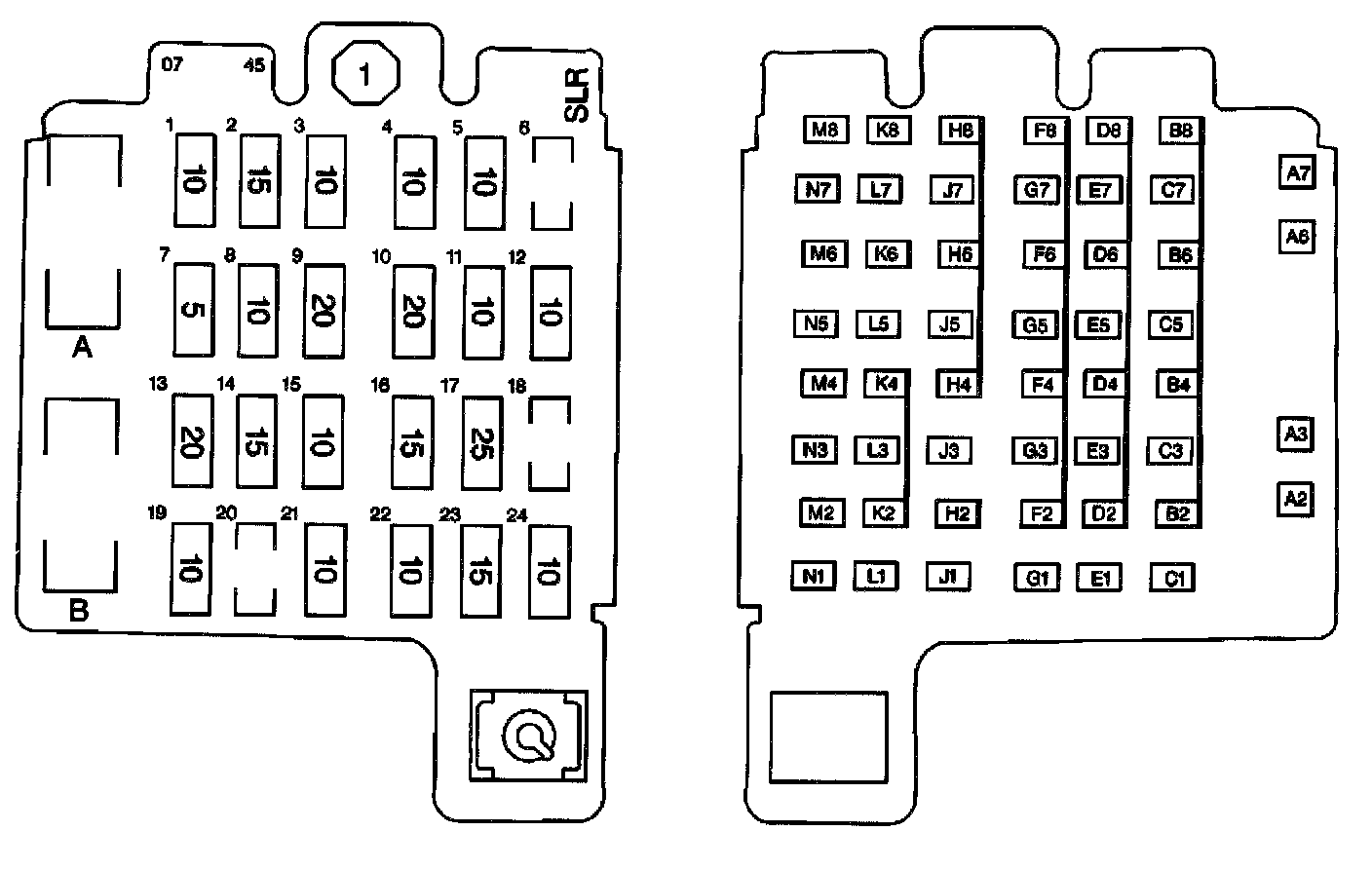

IP Fuse Block Details:

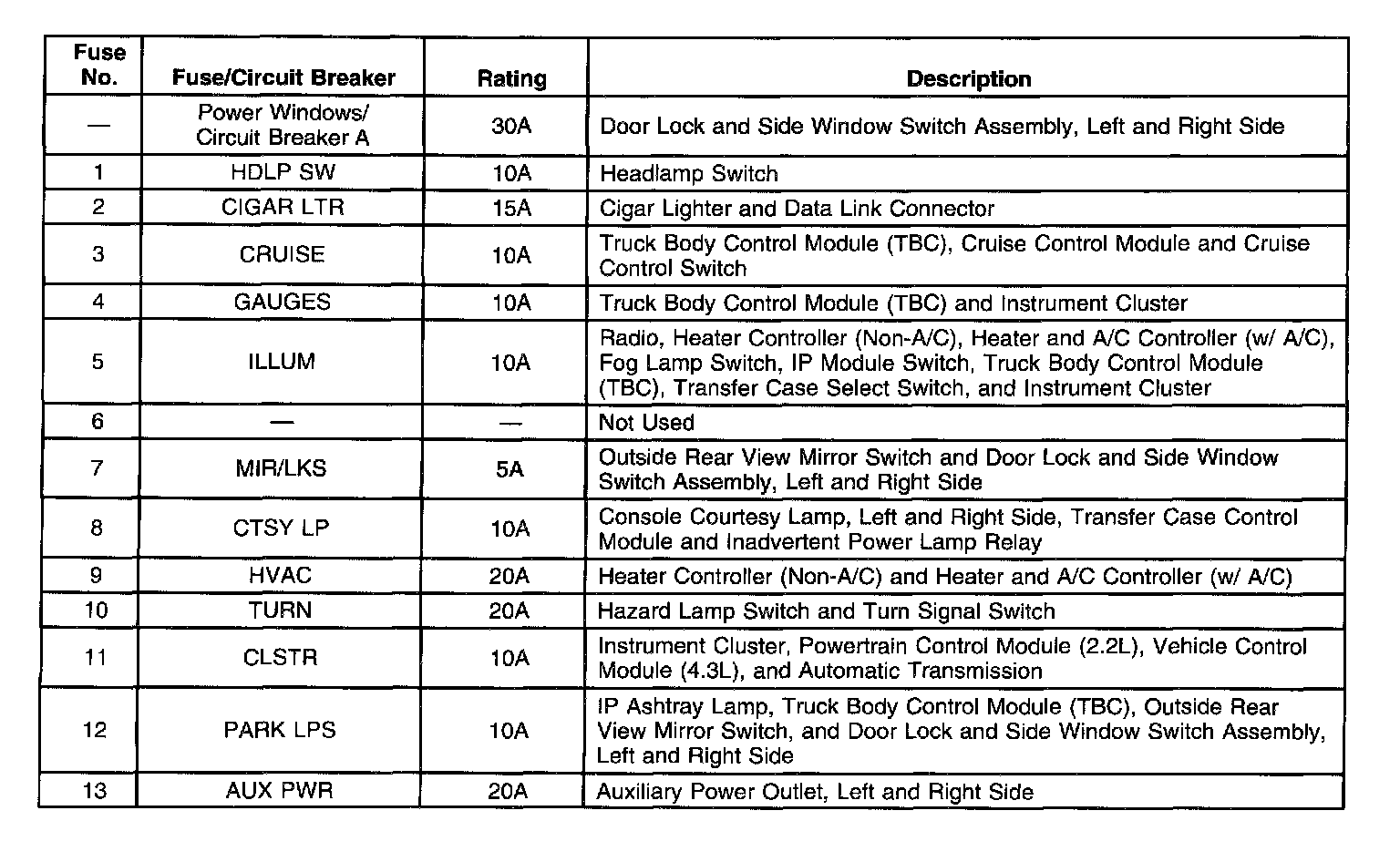

IP Fuse Block Details (Part 1 Of 2):

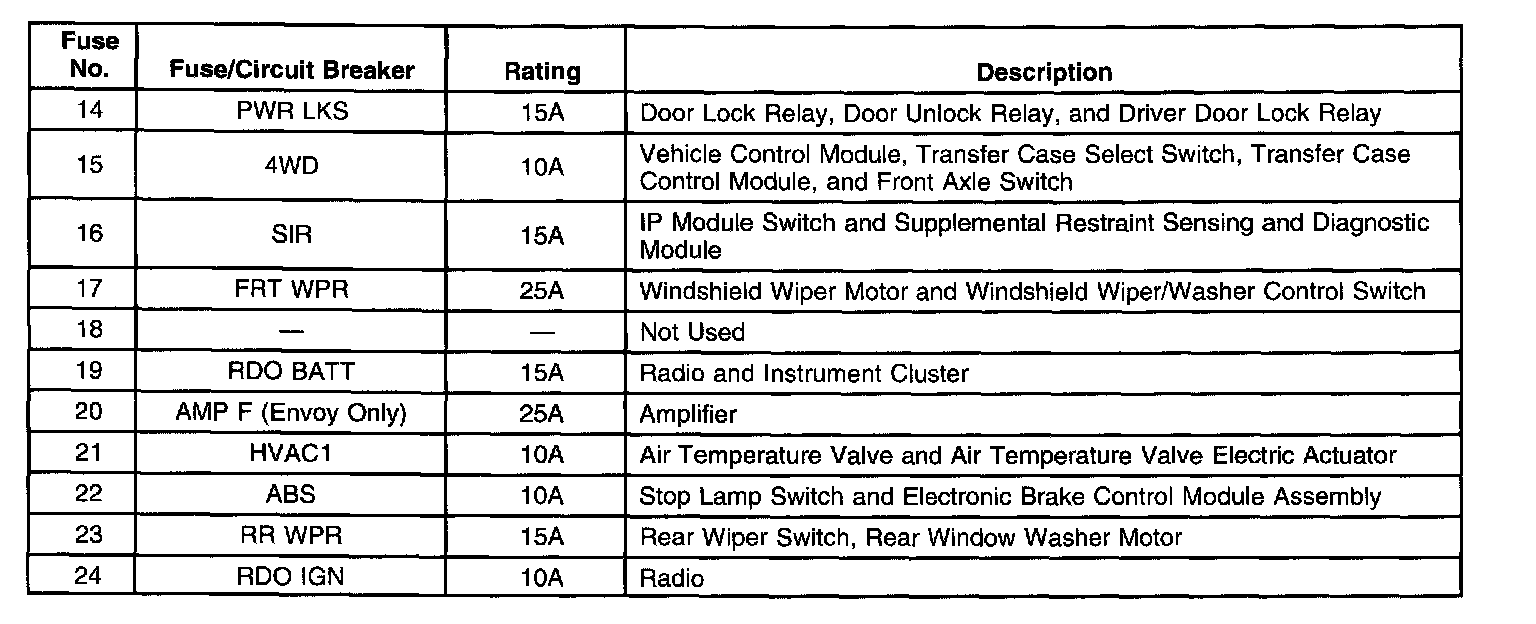

IP Fuse Block Details (Part 2 Of 2):
