Connectors C101 To C803: C129

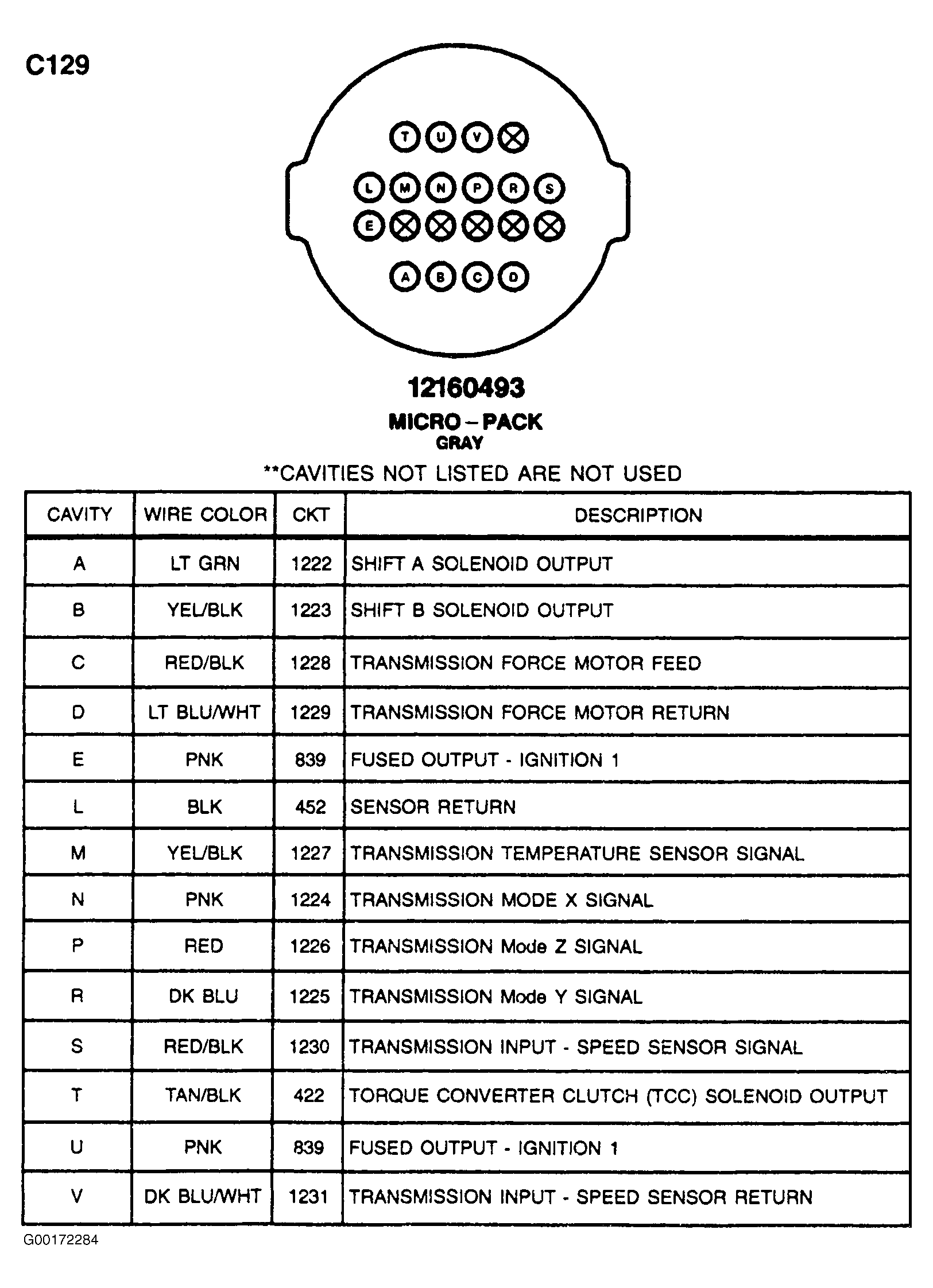

Fig 1: C129 - 20-Pin Connector (Gray)

G00172284

Courtesy of GENERAL MOTORS CORP.
