Audible Warning Device Control Module: Diagrams

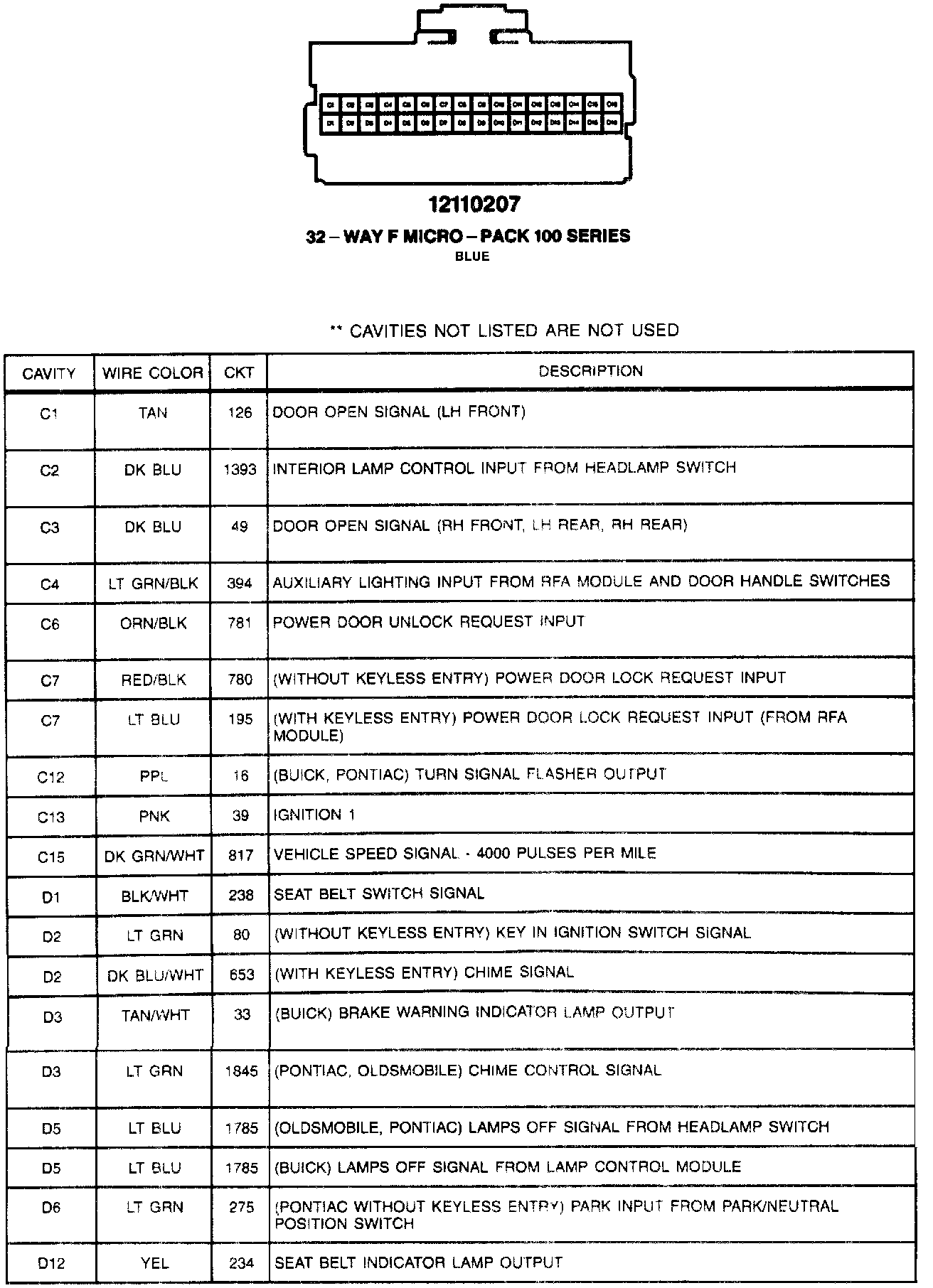

Body Control Module (MALL) CONN: C1:

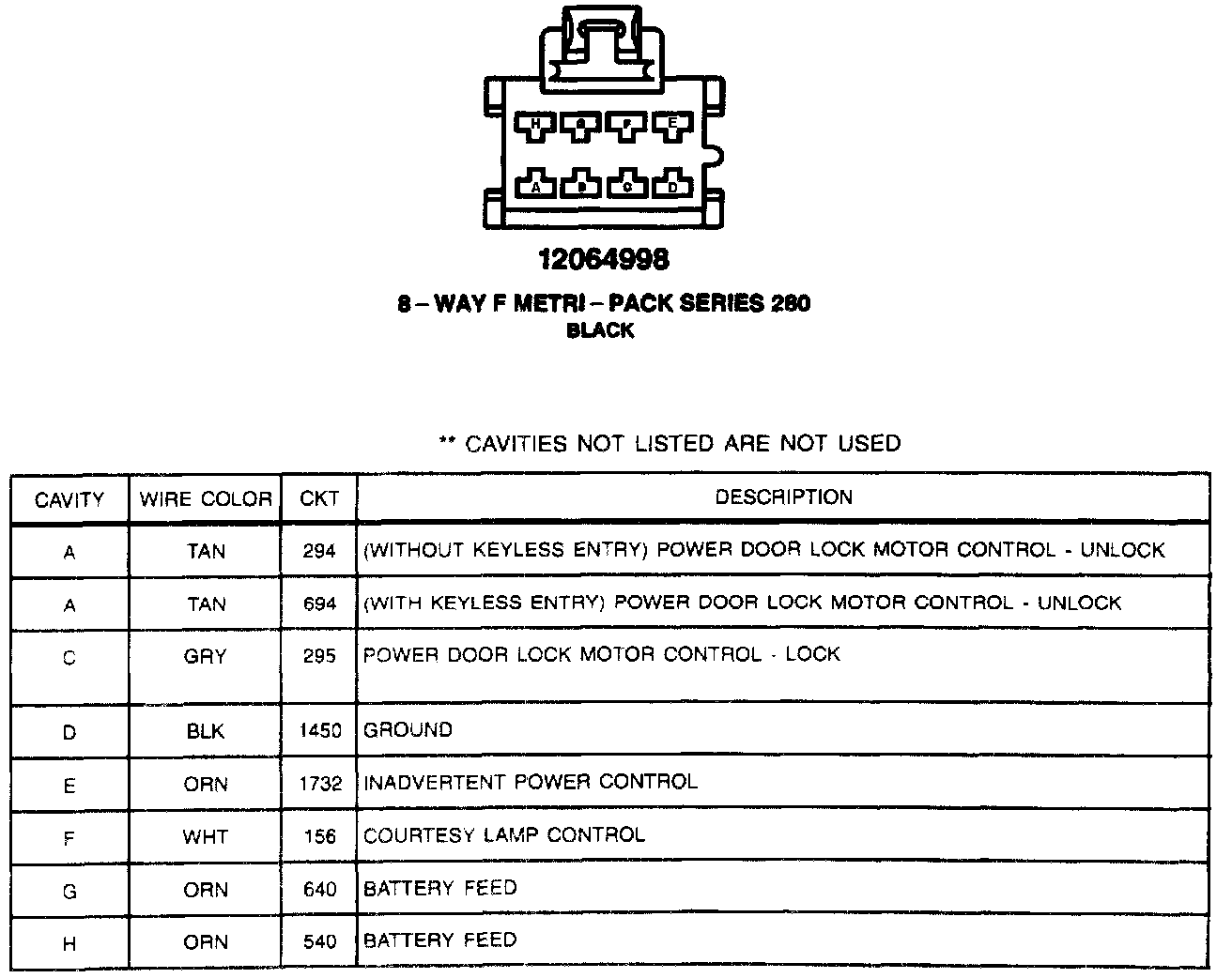

Body Control Module (MALL) CONN: C2:
