Home >> Oldsmobile >> 1997 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Heater & A/C Control Assembly >> General

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

General

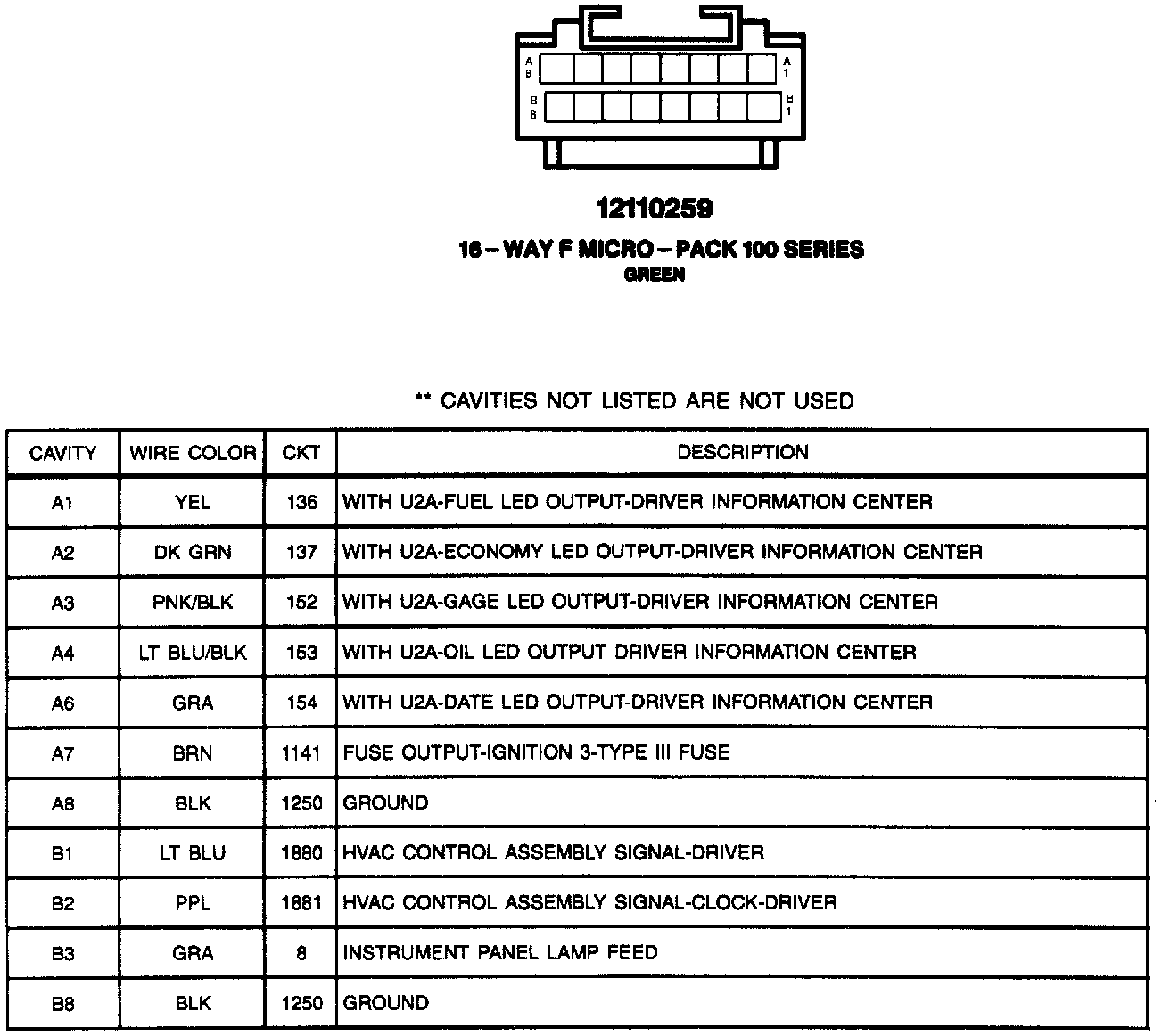

Heater And A/C Control Assembly:
