Compressor Mounting Brackets

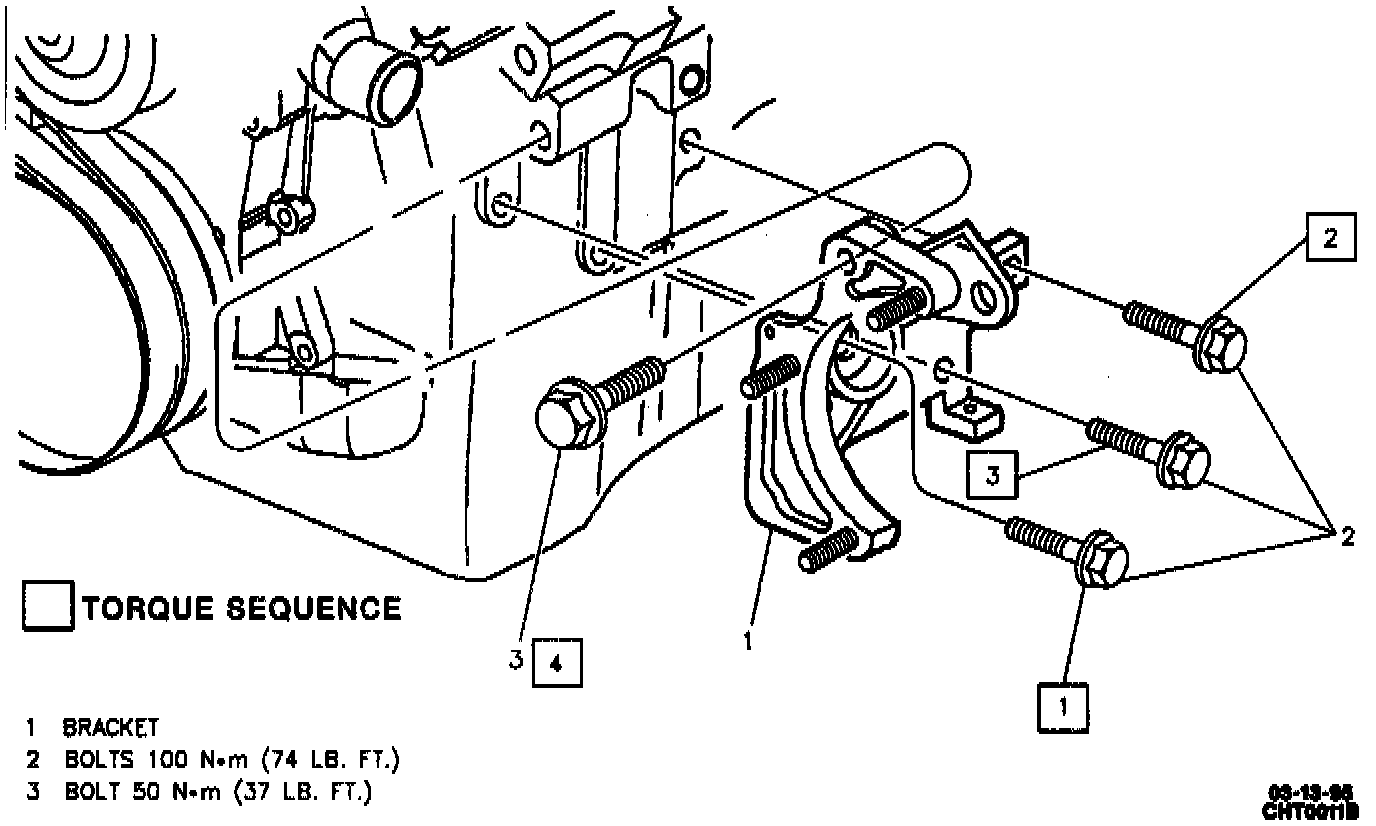

A/C Compressor Mounting Bracket:

Remove or Disconnect

1. A/C compressor.
2. A/C compressor mounting bracket retaining bolts.
3. A/C compressor mounting bracket.

Install or Connect

1. A/C compressor mounting bracket.
2. A/C compressor mounting bracket retaining bolts.

Tighten
- Side bracket bolts 100 N.m (74 lb. ft.).
- Front bracket bolt 50 N.m (37 lb. ft.).

3. A/C compressor.
