Wheel Speed Sensor (LR & RR)

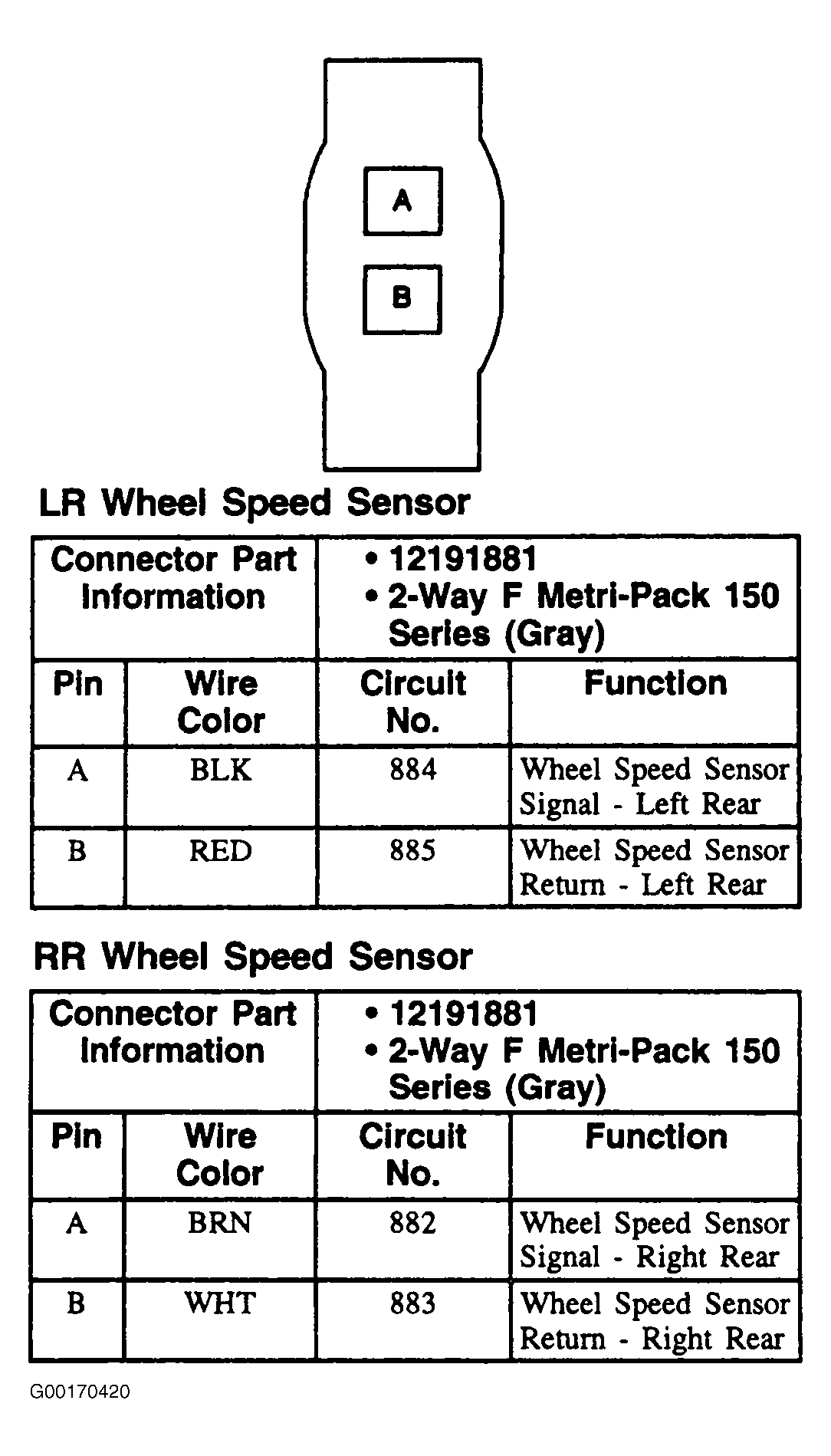

Fig 1: Wheel Speed Sensor (RR & LR - Cutlass & Malibu) - 2-Pin Connector (Gray)
G00170420Courtesy of GENERAL MOTORS CORP.
