Cutlass & MALIBU

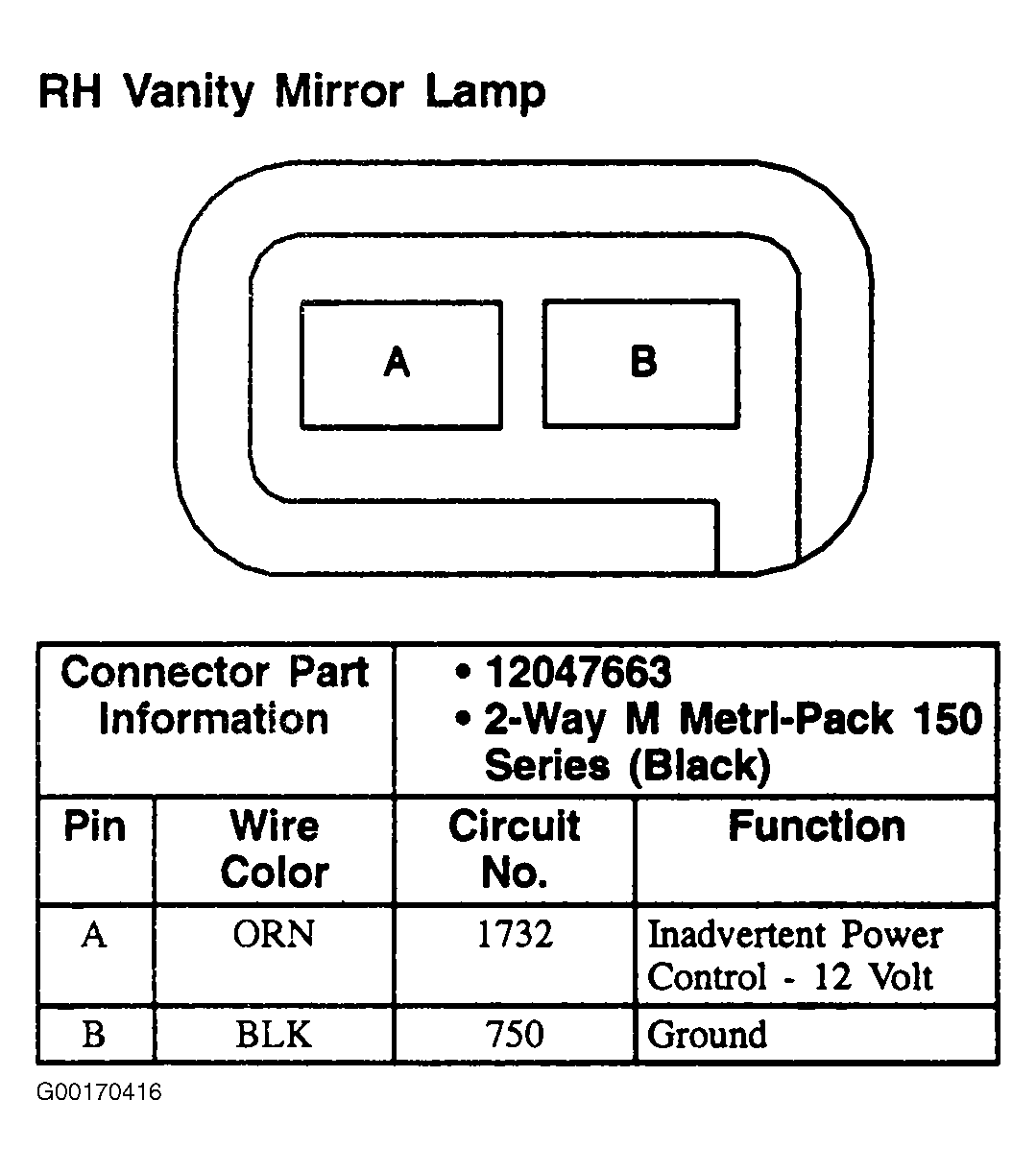

Fig 1: Vanity Mirror Lamp (RH - Cutlass & Malibu) - 2-Pin Connector (Black)
G00170416Courtesy of GENERAL MOTORS CORP.
