ACHIEVA, Grand Am & Skylark

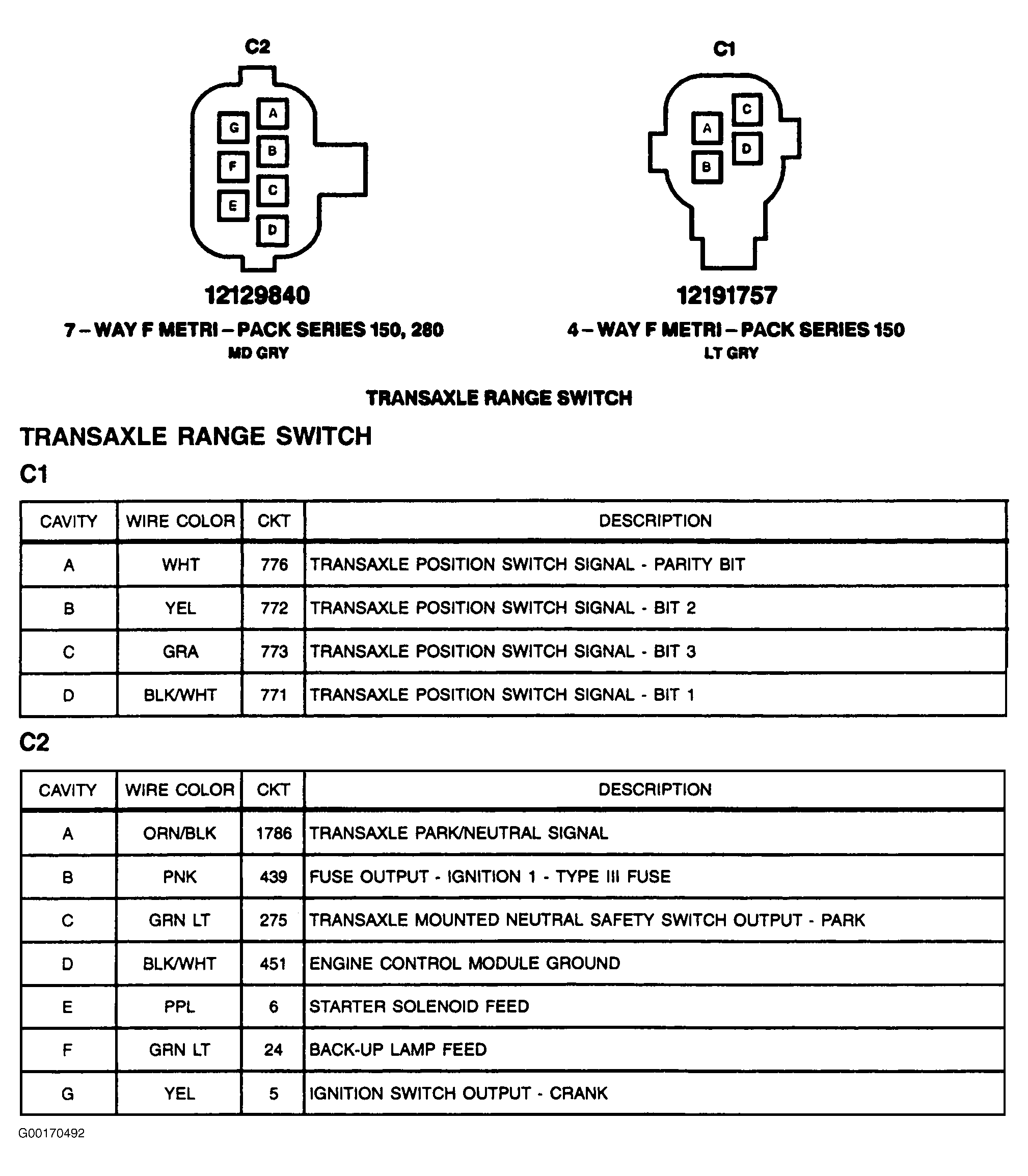

Fig 1: Transaxle Range Switch Connectors C1 & C2 (Achieva, Grand Am & Skylark) - 7-Pin Connector (Medium Gray) & 4-Pin Connector (Light Gray)
G00170492Courtesy of GENERAL MOTORS CORP.
