ACHIEVA, Grand Am & Skylark

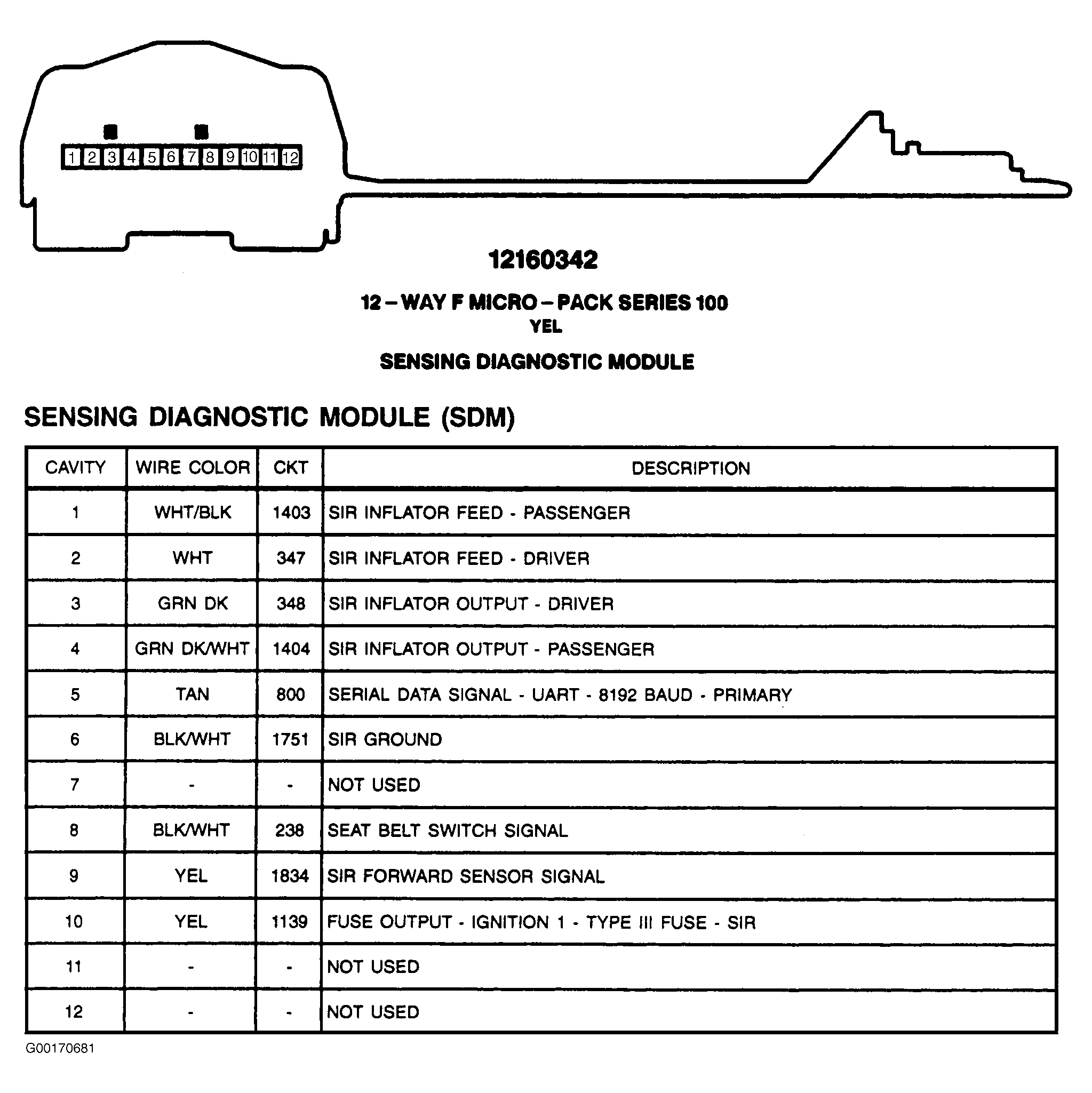

Fig 1: Sensing Diagnostic Module (SDM) Achieva, Grand Am & Skylark - 12-Pin Connector (Yellow)
G00170681Courtesy of GENERAL MOTORS CORP.
