Power Window Motor (LF & RF)

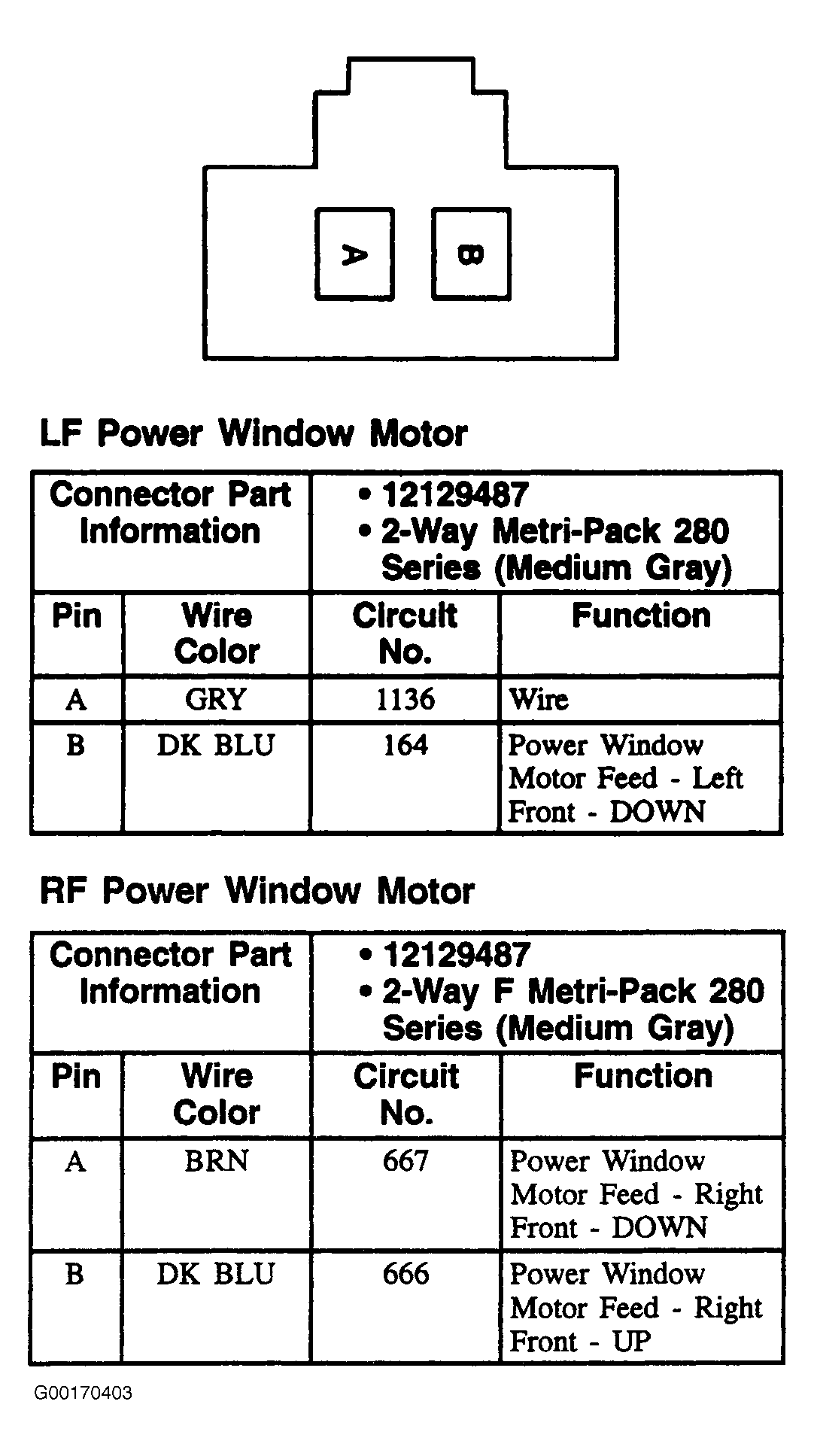

Fig 1: Power Window Motor (LF & RF - Cutlass & Malibu) - 2-Pin Connector (Medium Gray)
G00170403Courtesy of GENERAL MOTORS CORP.
