Cutlass & MALIBU

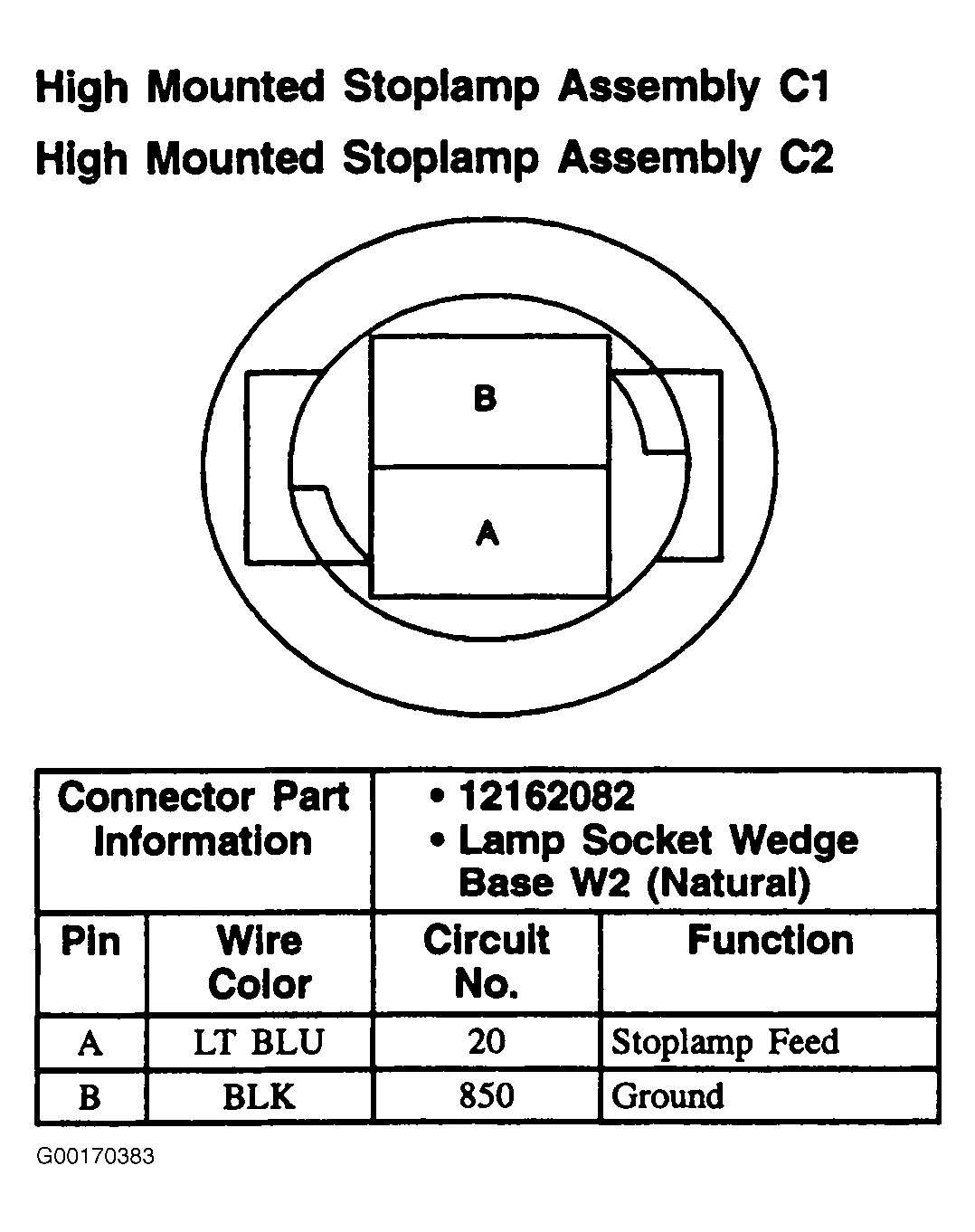

Fig 1: High Mounted Stoplamp Assembly Connectors C1 & C2 (Cutlass & Malibu) - 2-Pin Connector (Natural)
G00170383Courtesy of GENERAL MOTORS CORP.
