Audible Warning Device Control Module: Locations

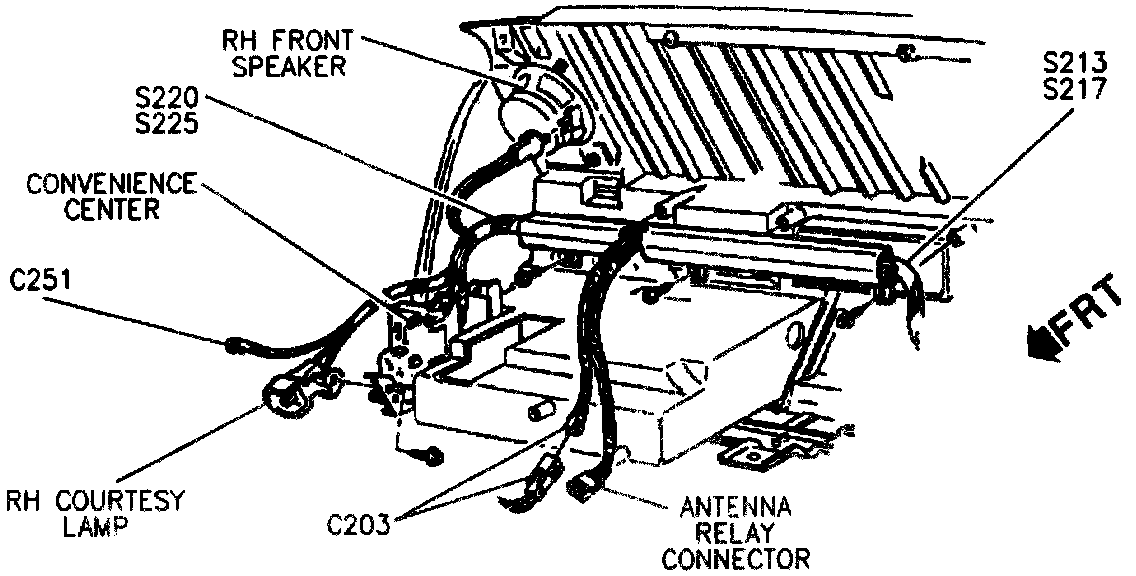

Behind RH Side Of I/P:






The Seat Belt/Ignition Key/Lamp and Turn Signal Alarm is located in the Convenience Center. The Convenience Center is located behind RH side of I/P, right of instrument panel Compartment.
