Interior Lighting Module: Locations

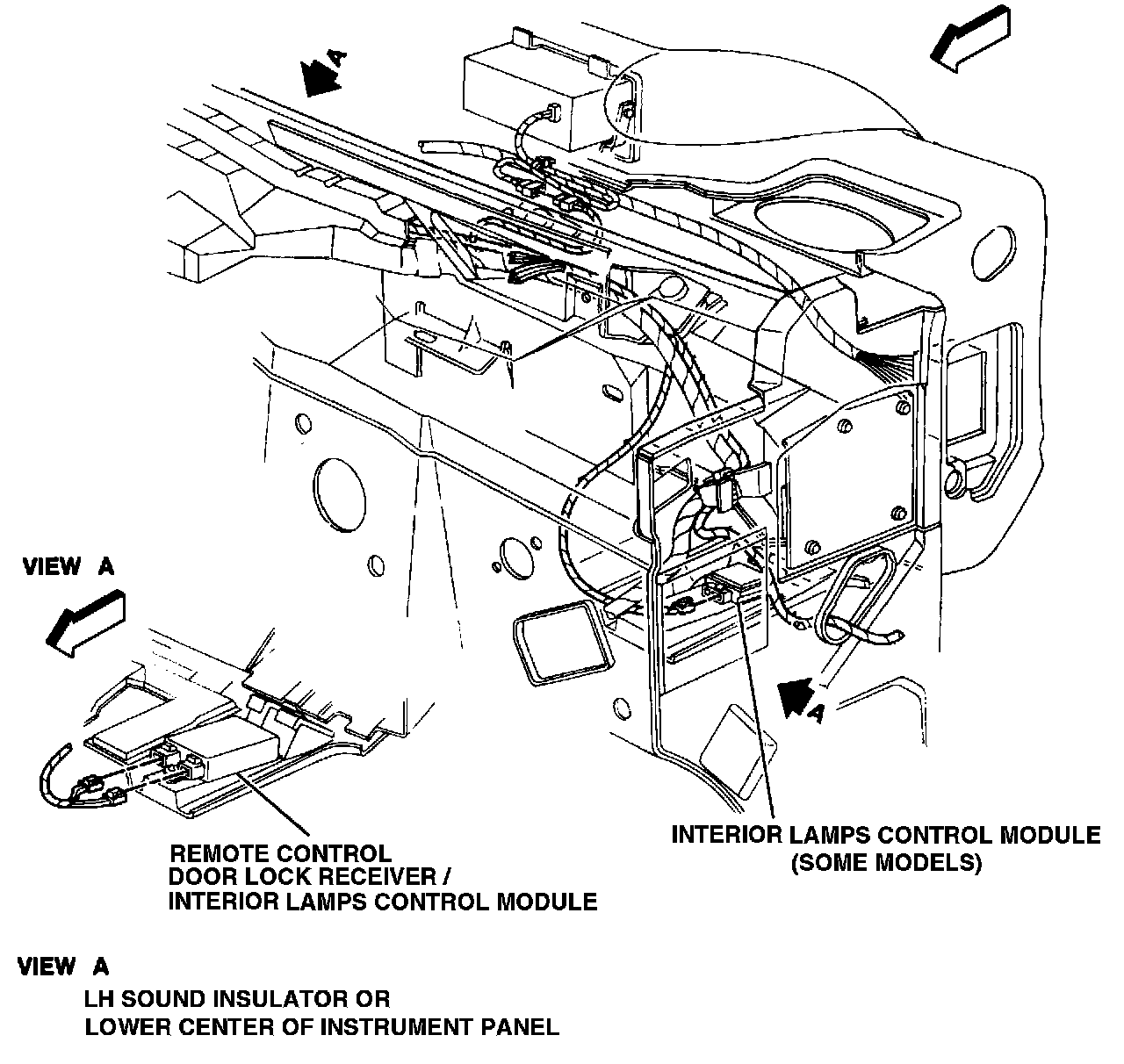

INTERIOR LIGHTING MODULE OR REMOTE CONTROL DOOR LOCK RECEIVER






The Interior Lighting Module can be combined with the Remote Control Door Lock Receiver (RCDLR) if equipped with Keyless Entry System.
The OEM service manual is unclear as to a specific location for each module. Check all 3 locations given.
1. Behind lower LH side of I/P near Park Brake.
2. Above LH sound Insulator.
3. Lower center of I/P.
