Home >> Oldsmobile >> 1996 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C2 (Clear) >> Pin Information >> Pins 17-60

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

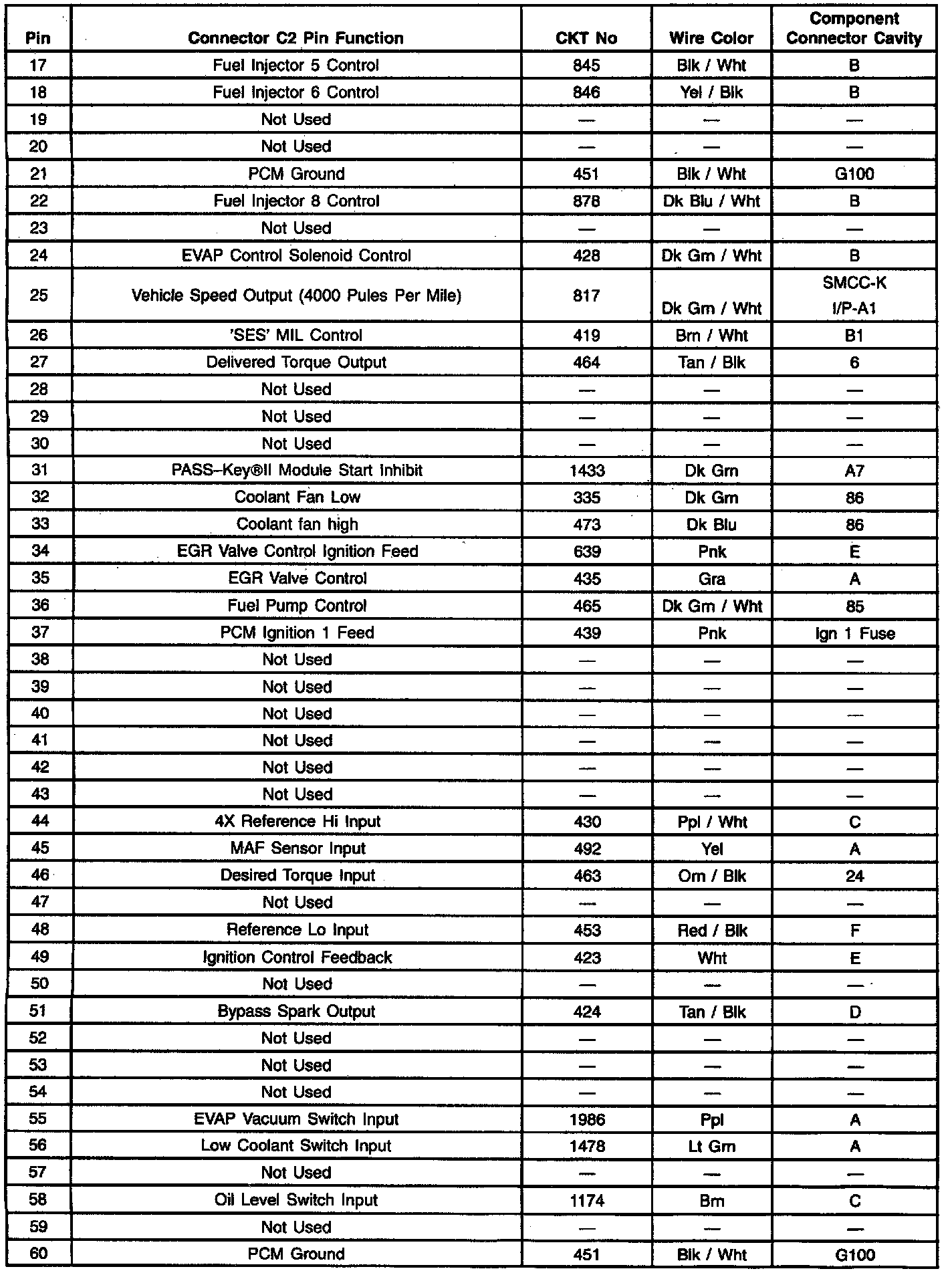

Pins 17-60

Pins 17-60:
