Brake Switch (Cruise Control): Service and Repair

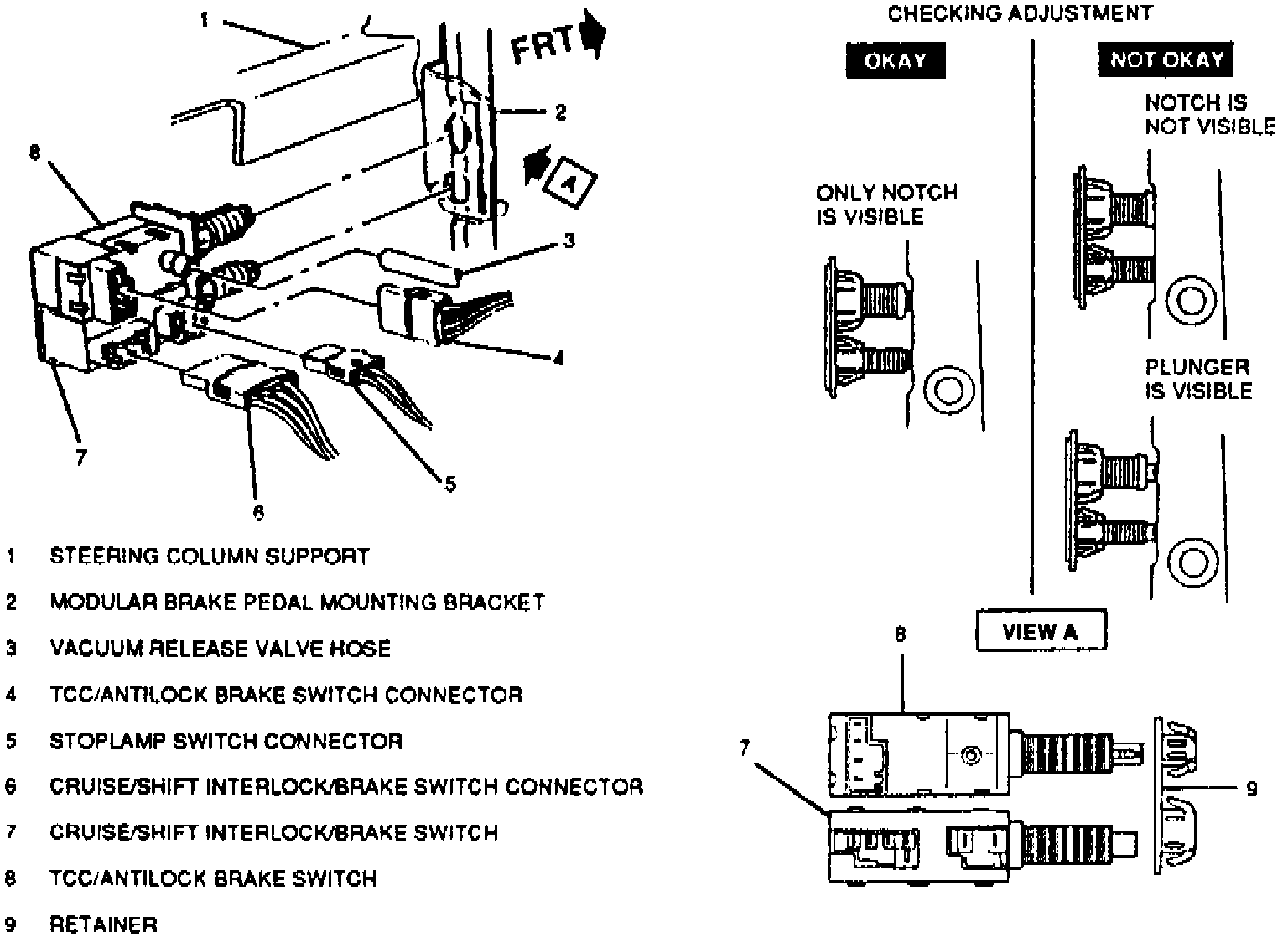

Fig. 33 Cruise/Shift Interlock/Brake Switch Disassembly:

1. Remove sound insulator, then electrical connectors.
2. Disconnect vacuum hose, then remove switch by carefully pulling switch rearward.
3. Disassemble brake switches, Fig. 33.
4. Reverse procedure to install.
