Diagnostic Aids
Vehicle will start and run after an extended crank because when Code 12 sets, the PCM will use the spark reference 24X pulses to control fuel delivery.
Fig 1: Code 12 Schematic (4.0L) 4X Crank Signal From IC Module

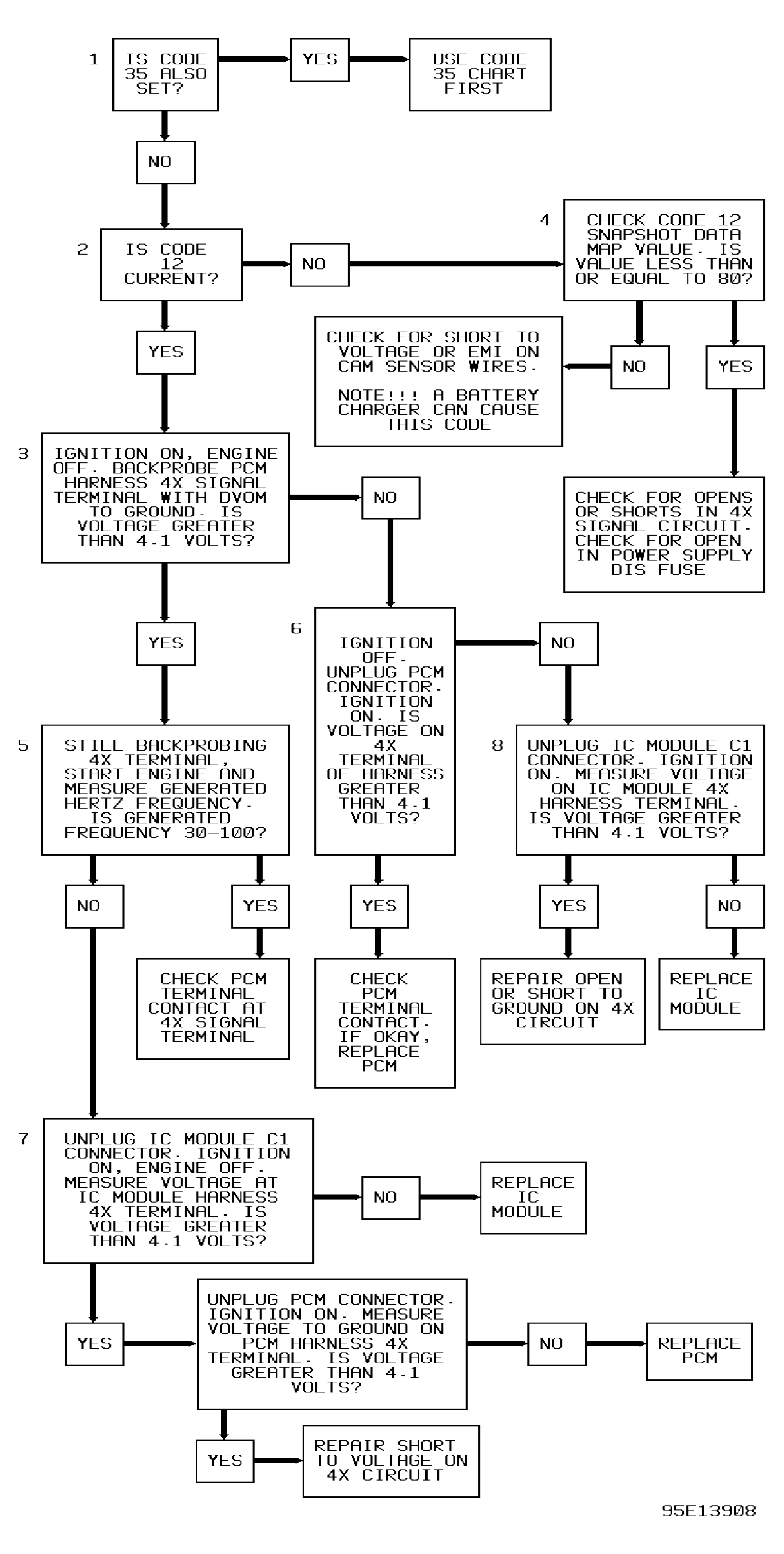

Fig 2: Code 12 Diagnostic Flow Chart (4.0L) 4X Crank Signal From IC Module
