Composite View

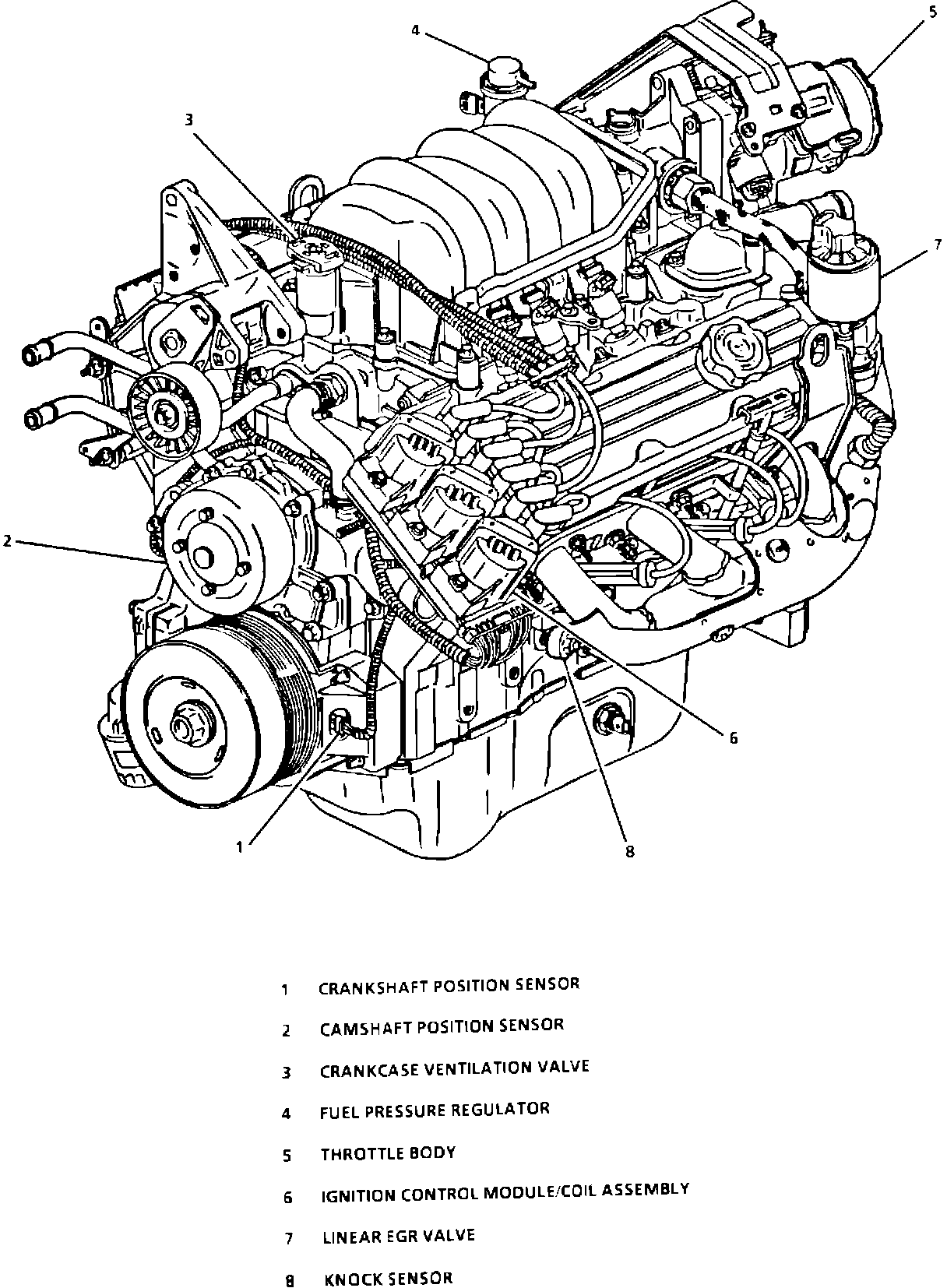

Component View:






1 CRANKSHAFT POSITION SENSOR
2 CAMSHAFT POSITION SENSOR
3 CRANKCASE VENTILATION VALVE
4 FUEL PRESSURE REGULATOR
5 THROTTLE BODY
6 IGNITION CONTROL MODULE/COIL ASSEMBLY
7 LINEAR EGR VALVE
8 KNOCK SENSOR
