Tach Pulse (RPM) Signal

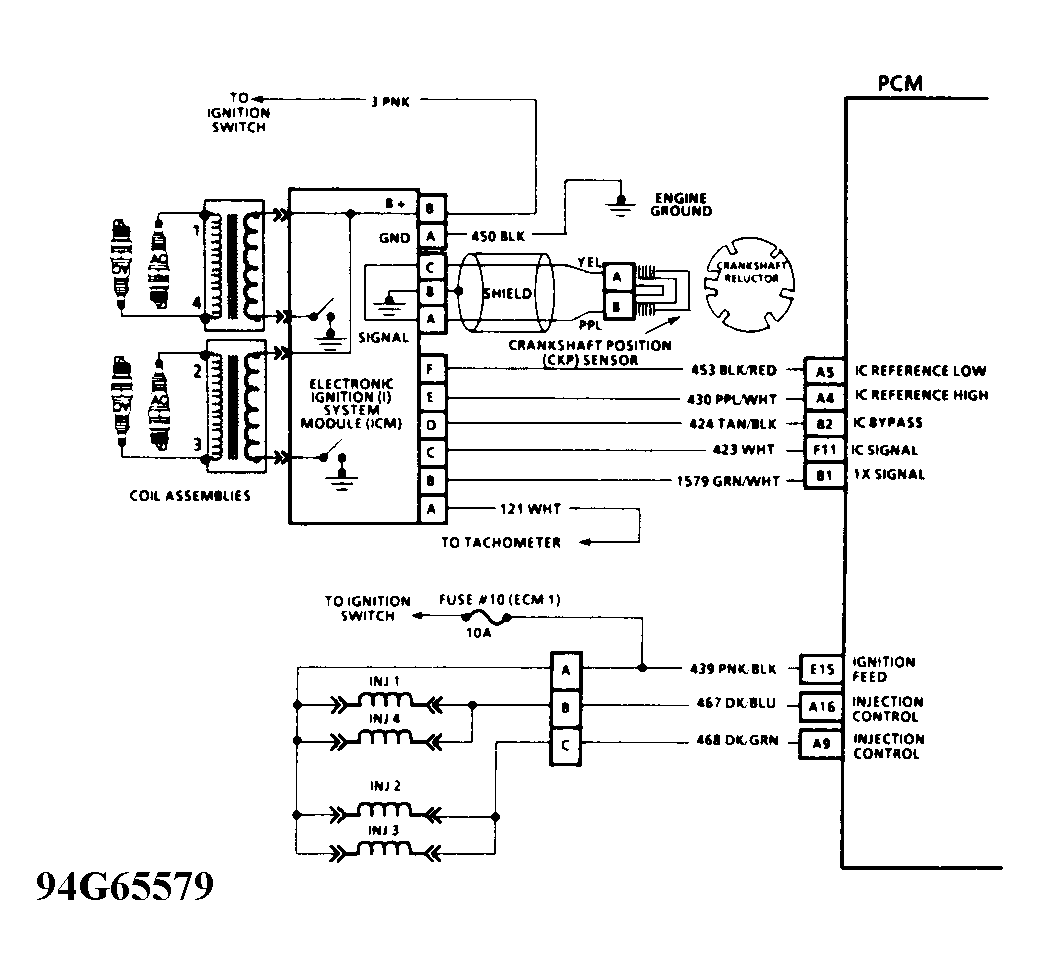

Connect scan tester to DLC. RPM should be indicated on tester when engine is cranked or running. Tach pulse (RPM reference) will be indicated as a voltage signal when a DVOM connected to battery voltage is used to backprobe circuit No. 430, ECM terminal. See Figure -5. If tach pulse signal is not present, vehicle will not run.
