Power Window

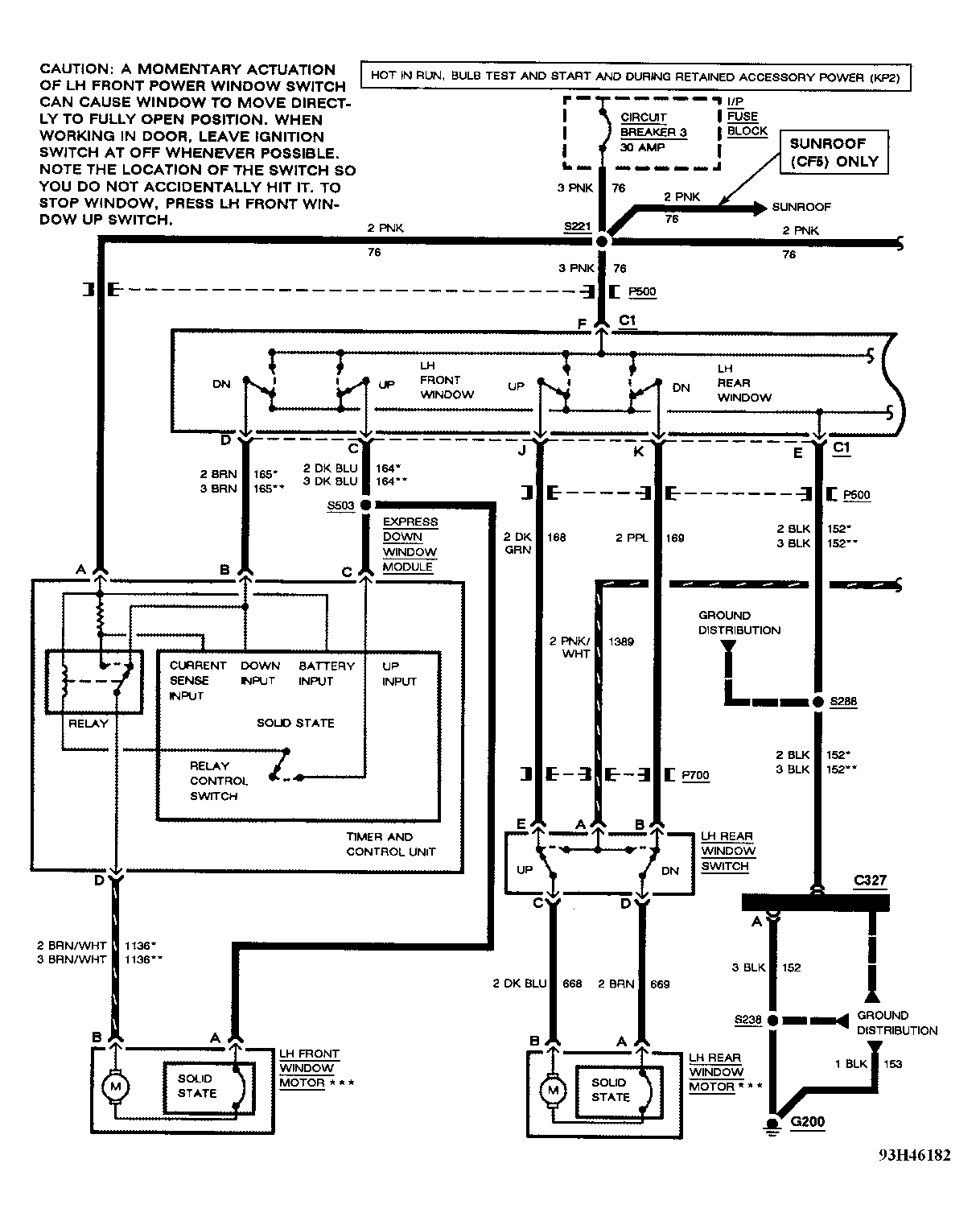

Fig 1: Wiring Diagram (Eighty-Eight, Ninety-Eight - 1 Of 2)
G93H46182Courtesy of GENERAL MOTORS CORP.

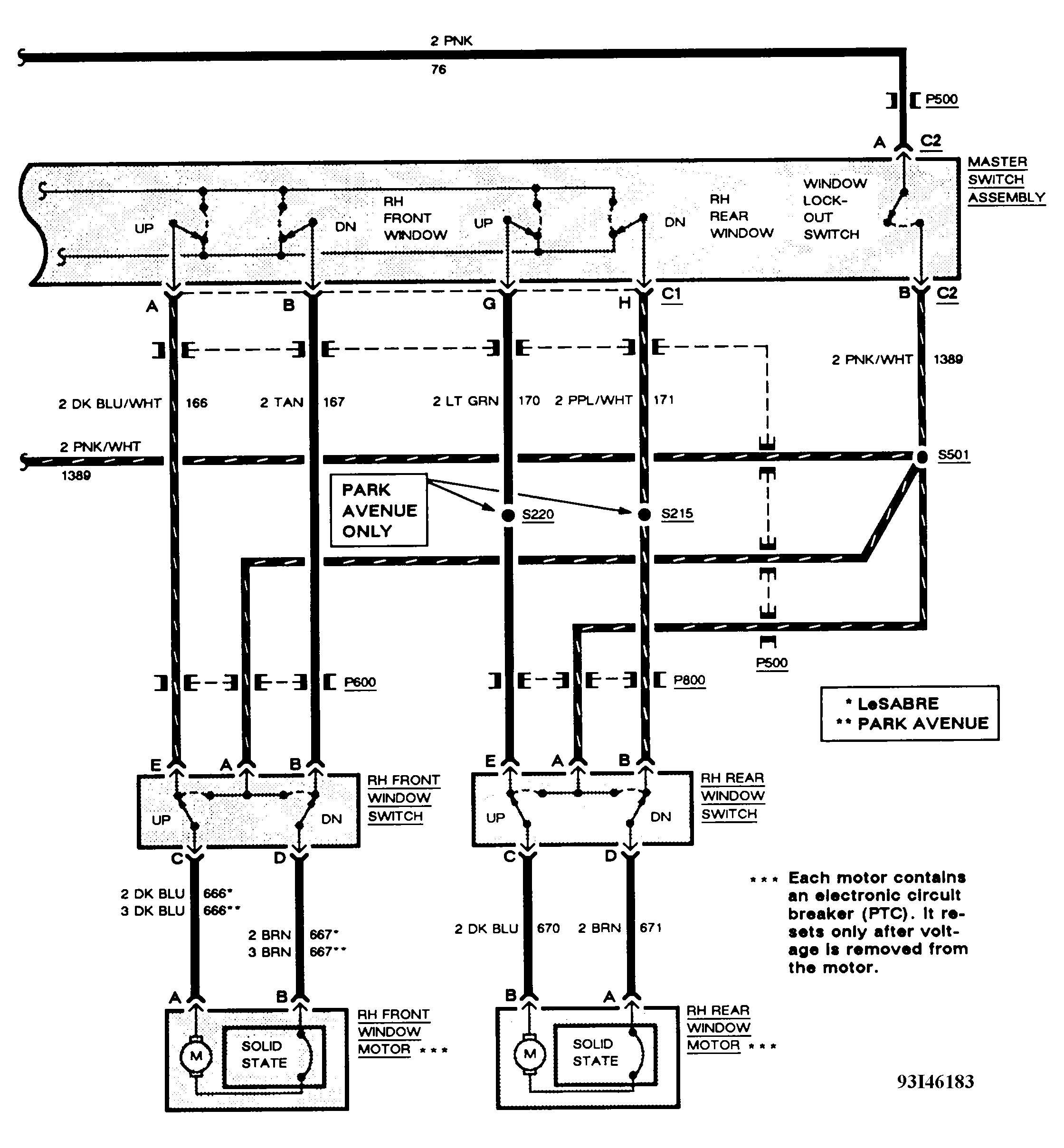

Fig 2: Wiring Diagram (Eighty-Eight, Ninety-Eight - 2 Of 2)
G93I46183Courtesy of GENERAL MOTORS CORP.
