Engine Compartment View

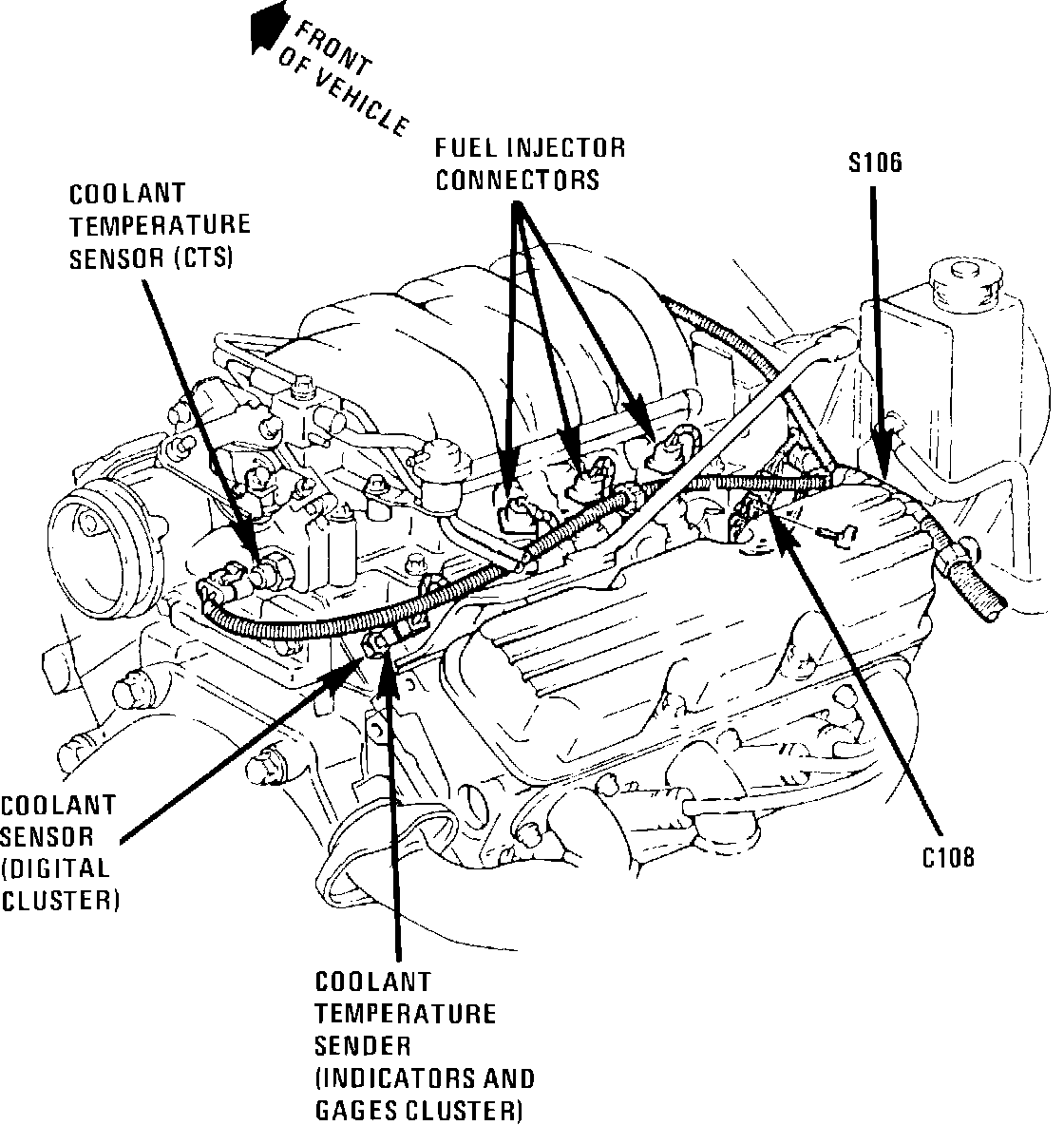

View - Left Rear Of Engine:





LEFT REAR VIEW OF ENGINE

CLOCKWISE FROM TOP

Fuel Injectors And Connectors
Coolant Temperature Sensor (gauge/warning lights)
Coolant Temperature Sensor (computer)
