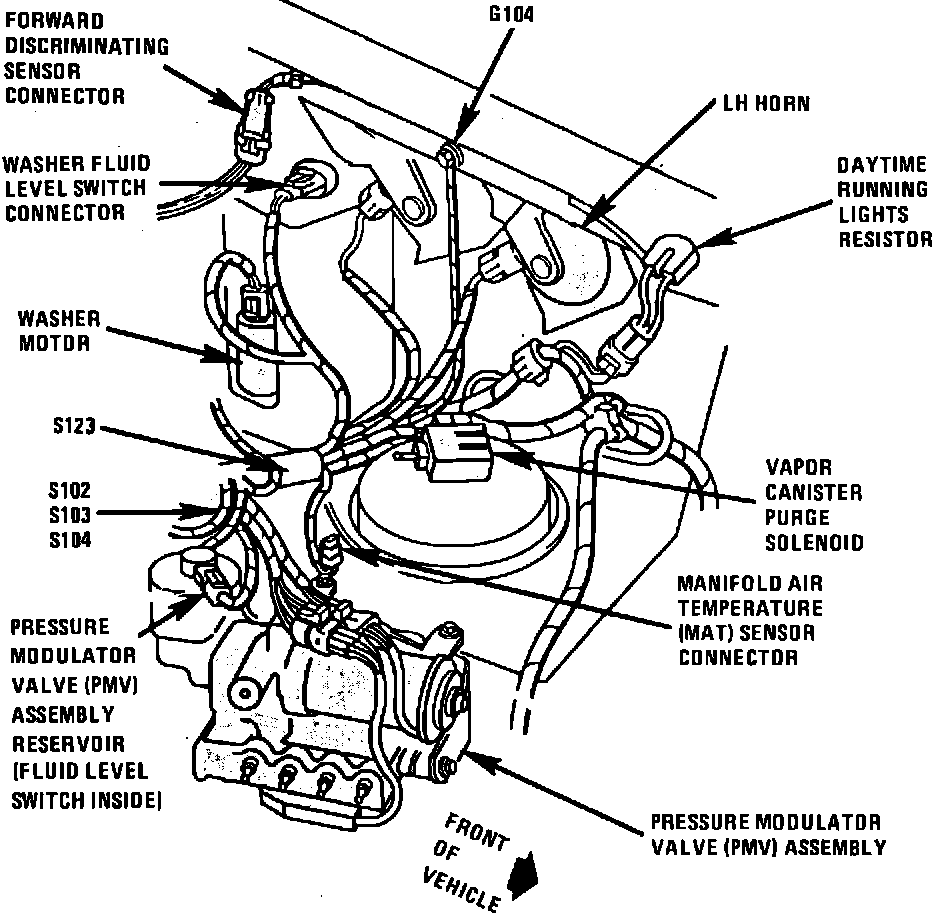

Pressure Modulator Valve Assembly

LH Side Of Engine Compartment:




Lower Front Of Engine Compartment, Right Of Strut Tower

Applicable to: Ninety Eight, Park Avenue & 1992 Bonneville, Eighty Eight & LeSabre
