Removal & Installation

Remove glove box. Disconnect wiring from retainer. Remove relay center. Remove 3 screws from relay bracket. Remove relay center bracket. Remove 2 module screws. Disconnect electrical connector, and remove module. See Fig 1 . To install, reverse removal procedure.

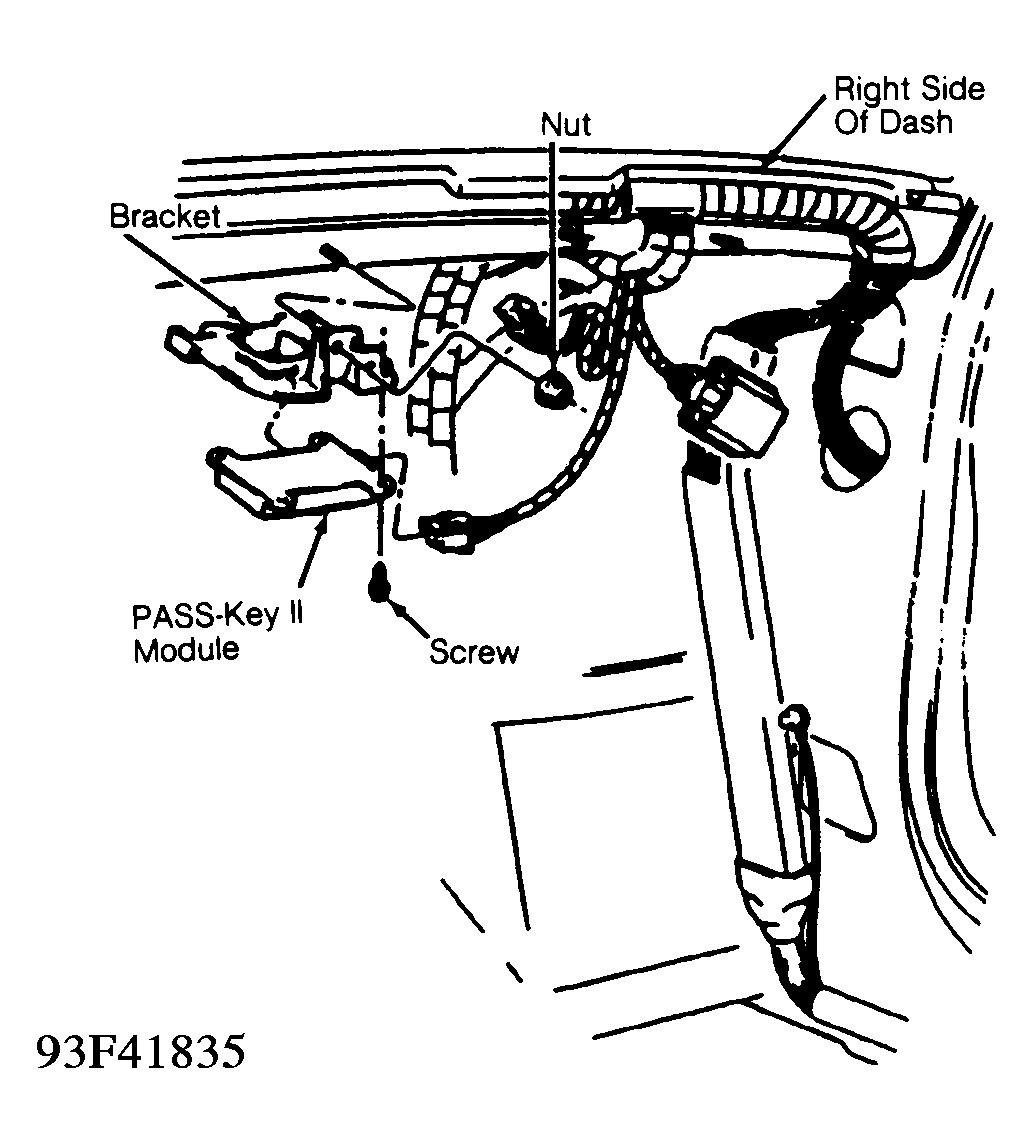

Fig 1: Removing PASS-Key(R) Module

Courtesy of GENERAL MOTORS CORP.
