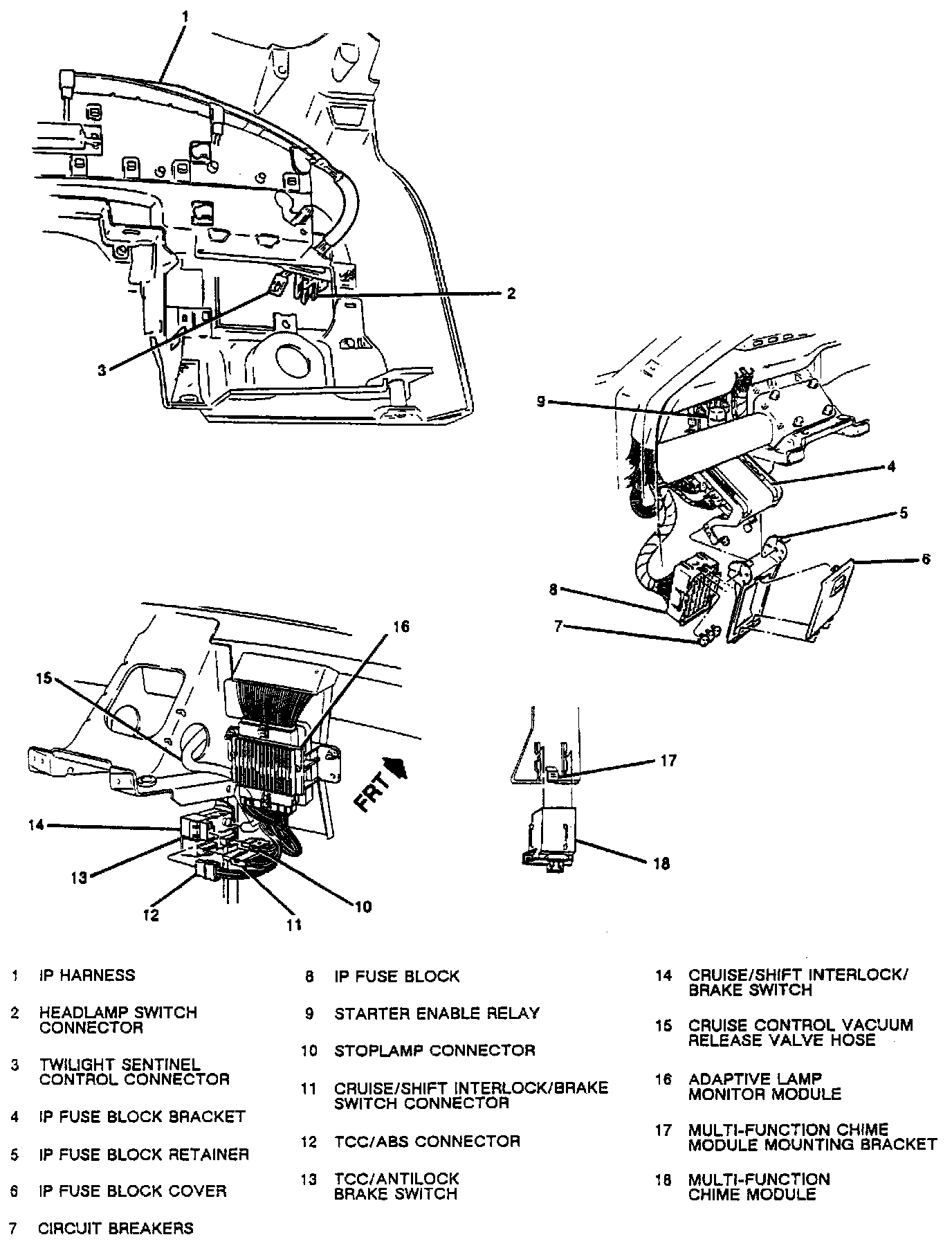

I/P Fuse Block

Behind LH Side of I/P, Left of Steering Column:




Dash Wiring (Left Side):





Behind LH side of I/P, behind trim panel
