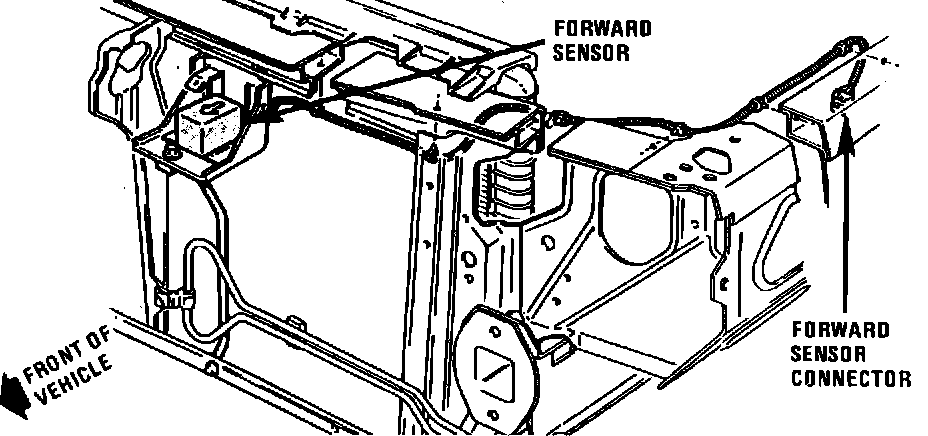

Forward Discriminating Sensor

Center Front Of Vehicle:

Front Of Engine Compartment, Center Of Upper Radiator Support
