Gear Box: Reassembly

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 1991 Pontiac Grand Prix, 1991 Pontiac Grand Am, 1991 Pontiac Firebird, 1991 Pontiac Bonneville, and 1991 Pontiac 6000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install intermediate gear and new intermediate gear retainer. Install inner spacer washer onto large gear tube. Install large gear, spacer washer and shield. Use shim washers to obtain .001-.010" (.03-.26 mm) end play.
    NOTE: Move drive and lock pawls as required to fit respective pins in gear pockets. Ensure drive plate is firmly against gear.
  2. Install retaining ring (in place of thrust collar on original motor). Install rubber seal cap. Install crank arm (check crank arm for proper position in park position). See Fig 1 . Tighten crank arm nut to 31 ft. lbs. (42 N.m).

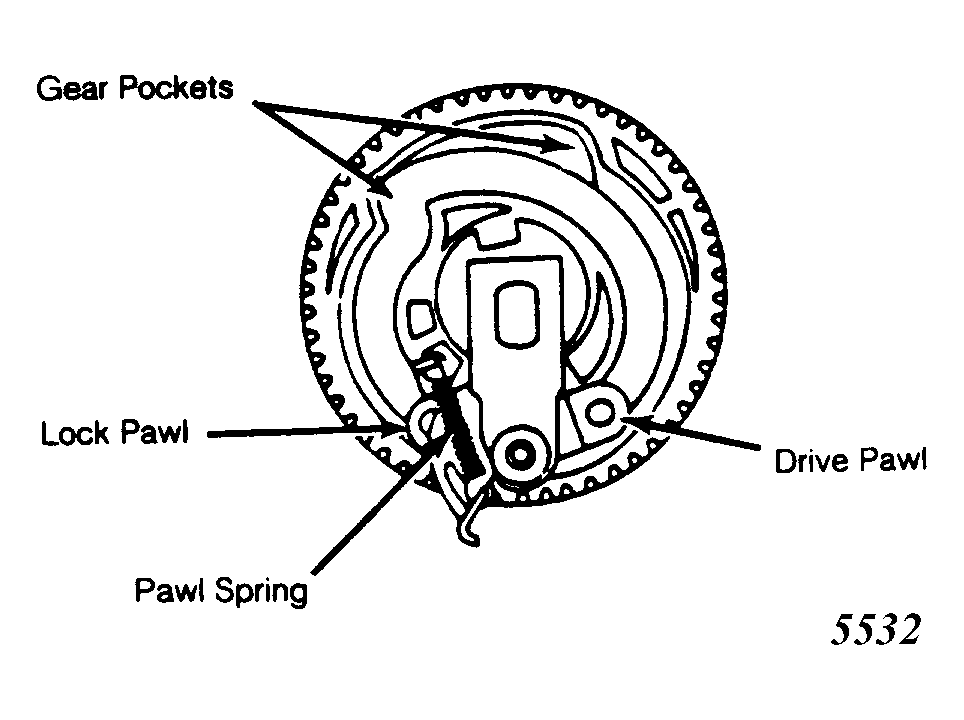

Fig 1: Examining Gear Pawl Alignment In Park Position
G5532Courtesy of GENERAL MOTORS CORP.
