Ignition Control Module

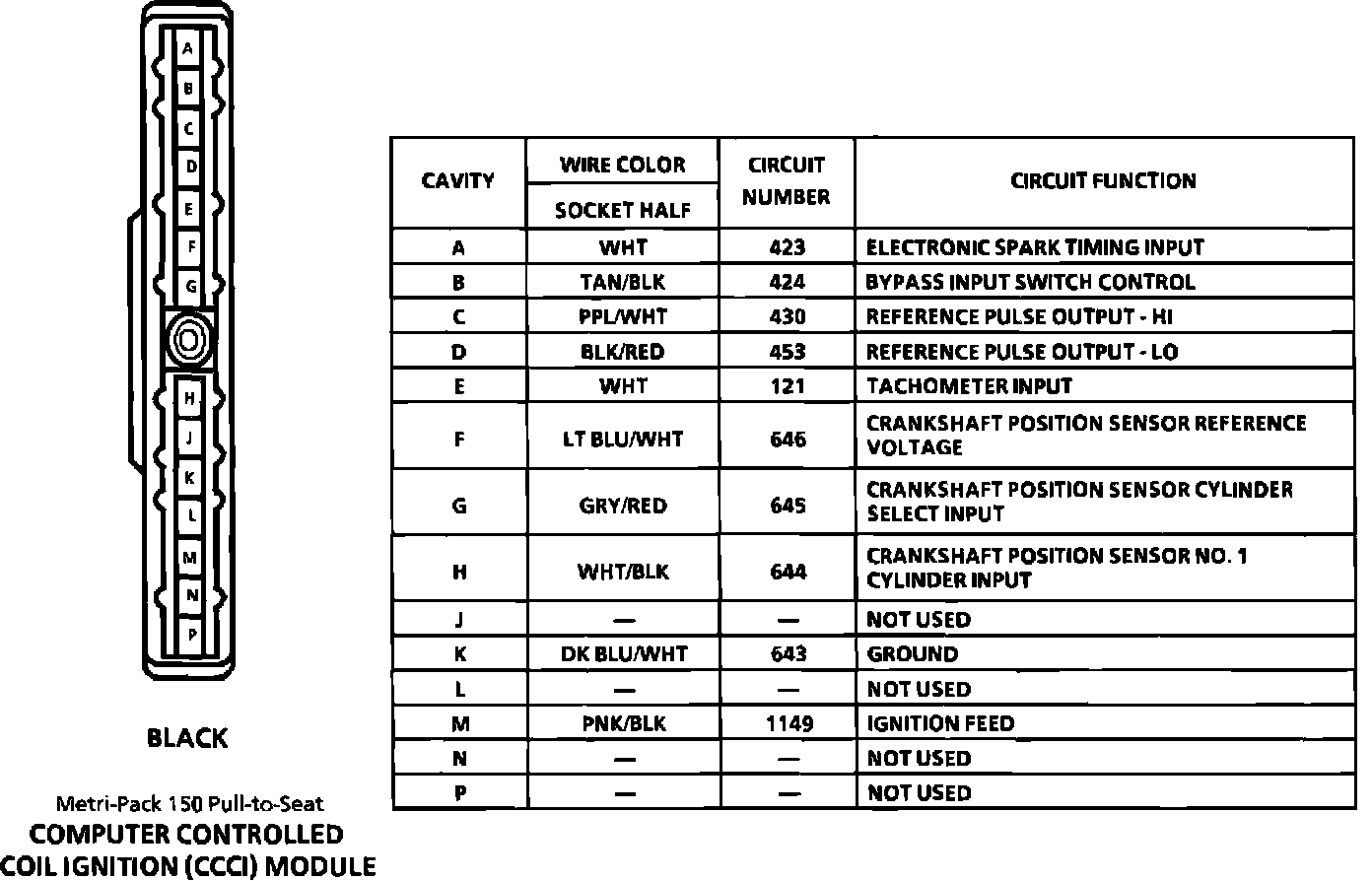

Computer Controlled Coil Ignition (CCCI) Module Connector Face:



Direct Ignition System (DIS) Connector Face:
