Audio Alarm Module

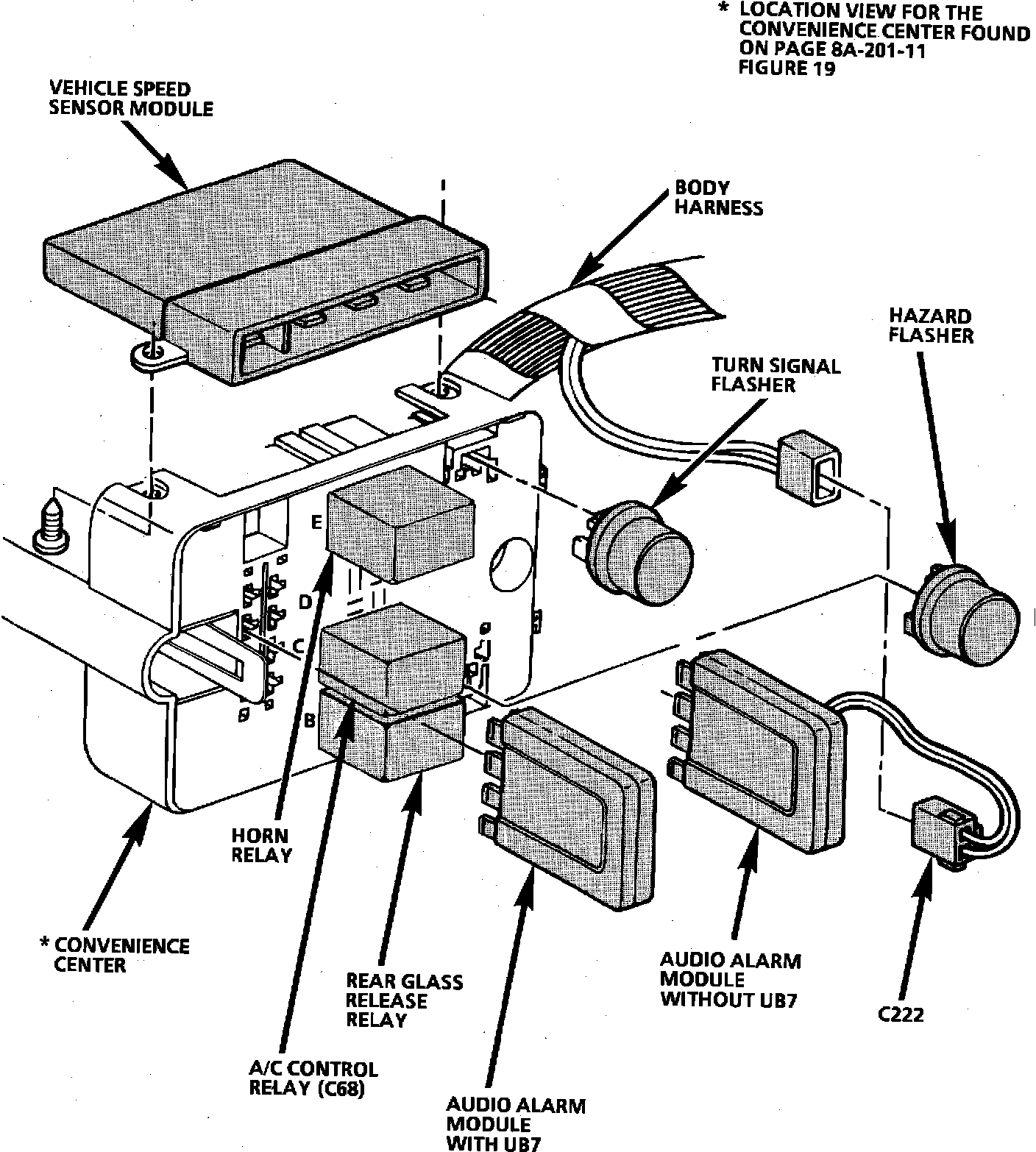

Component Location View. Convenience Center:

In Convenience Center, forward of Park Brake
