Test F: Power Window Only Operates From Master Power Window Switch
For testing procedure, see
Fig 1
.

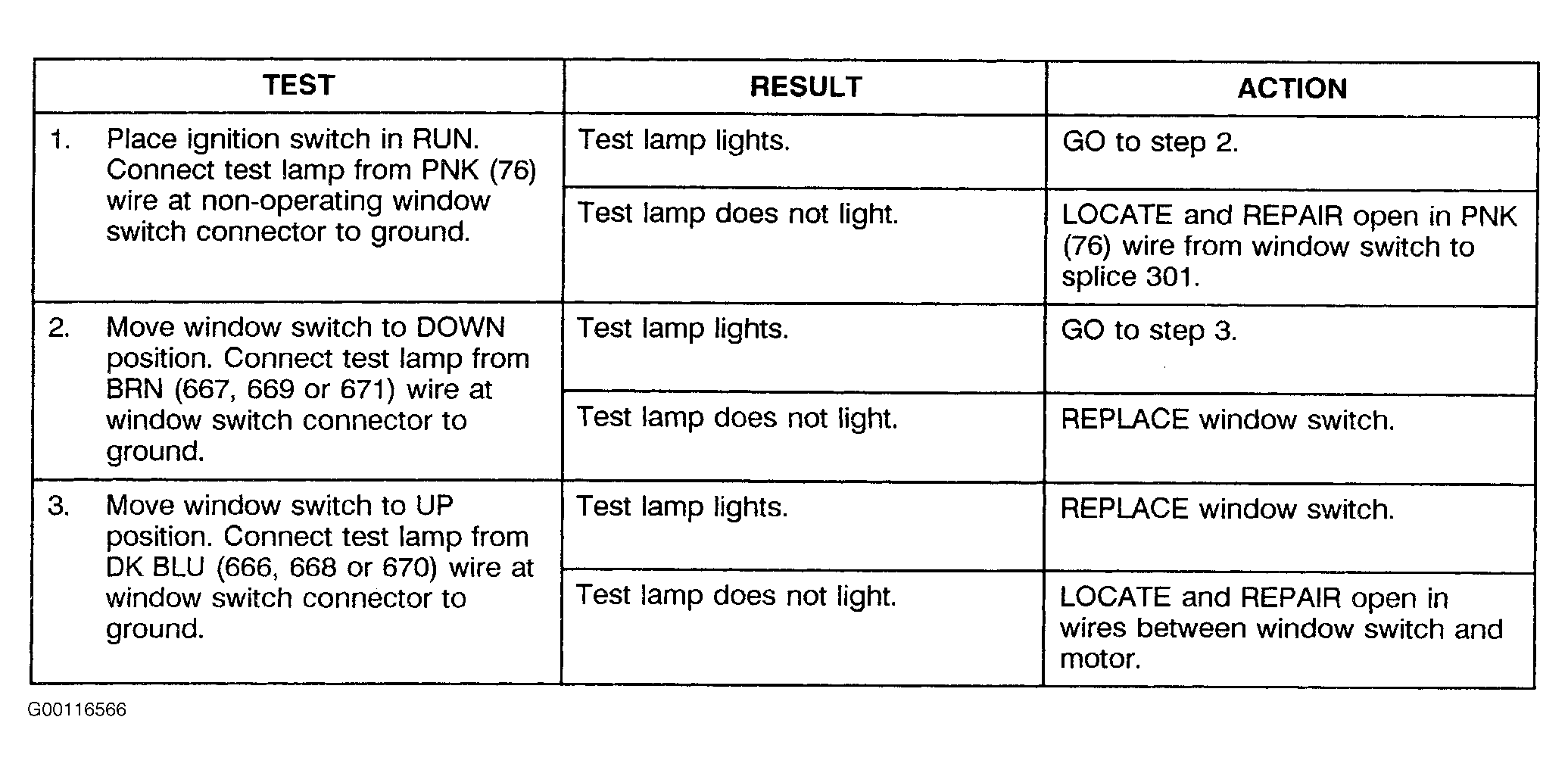

Fig 1: Power Window Only Operates From Master Power Window Switch
Courtesy of GENERAL MOTORS CORP.
