Power Window Switch

LH Rear Window Switch Connector Face:



Master Switch Assembly (2 Door) Connector Face:

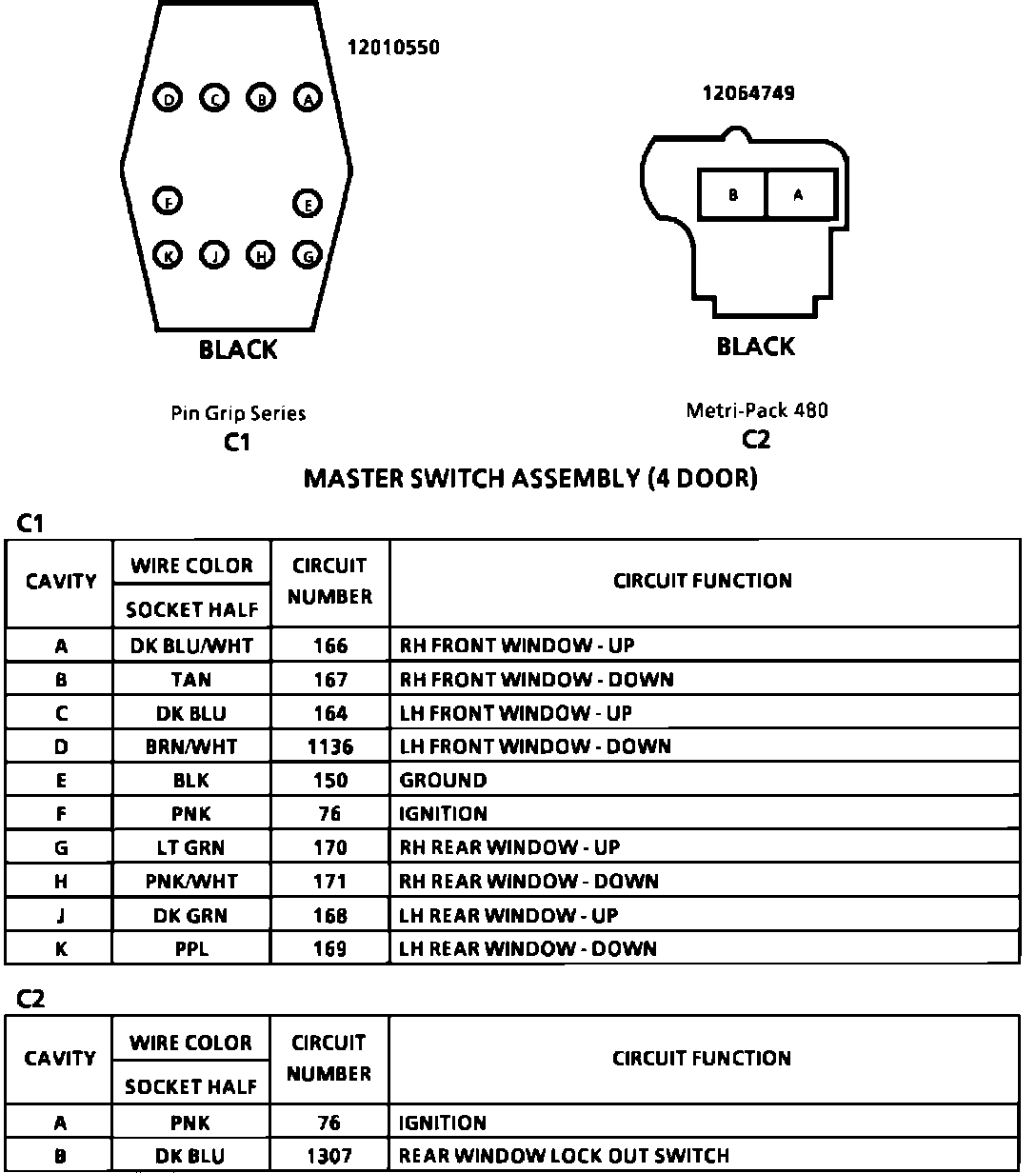

Master Switch Assembly (4 Door) Connector Face:
