Home >> Oldsmobile >> 1992 >> Achieva V6-3300 3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Electronic Control Module (ECM) >> C1

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

C1

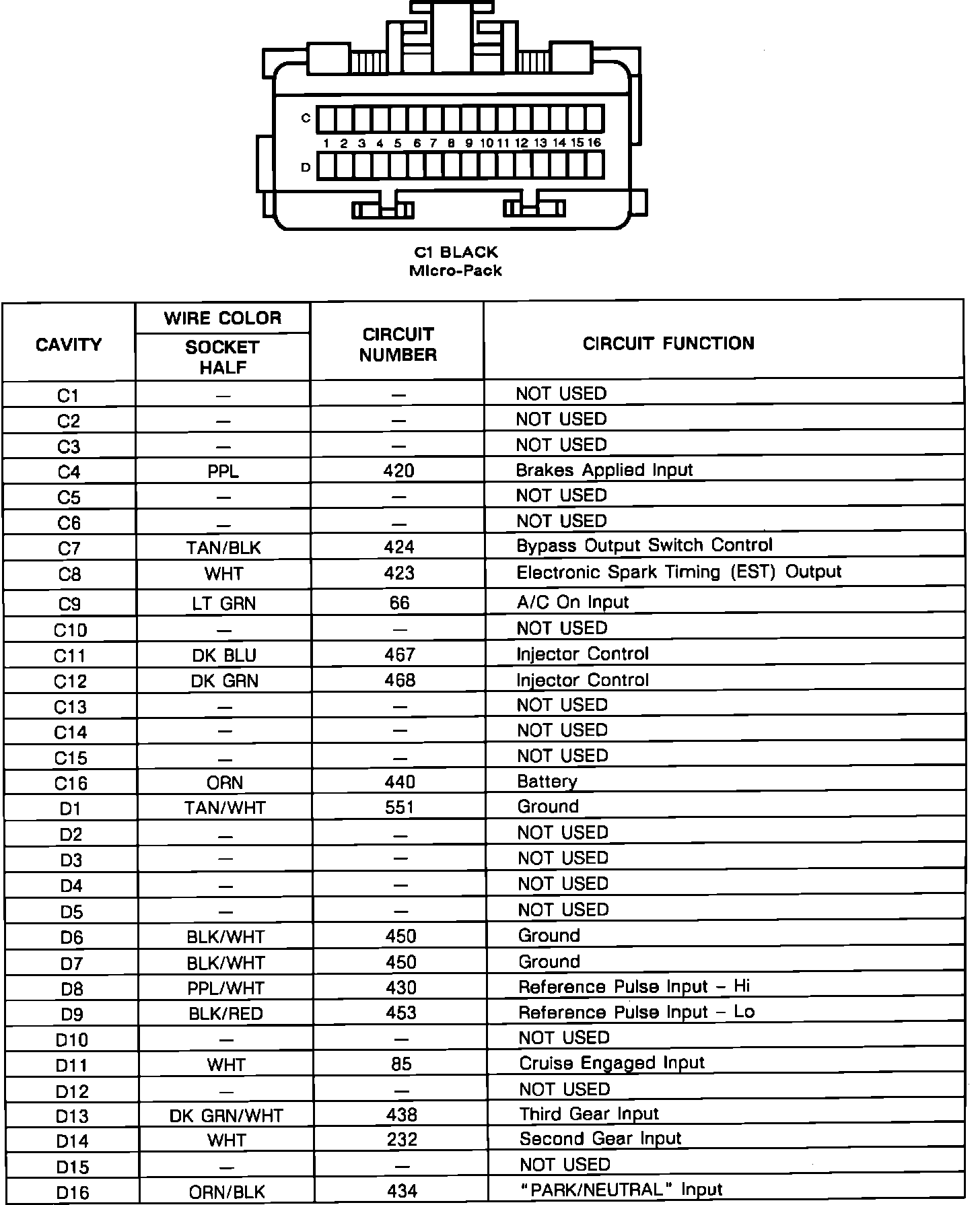

ECM Connector C1:
