Component Locations

COMPONENT LOCATIONS

Component Location
Fuse Block Behind Instrument Panel, Left Of Steering Column. See Fig 1
Power Window Control Module Lower Front Of Door. See Fig 3 Or Fig 4
Power Window Motor In Lower Front Of Respective Door. See Fig 3 Or Fig 4
C204 (24-Cavity) Under Left Side Of Instrument Panel, Near Shroud. See Fig 6
G302 Under Left Front Seat. See Fig 7
P500 Left Front Door Jamb. See Fig 2 Or Fig 4
P600 Right Front Door Jamb. See Fig 2 Or Fig 4
P700 Left Rear Door Jamb. See Fig 5
P800 Right Rear Door Jamb. See Fig 5
S306 In Body Harness, Near Upper Left Shroud. See Fig 6
S307 In Body Harness, At Left Front Door Sill. See Fig 7
S312 In Body Harness, Under Left Front Seat. See Fig 7
S500 In Body Harness, Near Bottom Of Left Shroud. See Fig 6

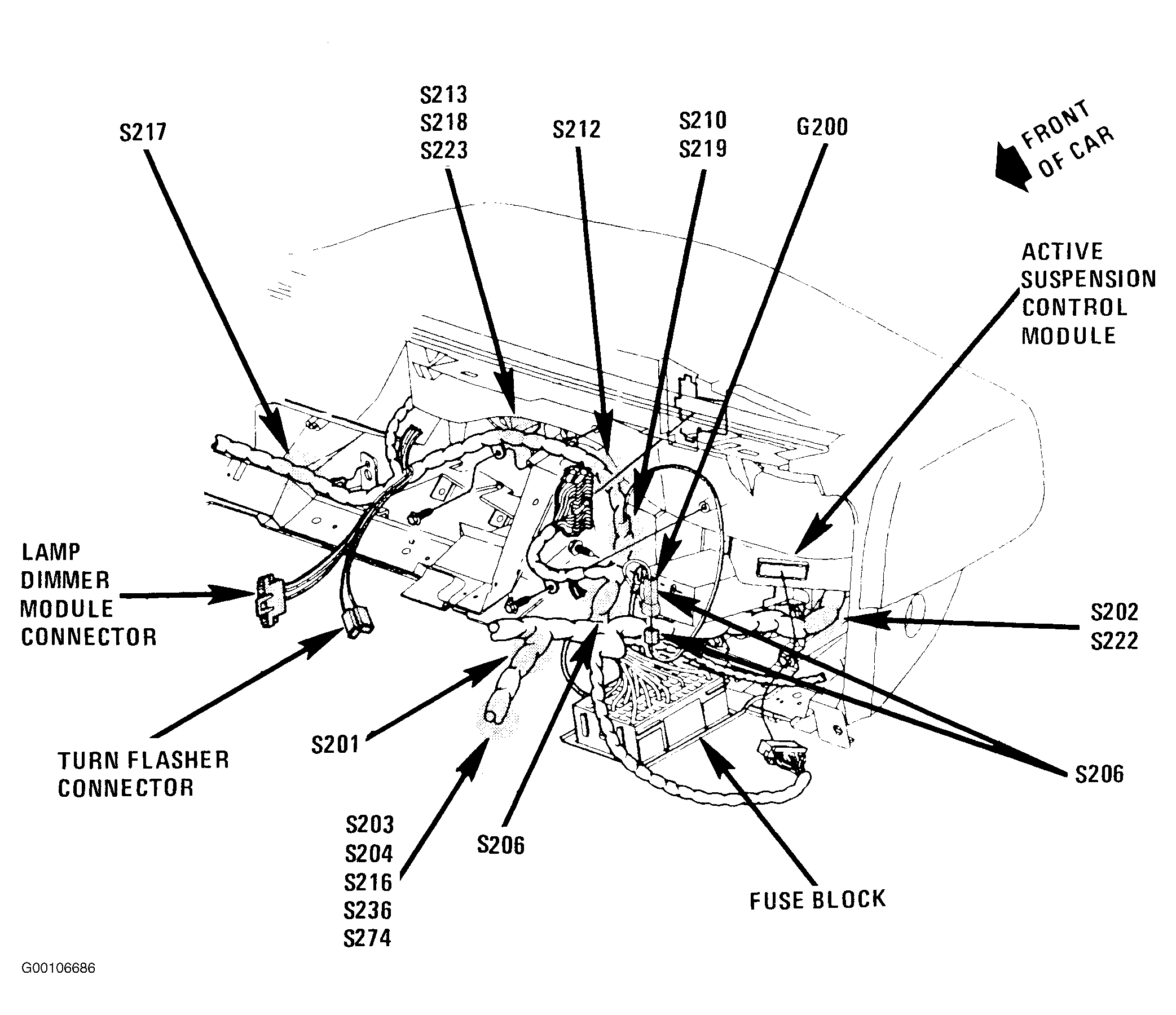

Fig 1: Identifying Components Behind Left Side Of Instrument Panel
G00106686Courtesy of GENERAL MOTORS CORP.

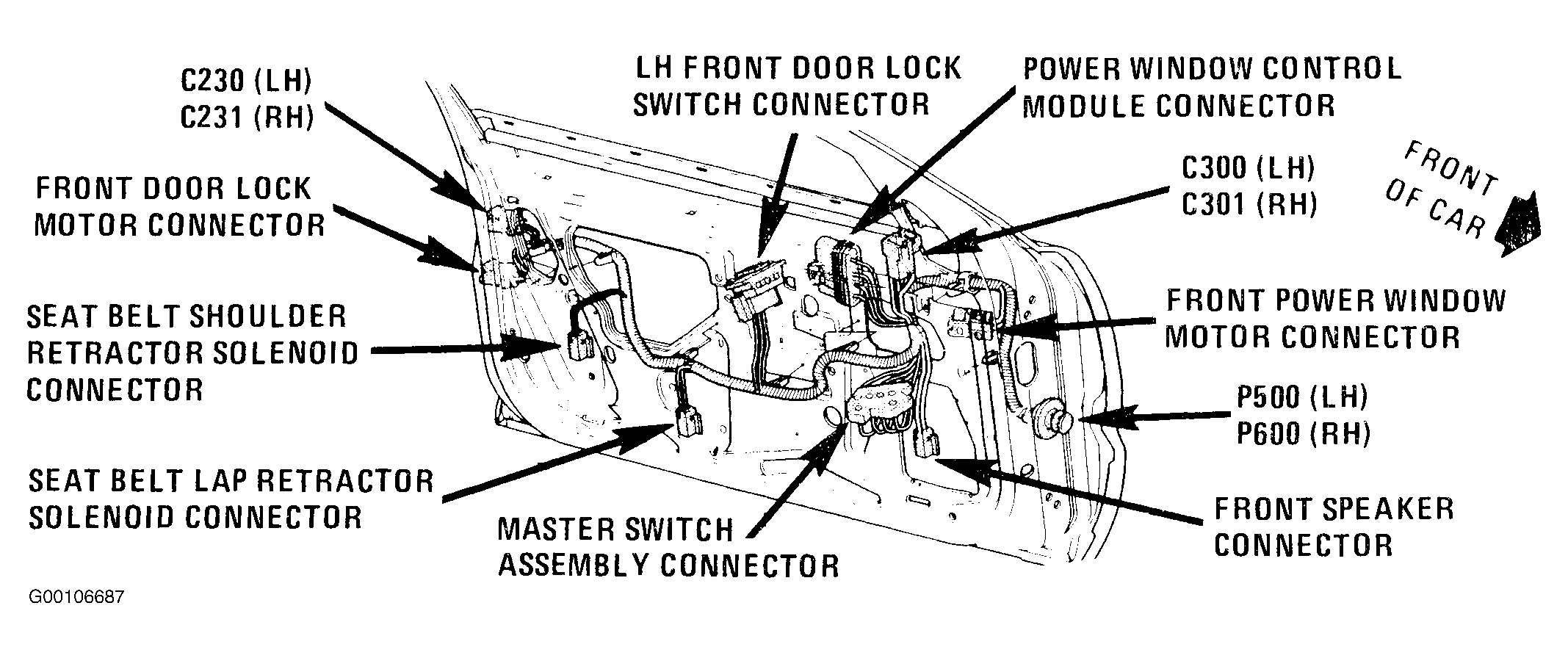

Fig 2: Identifying Left Front Door Components (2-Door Shown, Right Similar)
G00106687Courtesy of GENERAL MOTORS CORP.

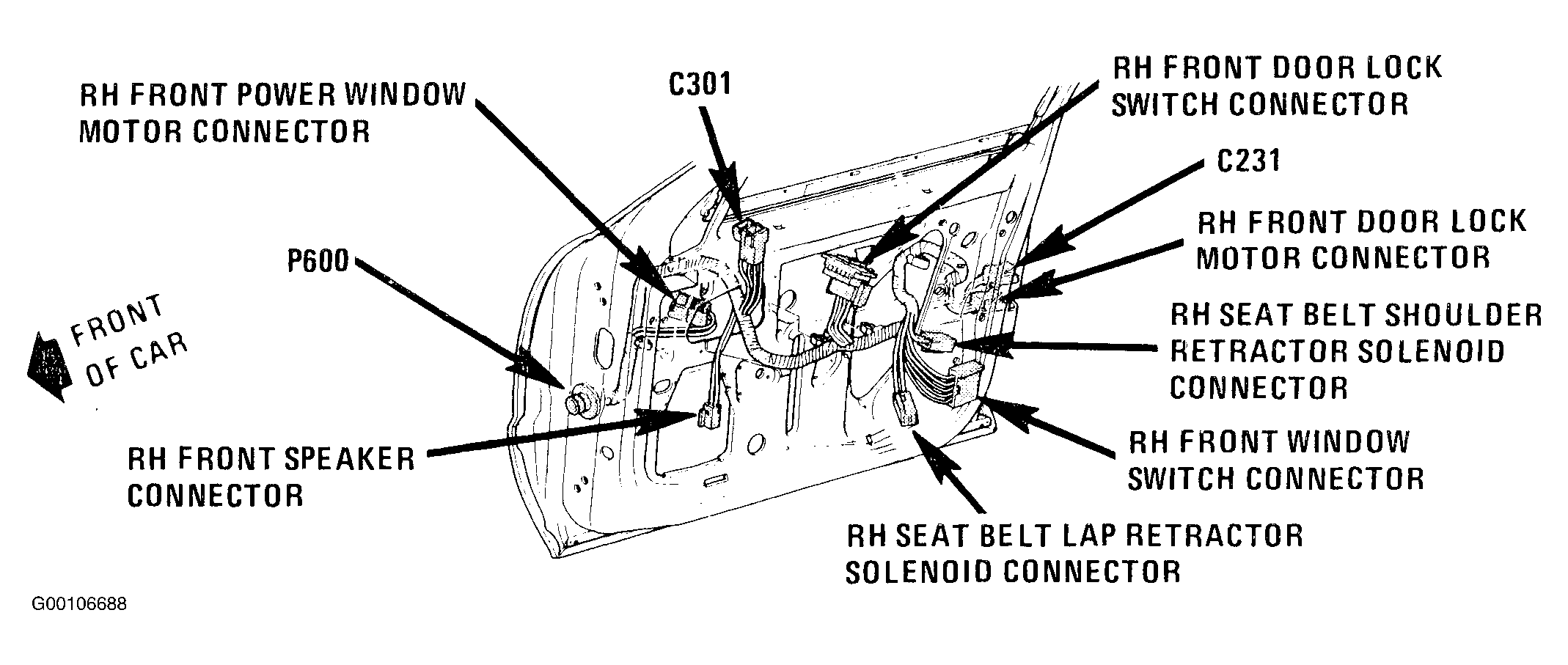

Fig 3: Identifying Right Front Door Components (4-Door Shown, Left Similar)
G00106688Courtesy of GENERAL MOTORS CORP.

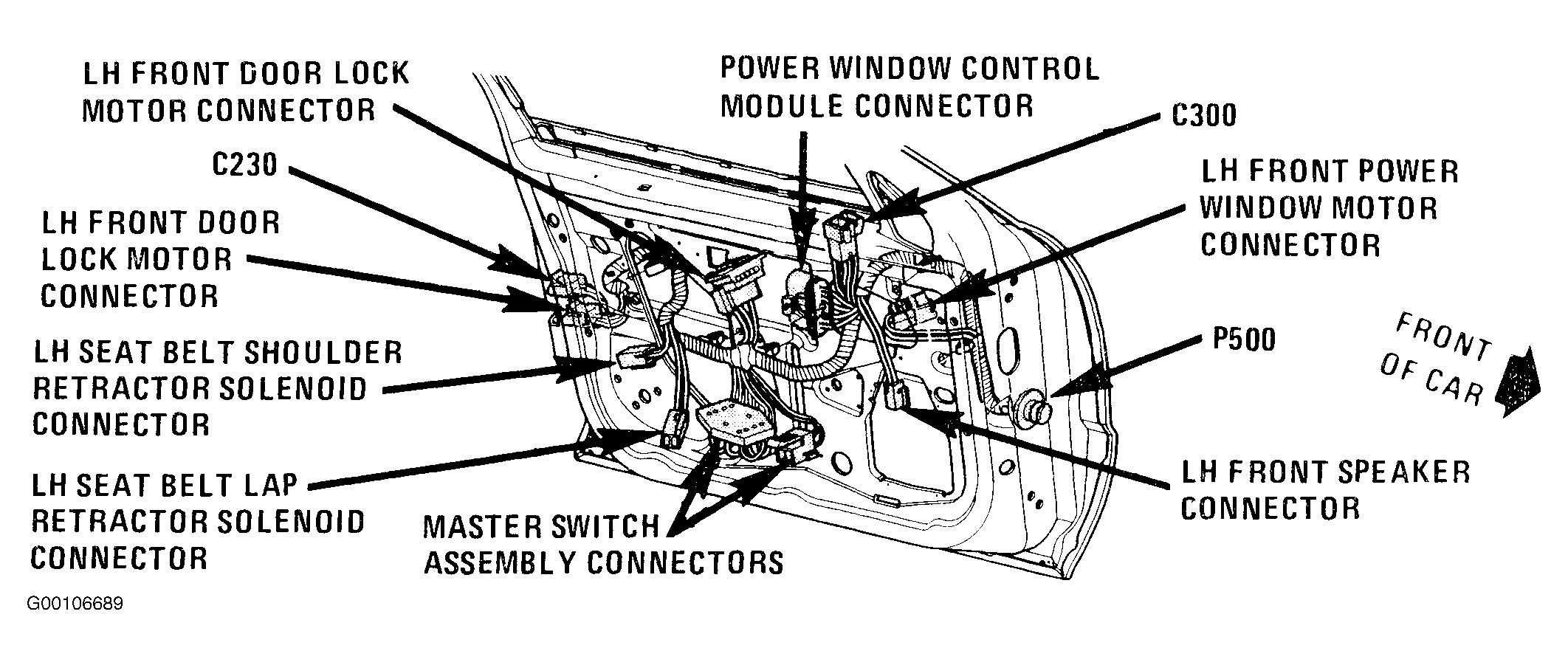

Fig 4: Identifying Left Front Door Components (4-Door Shown, Right Similar)
G00106689Courtesy of GENERAL MOTORS CORP.

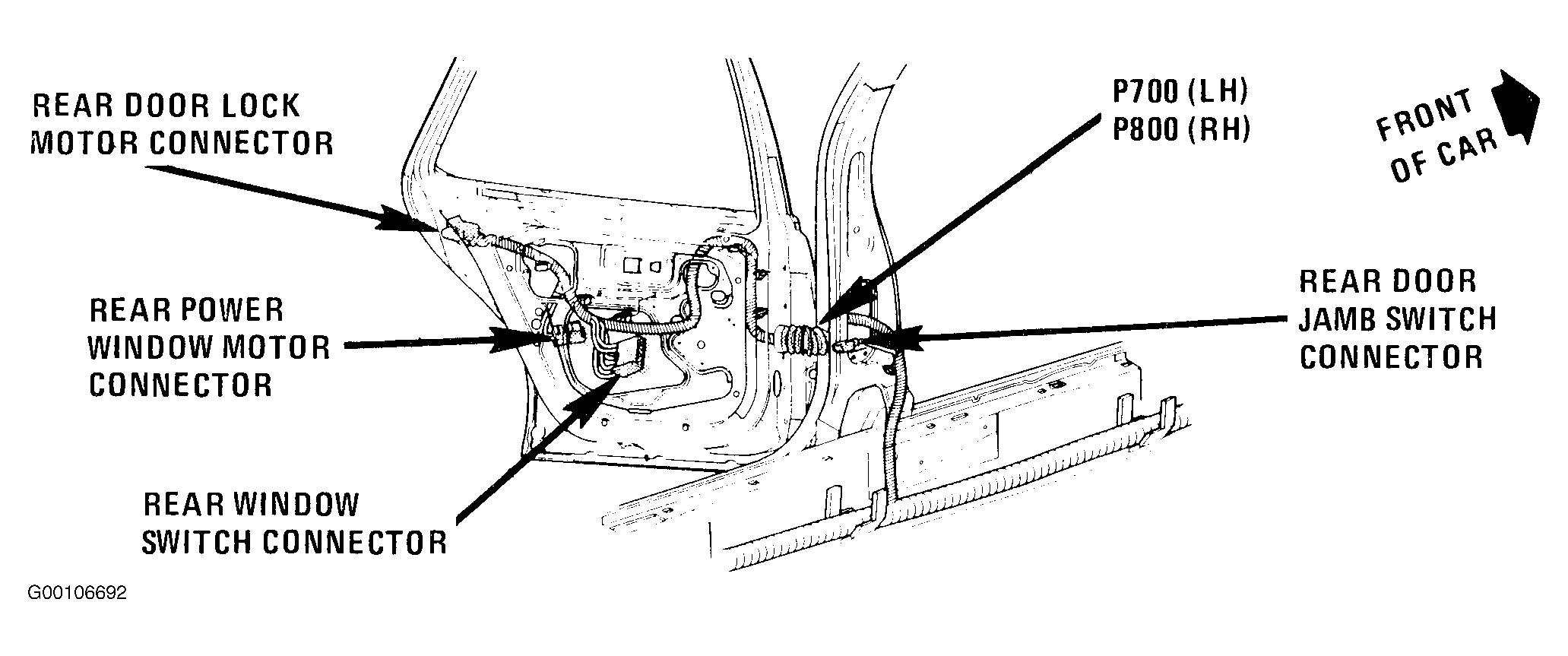

Fig 5: Identifying Left Rear Door Components (Right Similar)
G00106692Courtesy of GENERAL MOTORS CORP.

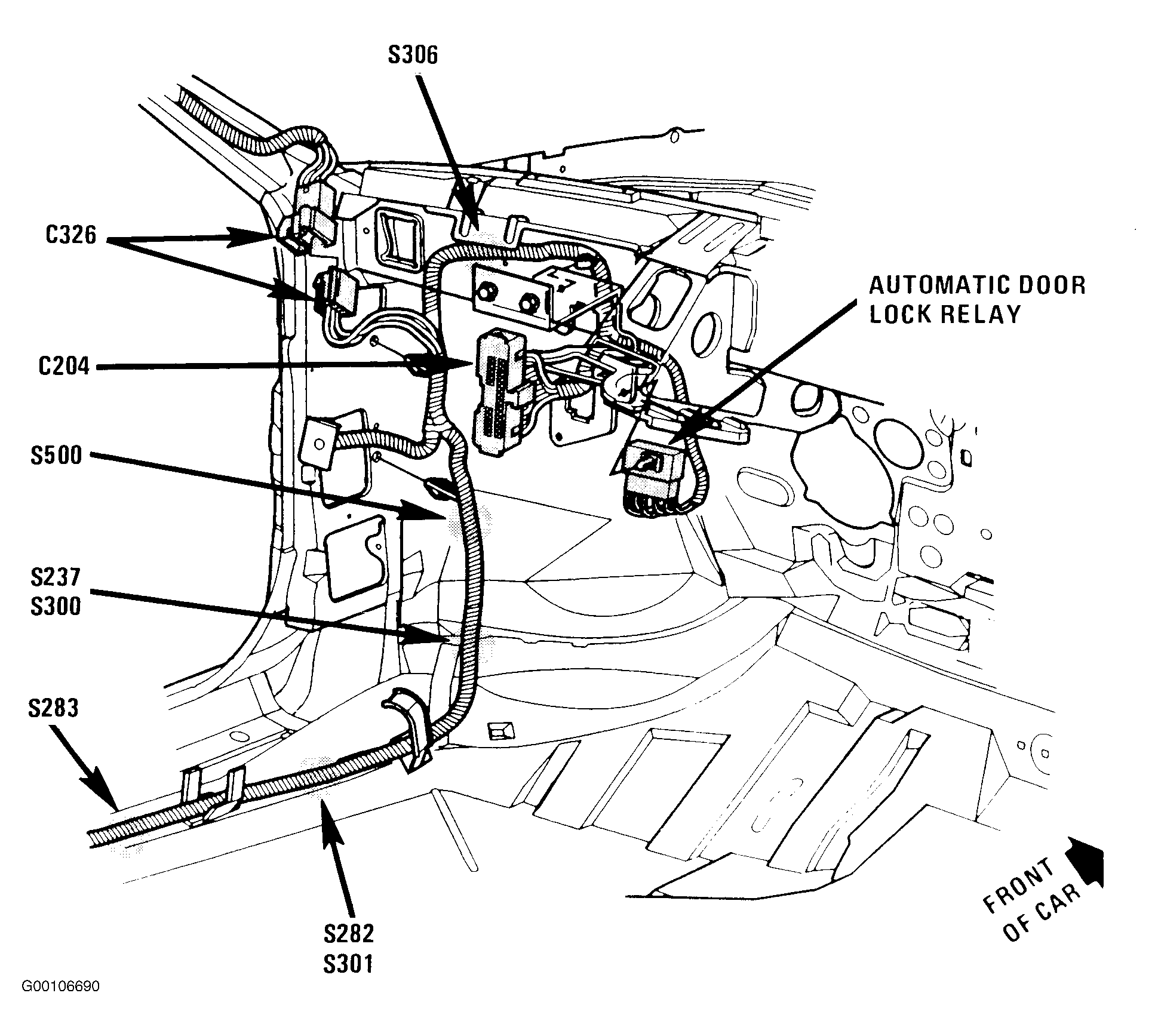

Fig 6: Identifying Components Behind Left Side Of Instrument Panel (4-Door Shown, Right Similar)
G00106690Courtesy of GENERAL MOTORS CORP.

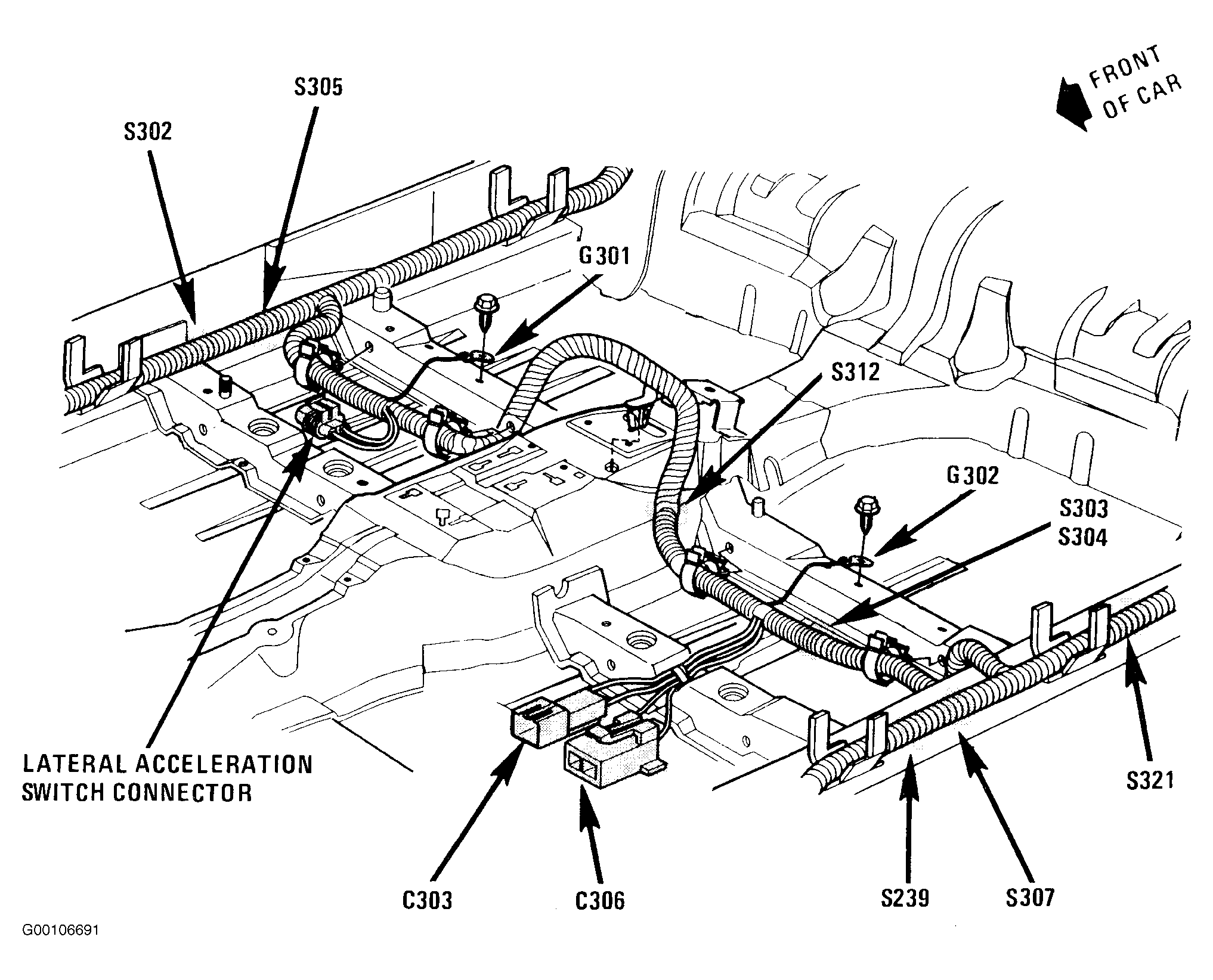

Fig 7: Identifying Center Of Passenger Compartment Components (4-Door Shown, Right Similar)
G00106691Courtesy of GENERAL MOTORS CORP.
