Test A: Remote Keyless Entry Pin-Out Check

NOTE: If symptom persists and all checks have been performed and measurements are correct, replace remote keyless entry module. See KEYLESS ENTRY MODULE under REMOVAL & INSTALLATION.

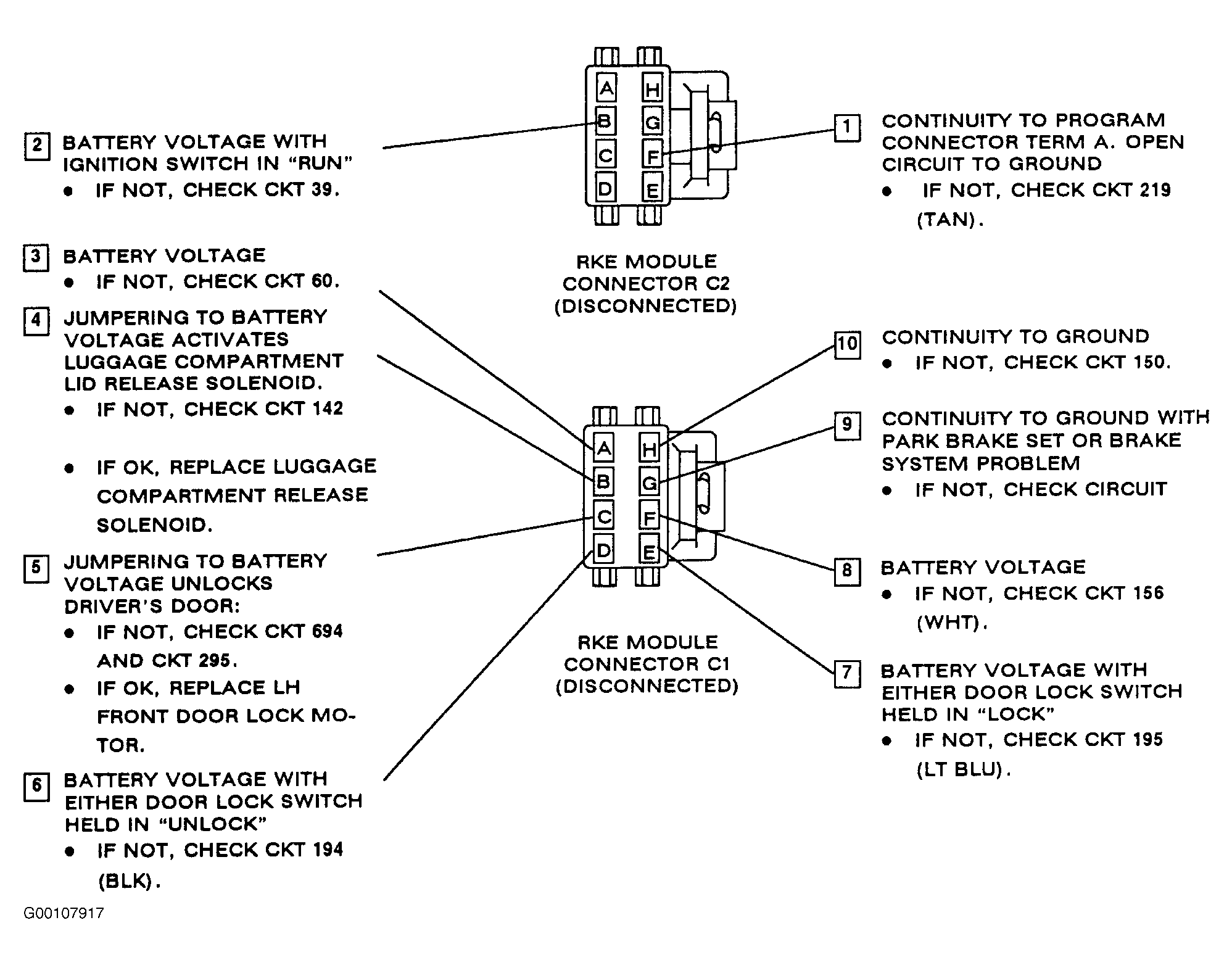

Fig 1: Test A: Remote Keyless Entry Pin-Out Check

Courtesy of GENERAL MOTORS CORP.
