Keyless Entry Module: Removal

  1. Remove negative battery cable.
  2. Remove left inner panel trim.
  3. Disconnect two electrical connectors. See Fig 1 .
  4. Drill out module rivets.
  5. Remove module.

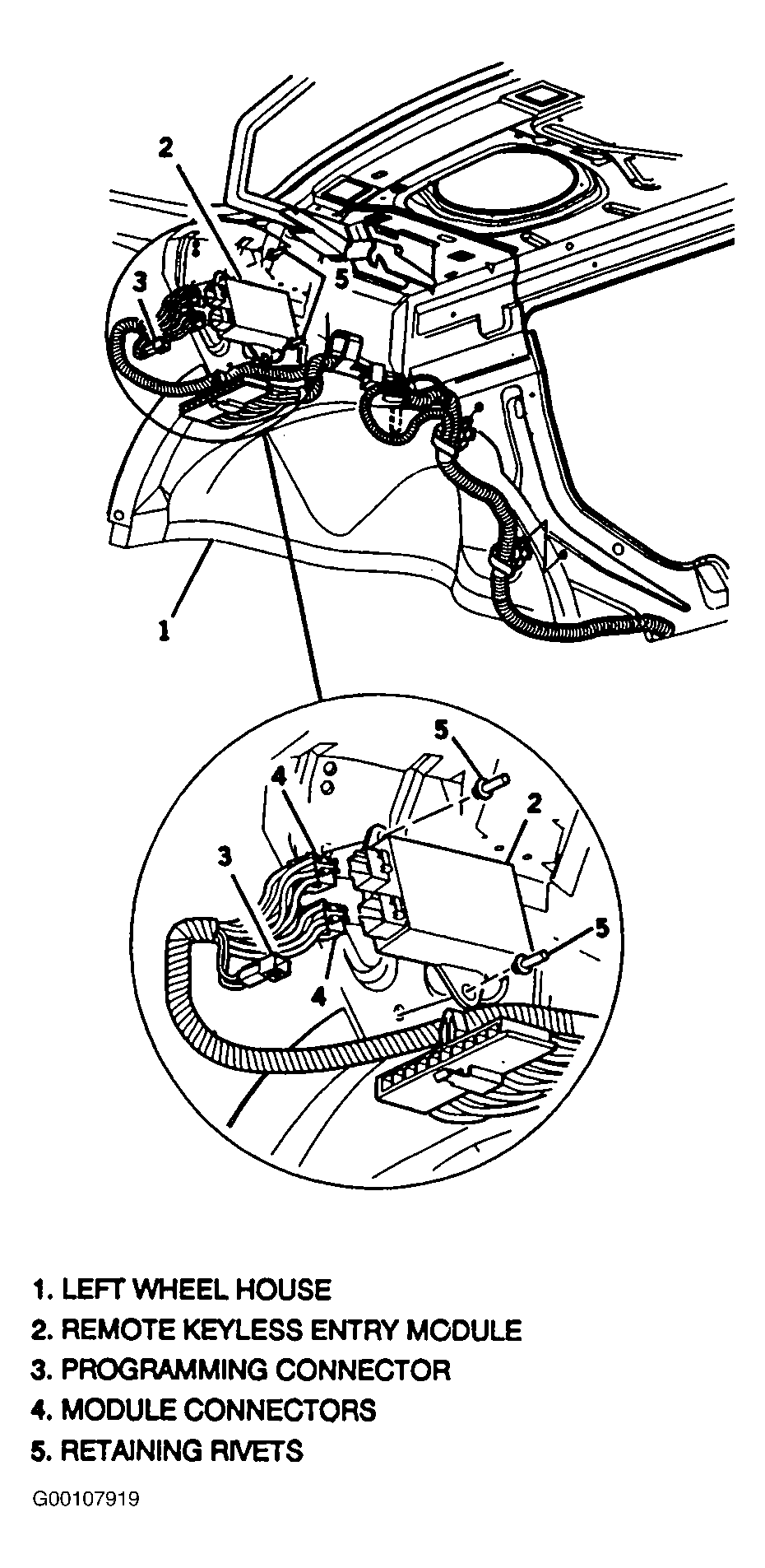

Fig 1: Removing Remote Keyless Entry Module
G00107919Courtesy of GENERAL MOTORS CORP.
