Achieva SL, 4D Sedan, 2.3 D
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Remote Keyless Entry System
>>
Connector Identification
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector Identification

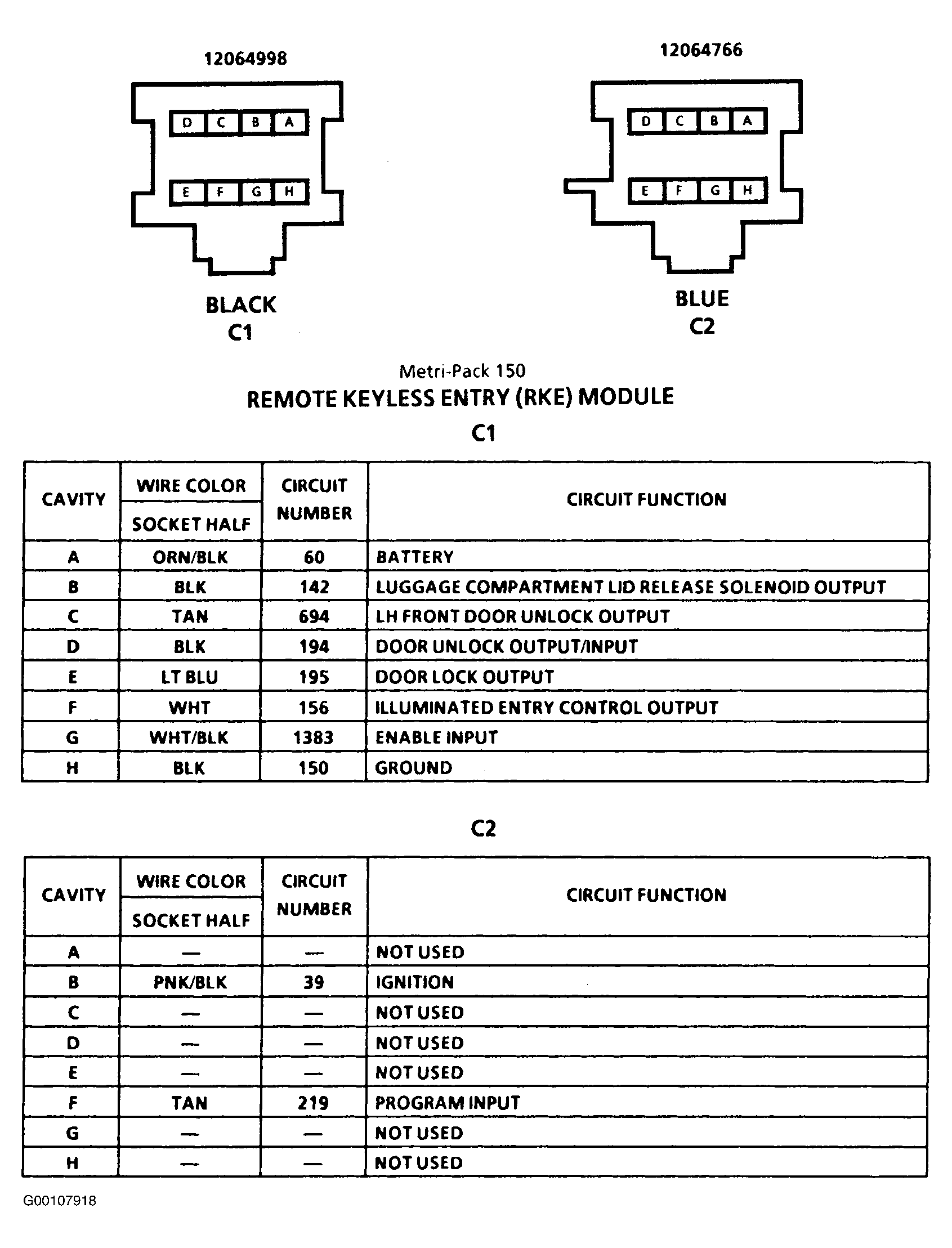

Fig 1: Identifying Remote Keyless Entry Module Connectors
Courtesy of GENERAL MOTORS CORP.
