Part 3

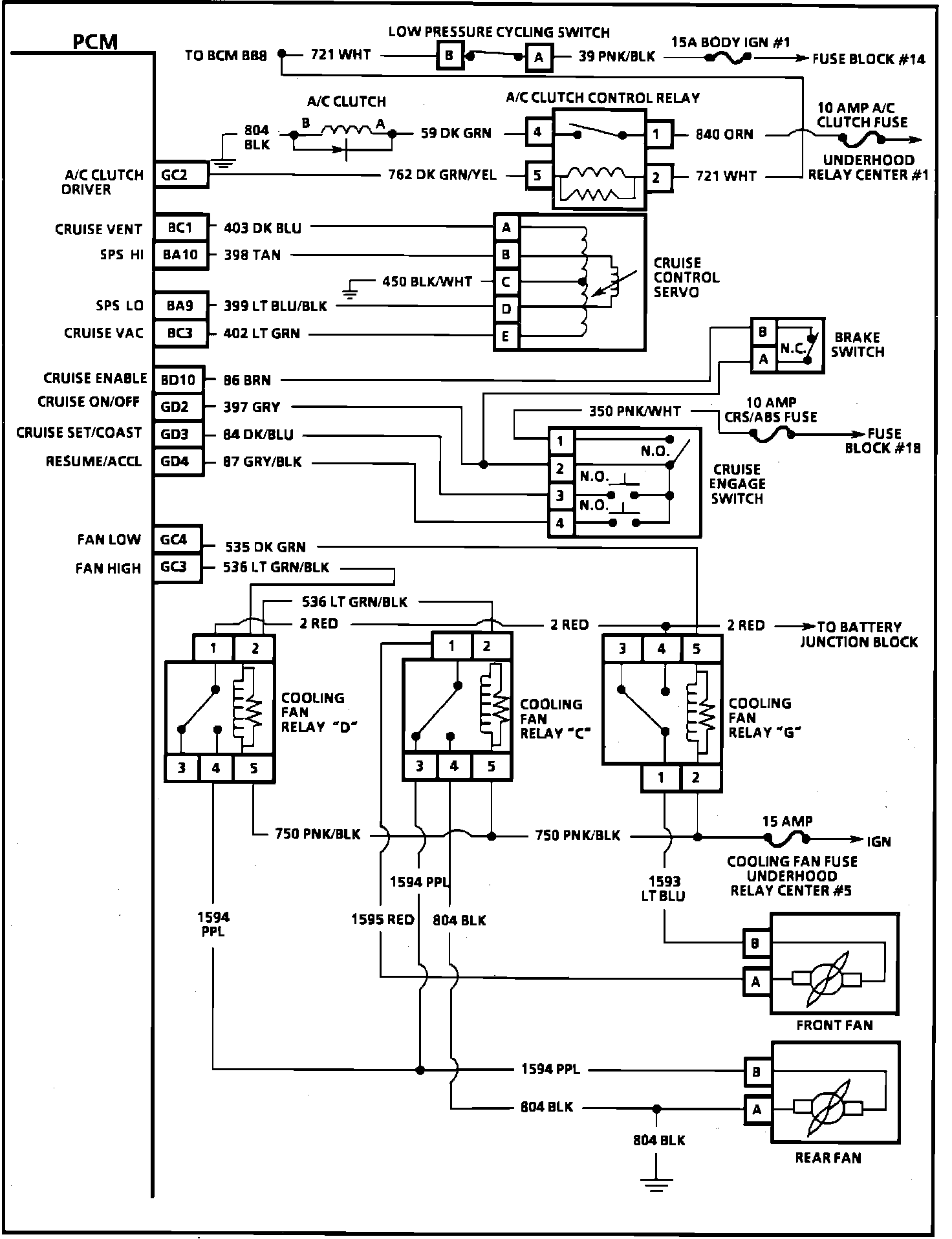

PCM Schematic (3 Of 3):

GC2 = A/C Clutch Driver
BC1 = Cruise Vent
BA10 = SPS HI
BA9 = SPS LO
BC3 = Cruise Vacuum
BD10 = Cruise Enable
GD2 = Cruise ON/OFF
GD3 = Cruise Set/Coast
GD4 = Resume/Accel
GC4 = Fan Low
GC3 = Fan High
