Installation (Driver)

  1. Install electrical connector to switch plate. See Fig 1 .
  2. Position plate to armrest opening rear tab first.
  3. Push down on front until fully seated.

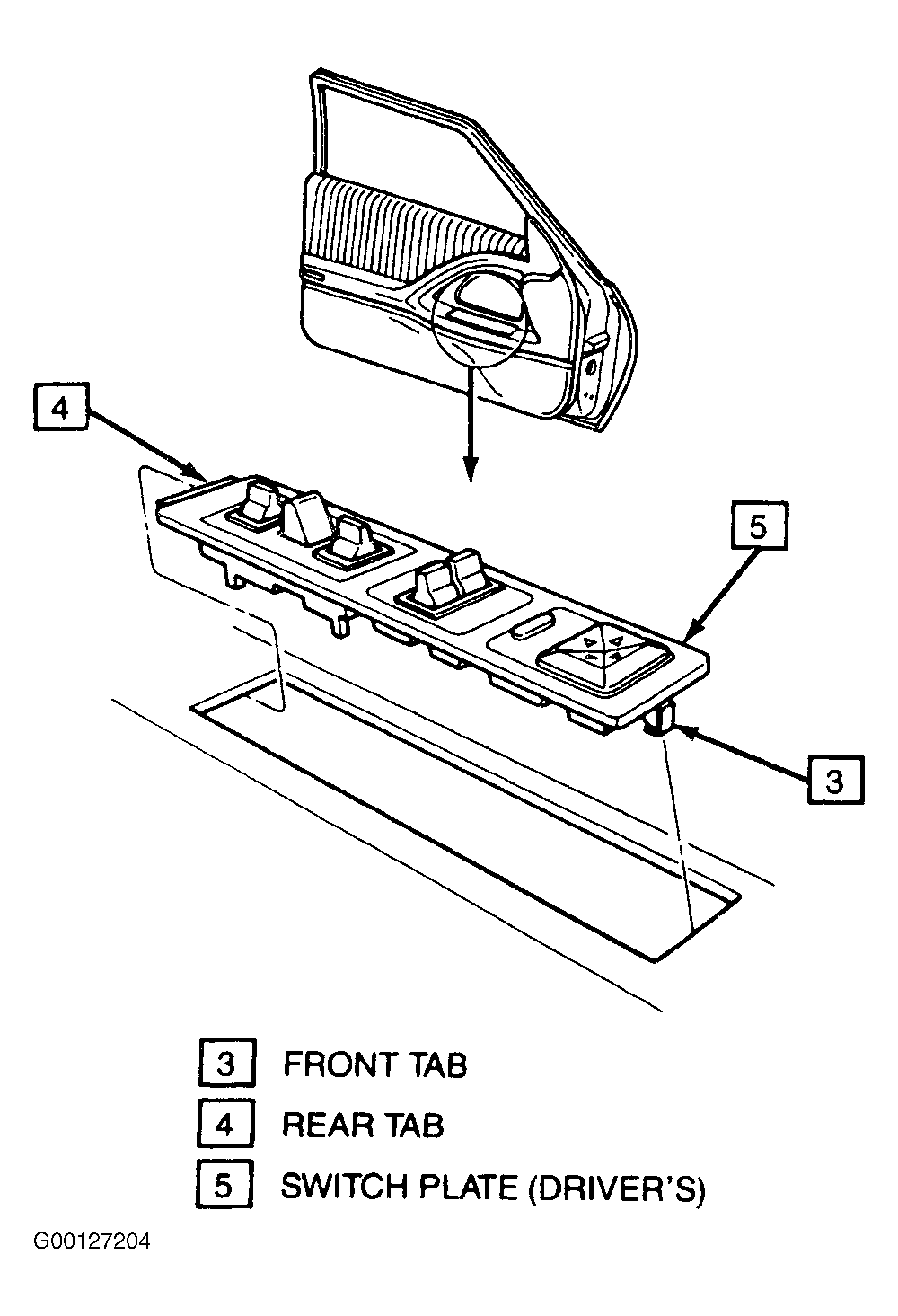

Fig 1: Identifying Switch Plate (Driver)
G00127204Courtesy of GENERAL MOTORS CORP.
