Trouble Shooting: Notes

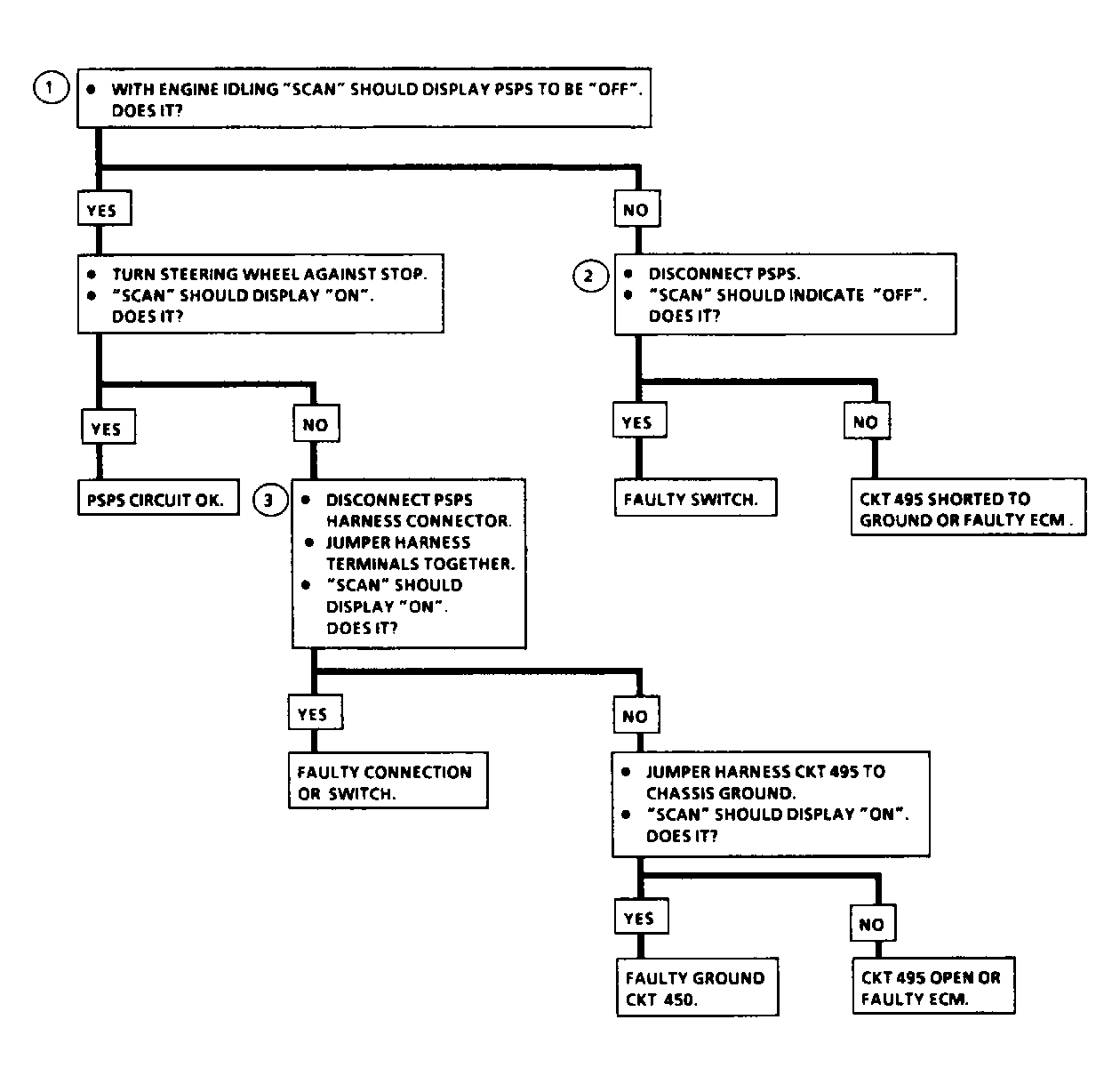

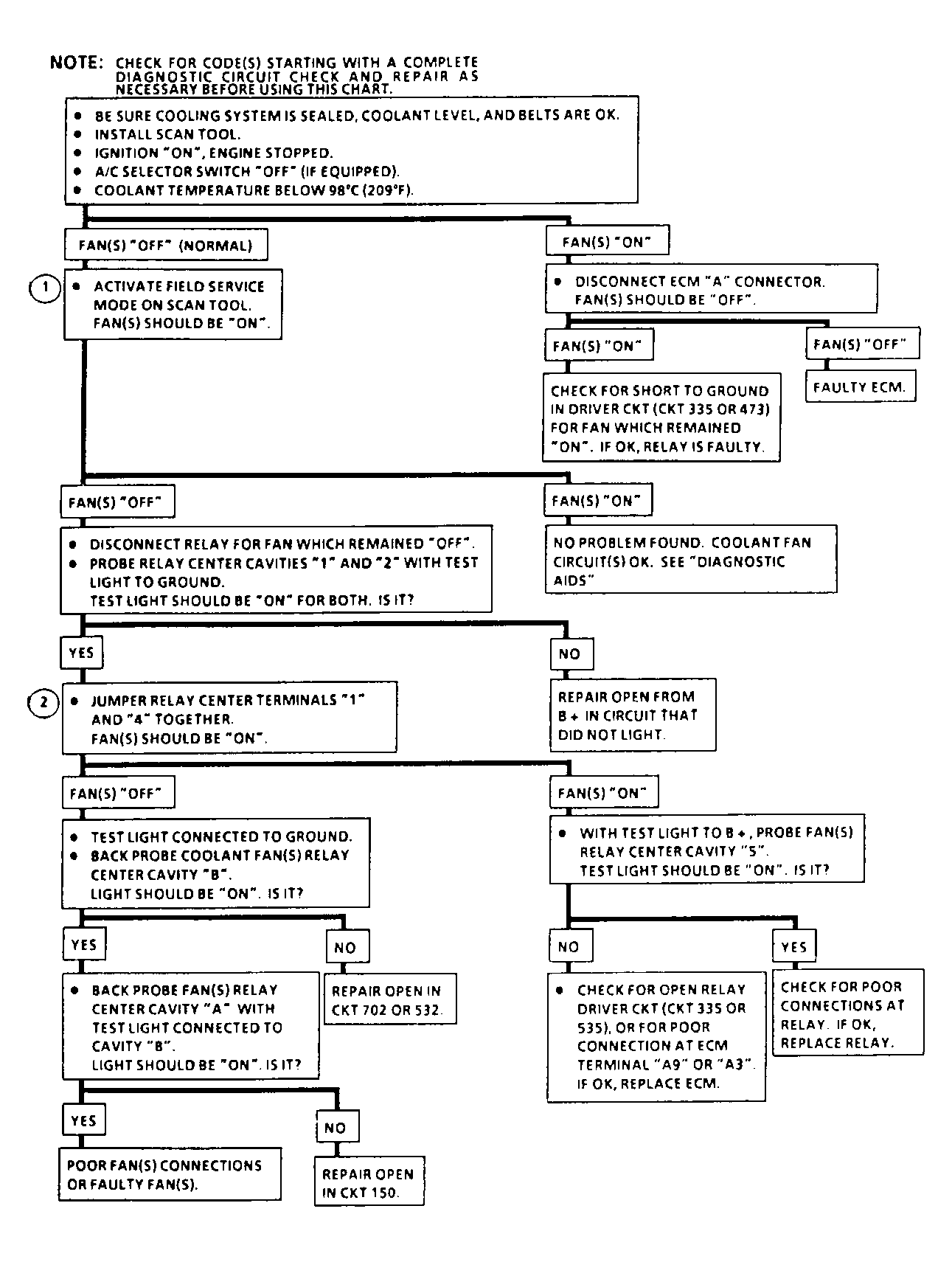

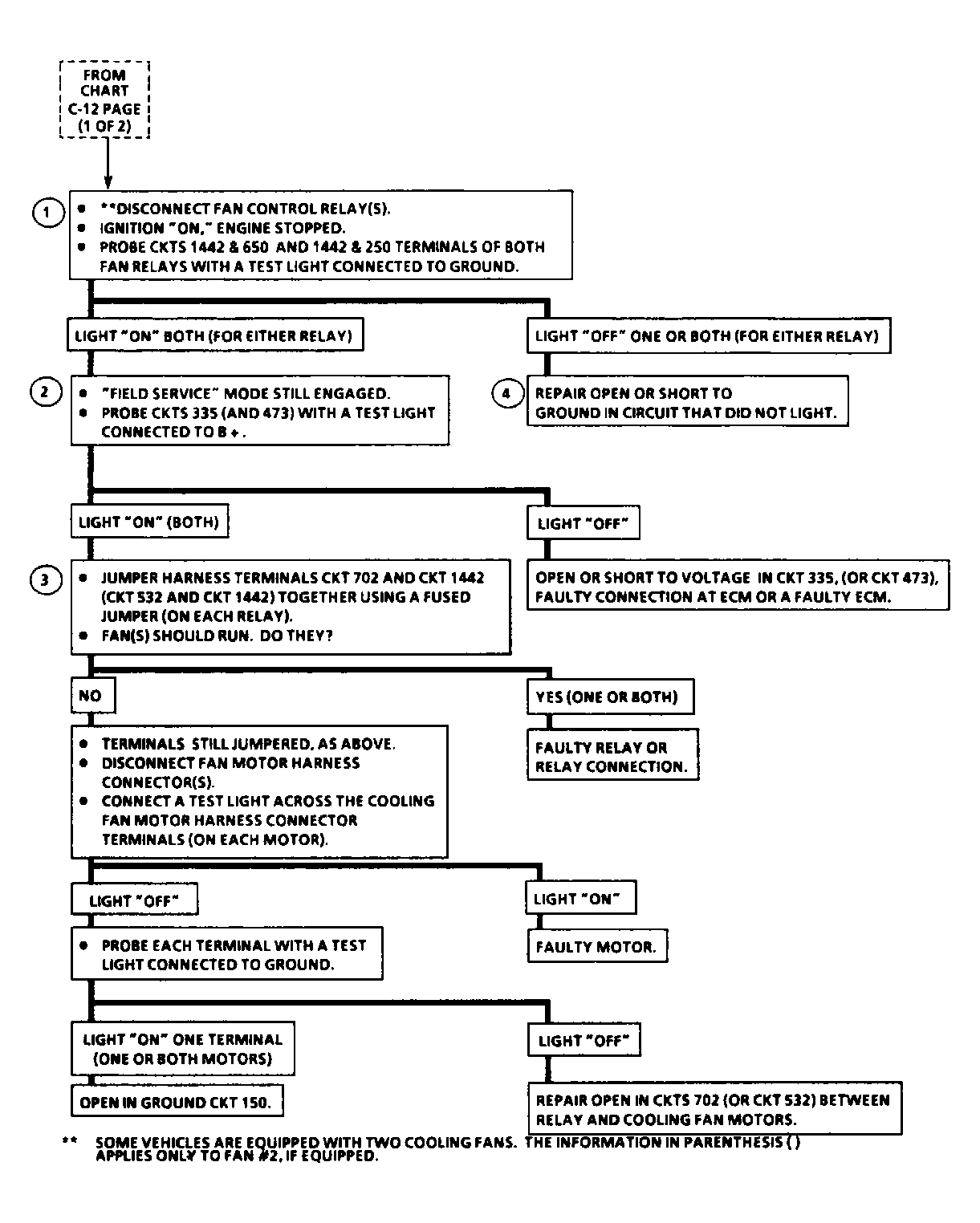

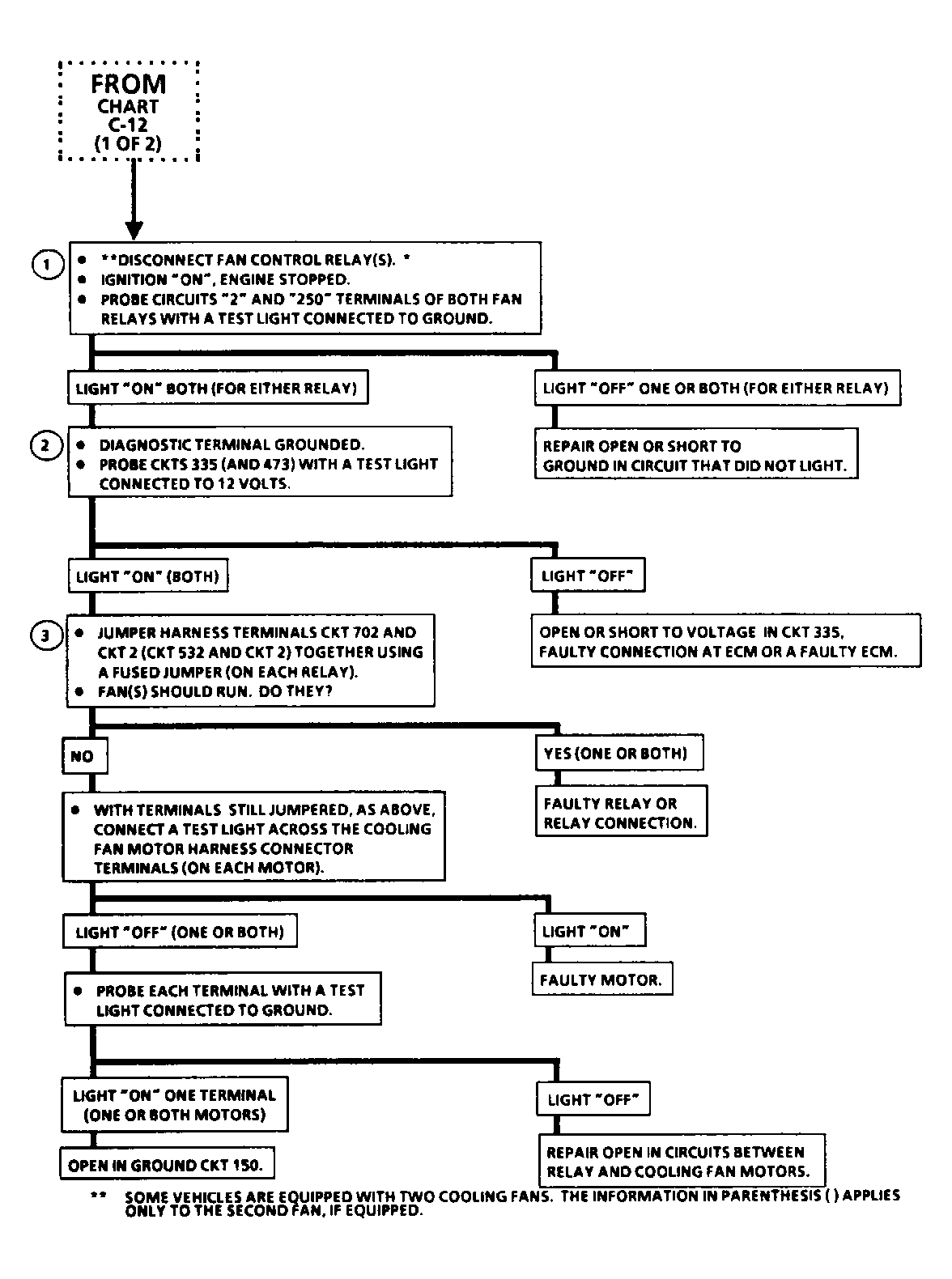

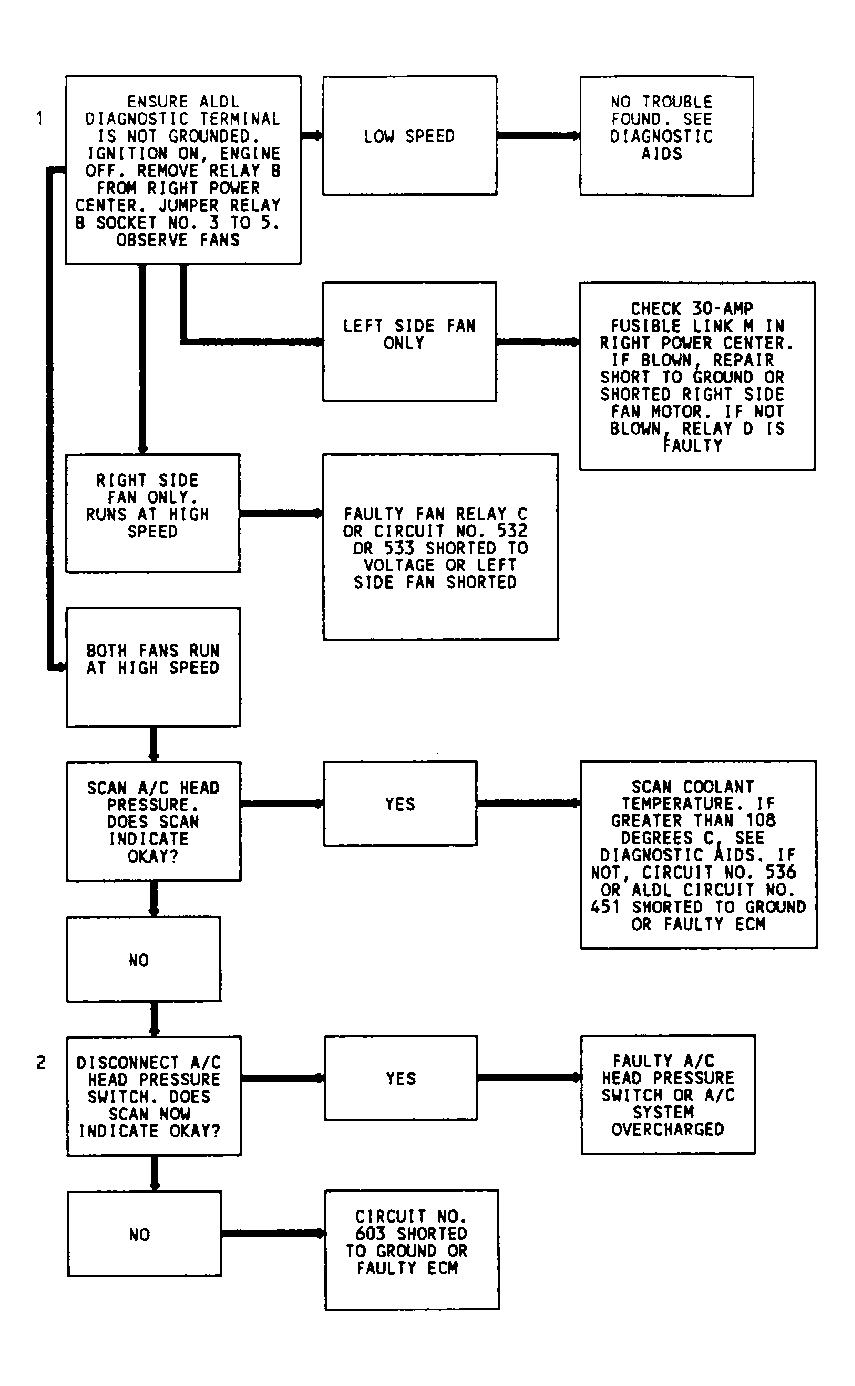

See trouble shooting charts for cooling fan diagnosis.

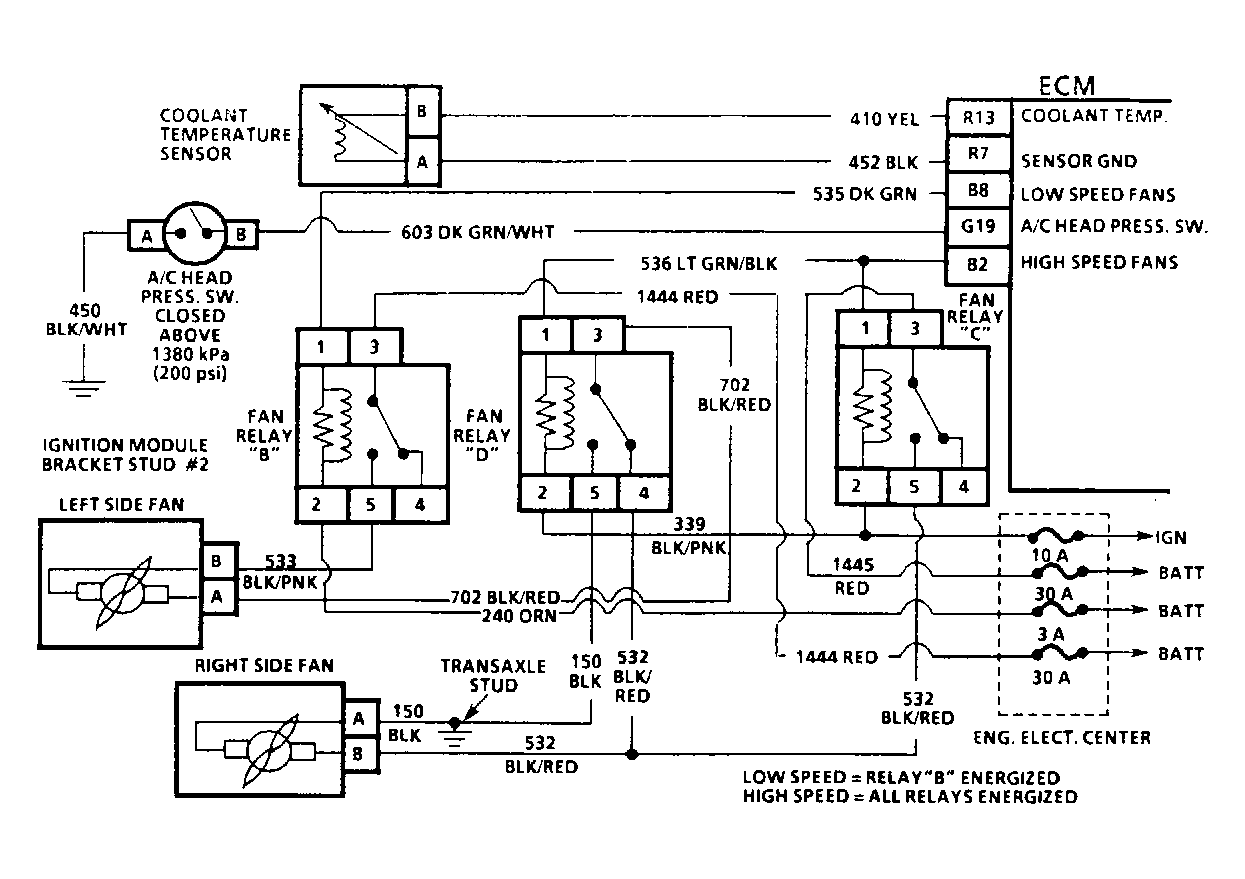

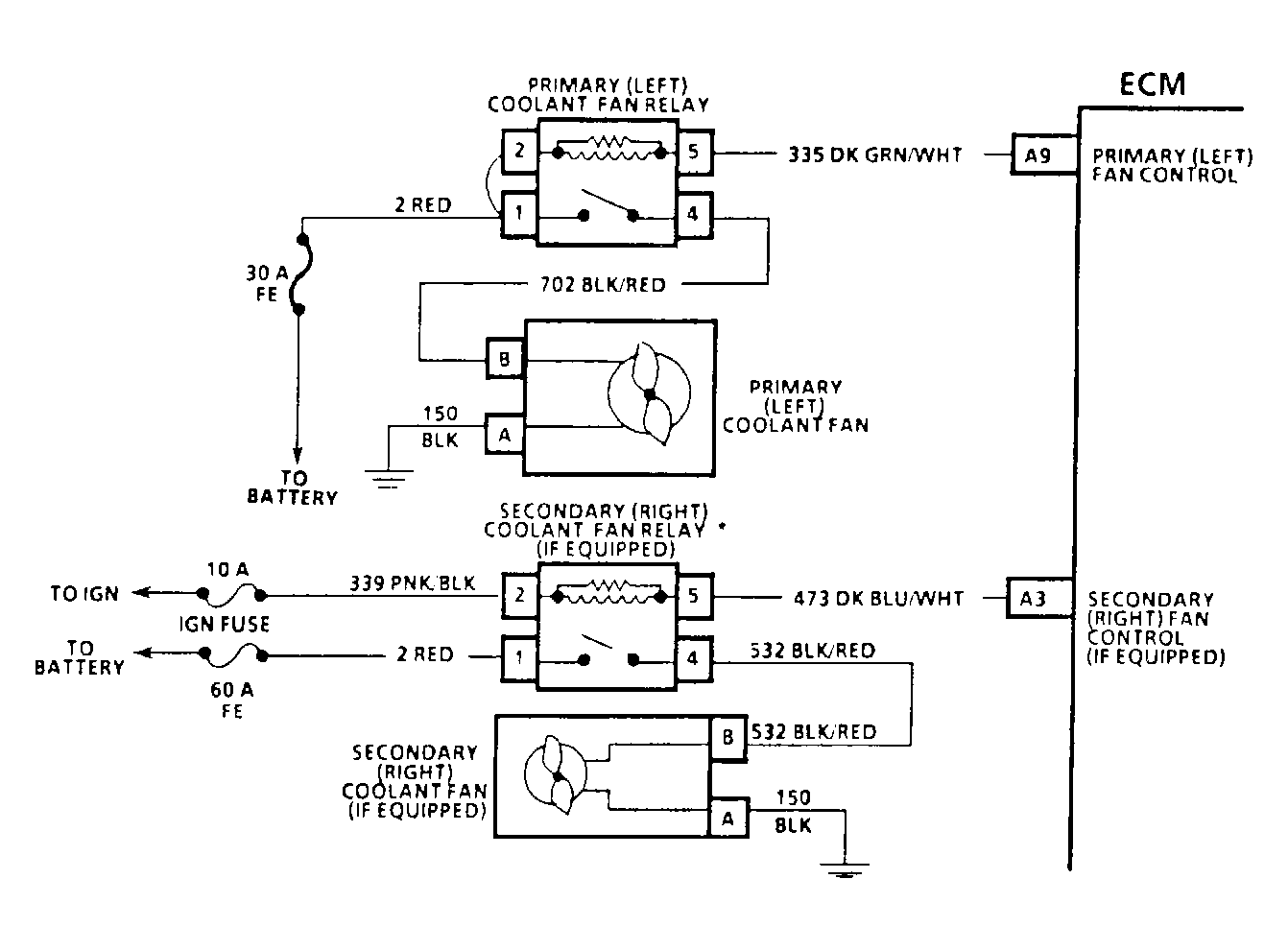

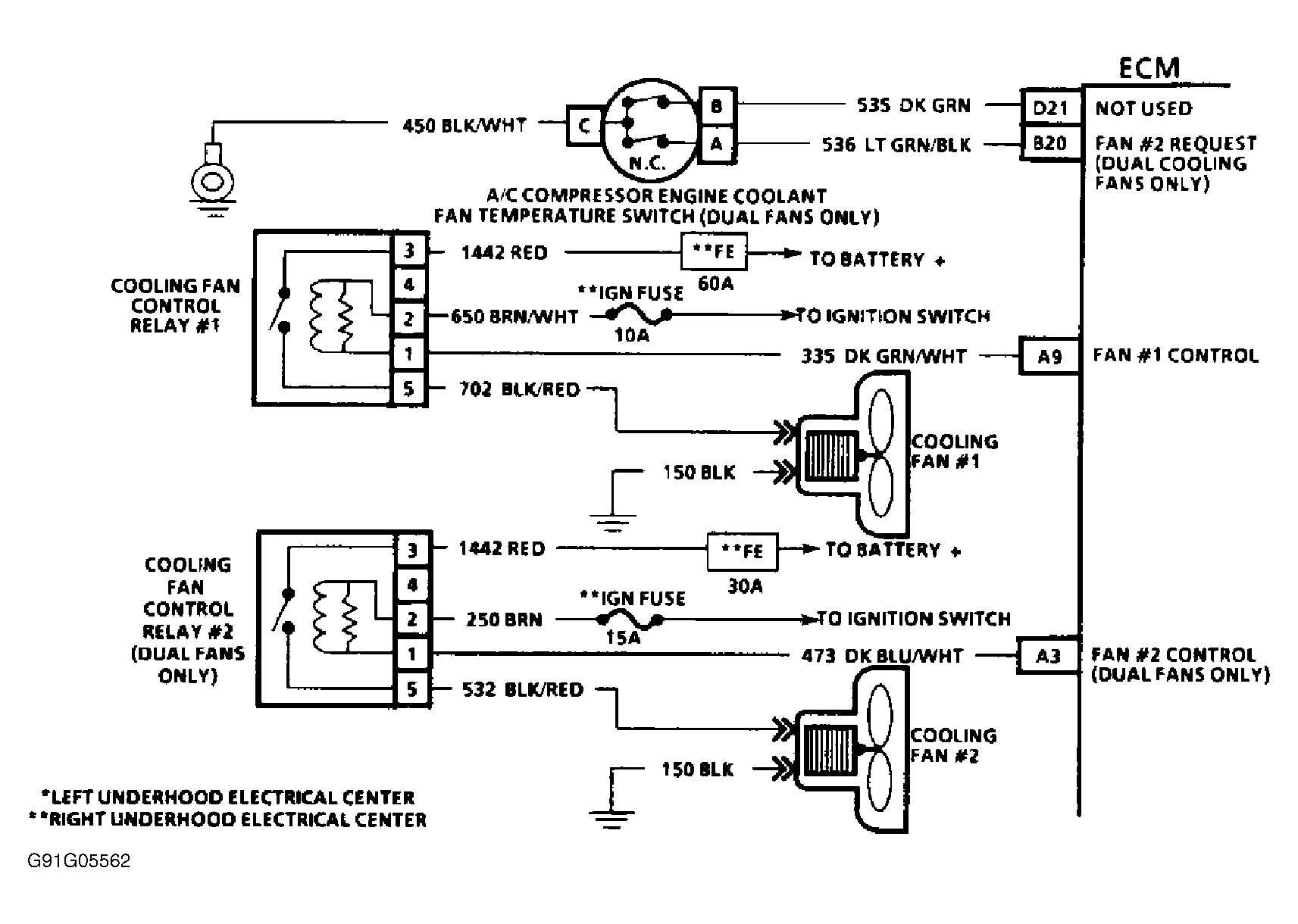

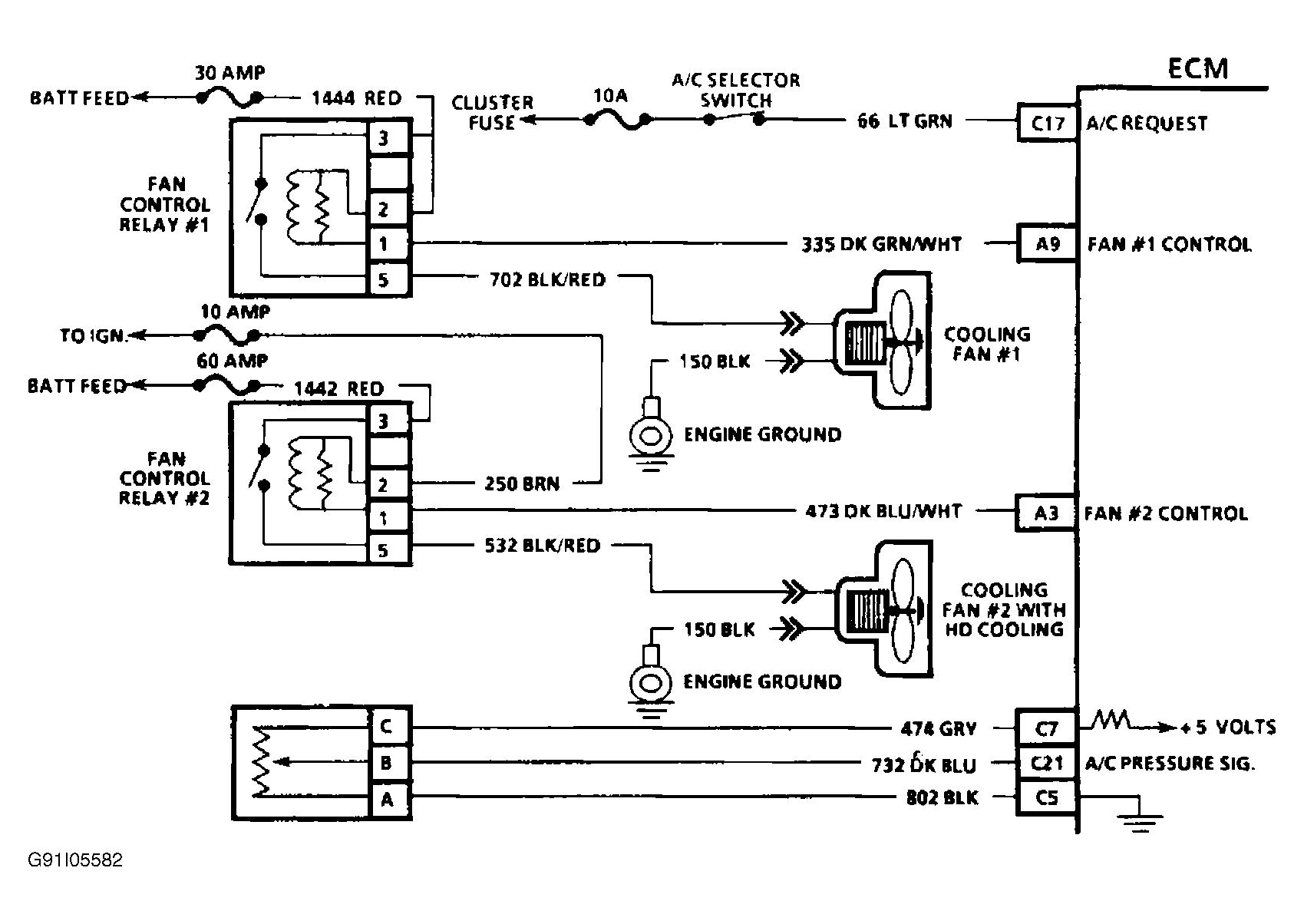

COOLING FAN CHART INDEX

Application Figure Nos.
2.3L (VINs A & D) Figure-Figure
2.5L (VIN R) Figure-Figure
3.1L (VIN T) Figure-Figure
3.4L (VIN X) Figure-Figure
3.8L (VIN L) Figure-Figure
