Window Guide - On Glass: Installation

  1. Heat guide with hot air gun or soak in hot water for about one minute.
  2. Guide to glass by aligning to hole in glass and carefully press guide together as fastener location.
  3. Install window glass. See WINDOW ASSEMBLY  .

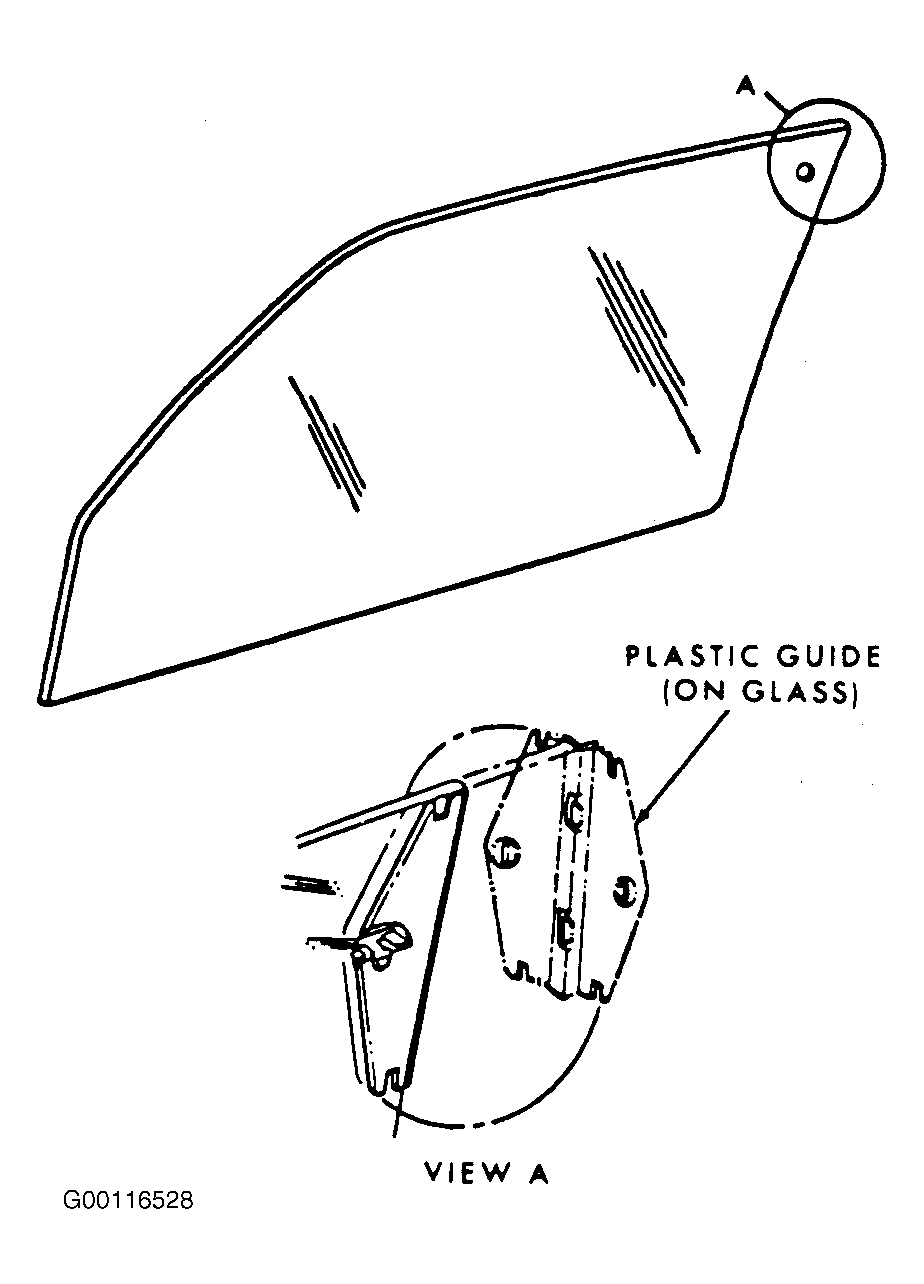

Fig 1: Removing Front Door Glass Guide
G00116528Courtesy of GENERAL MOTORS CORP.
