Pull Handle: Installation

  1. Install pull strap handle (61). See Fig 1 .
  2. Install screws (59) connecting pull strap handle (61) to door trim panel (2). Snap covers (60) in place over screws (59).

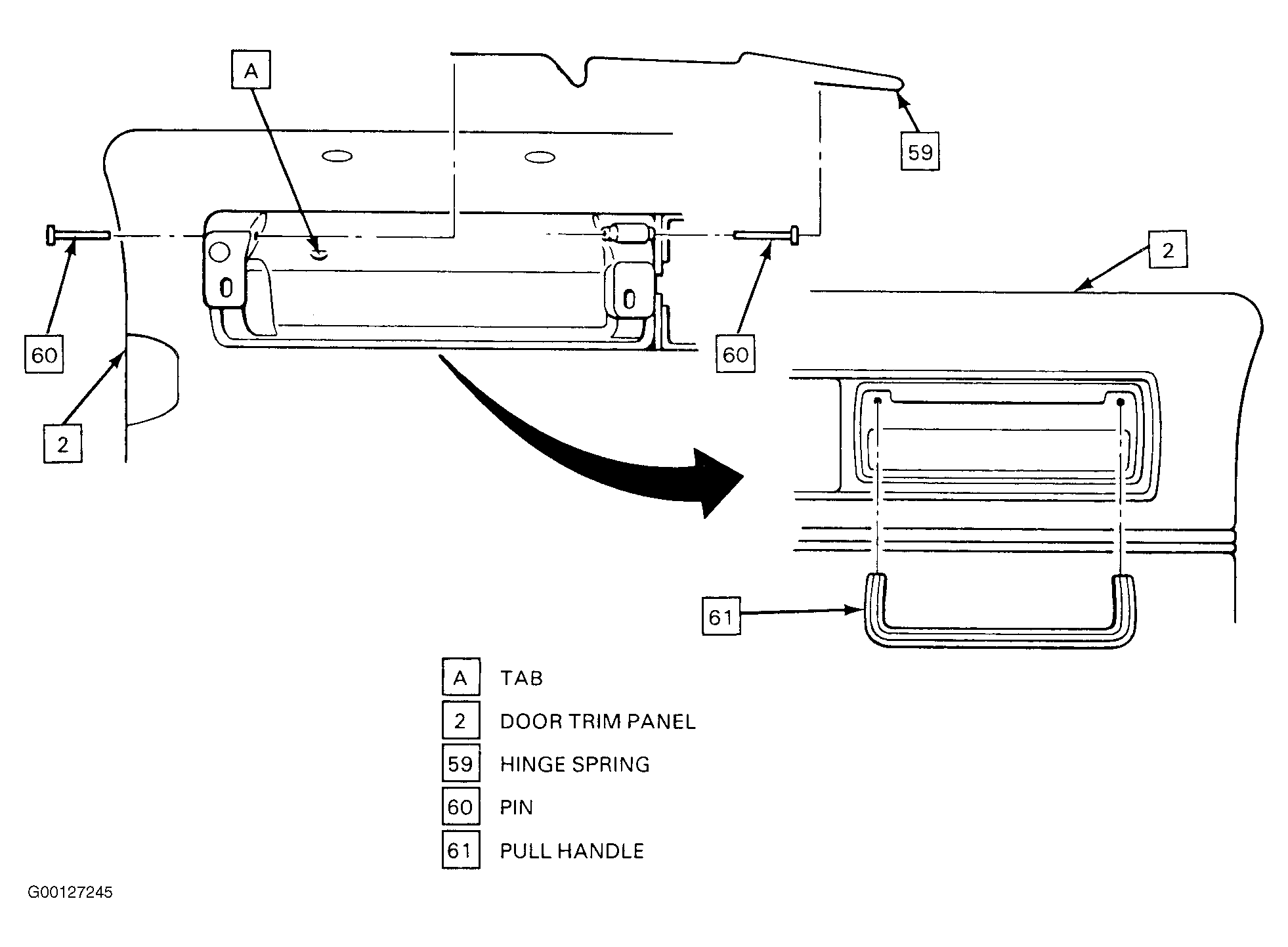

Fig 1: Identifying Pull Handle
G00127245Courtesy of GENERAL MOTORS CORP.
